BMW 1 Series 3D-printable parts

Cup holder developed and physically installed for a first-generation BMW 1 Series interior. The retained files are the latest creator-supplied right- and left-hand supported variants; earlier revisions are preserved in the source archive but are not submitted. Use a heat-resistant cabin material and confirm local clearance before driving.

Three-piece service-tool set for BMW N42, N46, and N46T engines: intake camshaft lock, exhaust camshaft lock, and the creator's strengthened M8-bolt VANOS gear counter-holder. The creator reports using the tools repeatedly and revised the counter-holder for the specified tightening procedure. This is an engine-specific workshop aid, not a substitute for BMW service information: inspect every print before use, follow the applicable repair procedure and torque sequence, and stop if any cracking or deformation is visible.

Direct replacement cap for the automatic-headlight rotary switch used in BMW E82 and E88 1 Series, E90/E91/E92/E93 3 Series, and E84 X1 interiors. The keyed hex and rotation stop reproduce the functional interface, and the creator shows the printed knob installed. Reuse the original switch mechanism; no complete headlight-switch assembly is included.

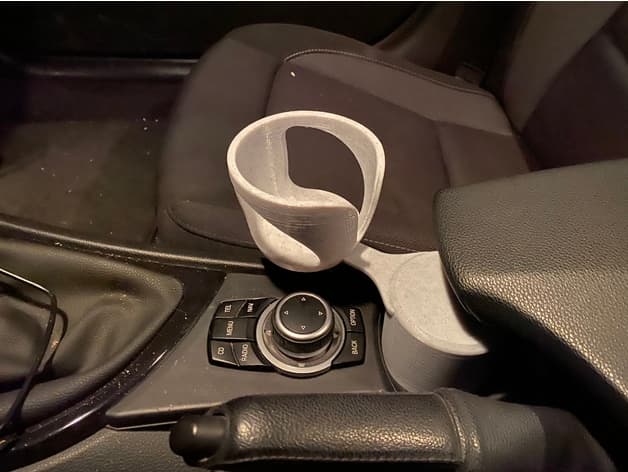

Three-piece cup-holder assembly tested in a 2010 BMW E87. It relocates the drink above the original low cup recess so taller containers can be used without the armrest interfering. The retained package contains the adapter, bridge, and cup cradle. Use a heat-resistant cabin material and verify secure engagement before driving.

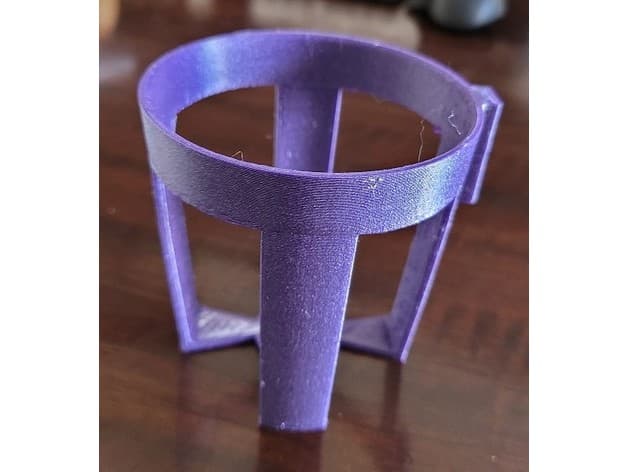

Two-piece removable cup holder for early BMW 1 Series door pockets. A separate interference-fit hook supports the holder in the door pocket; the creator sized it for takeaway cups and drinks cans and supplied a physical print photograph. Print in PETG or ABS for cabin heat resistance and confirm retention before driving.

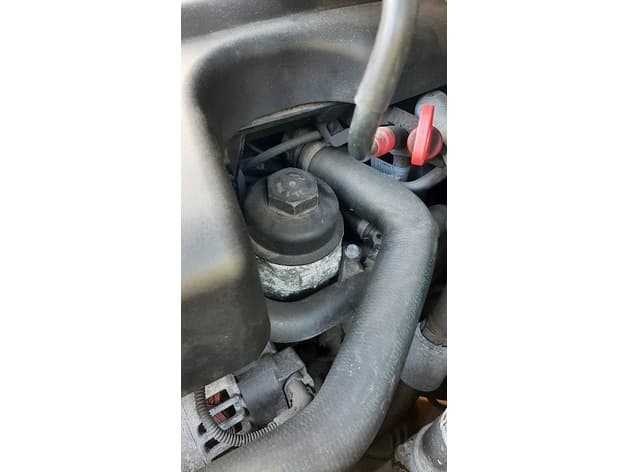

36 mm, half-inch-drive oil-filter housing socket physically tested on the M47 diesel engine in a BMW E87 1 Series. The creator printed it at 90% infill, shows it seated on the filter cap, and reports successful use. Use a tough material, inspect the drive and hex surfaces before use, and replace the print if it shows cracking or rounding.

Two-piece replacement for the left dashboard air-vent position in a BMW E87, combining the vent housing with a round gauge/display holder. The creator's gallery shows the assembly installed in the vehicle. Confirm the instrument diameter and preserve safe driver visibility before installation.

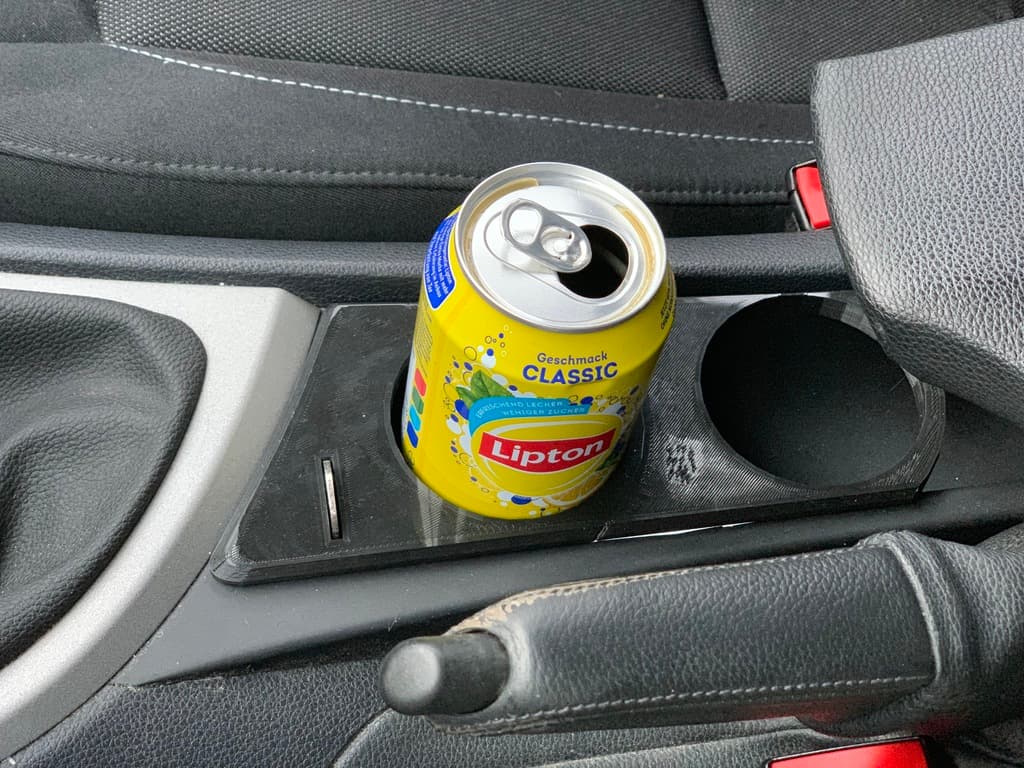

Cup holder and 50-cent shopping-token recess for left-hand-drive first-generation BMW 1 Series centre consoles that lack the factory holder. The creator installed the printed assembly with double-sided tape and reports secure use. Both the single-piece model and the split top/bottom alternative are retained. PETG or ABS is recommended for summer cabin temperatures.

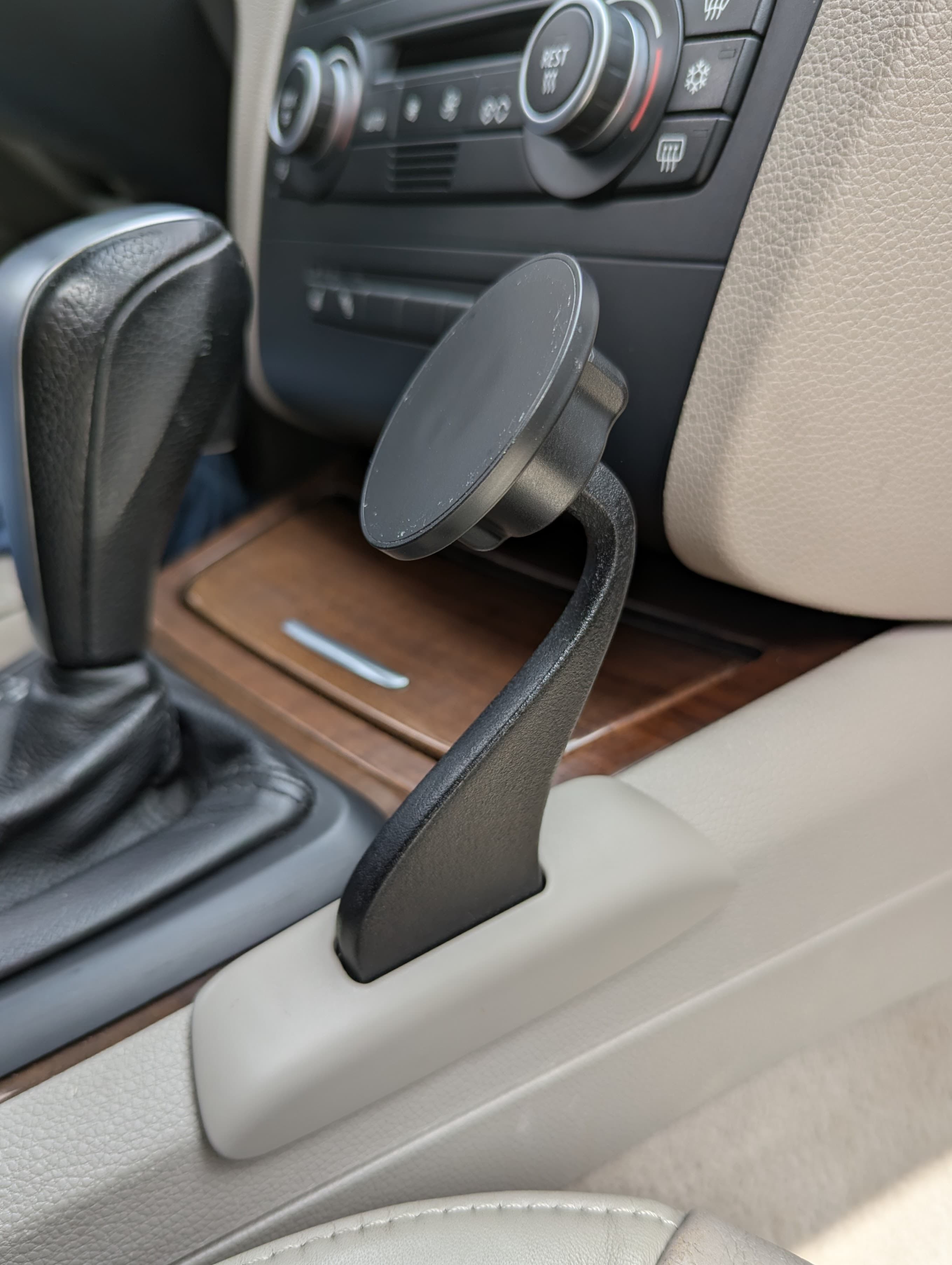

Phone-mount bracket for the factory accessory cup-holder socket in BMW E81, E82, E87, and E88 interiors. The current creator photographs show the bracket installed with a circular magnetic phone interface and also show the loose physical print. Only the bracket is included; choose compatible phone hardware and confirm that the device does not obstruct controls or driver visibility.

Measured replacement door-lock knob for a BMW F20 1 Series. The creator modeled the original knob directly, printed it, and shows the replacement installed on the door lock pin. Confirm the bore and free lock movement before use.

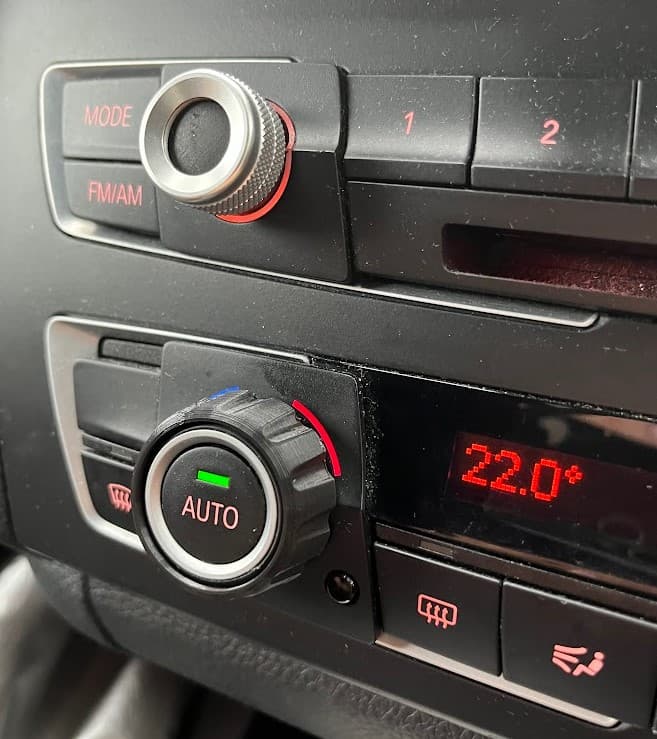

Press-fit cover for the deteriorating climate-control rotary knob in a 2013 BMW F20 1 Series. The creator refined the fit through five iterations and shows the cover installed over the original knob. Use a cabin-temperature-resistant material and check that the control rotates without binding.

Low-profile 17 mm ball mount developed for the BMW F20 1 Series center-console side panel. The creator attaches it with double-sided automotive foam tape, shows it installed with a phone holder, and reports no problems in use. Print in ASA, ABS, or another cabin-temperature-resistant material and keep the device clear of controls and driver sight lines.

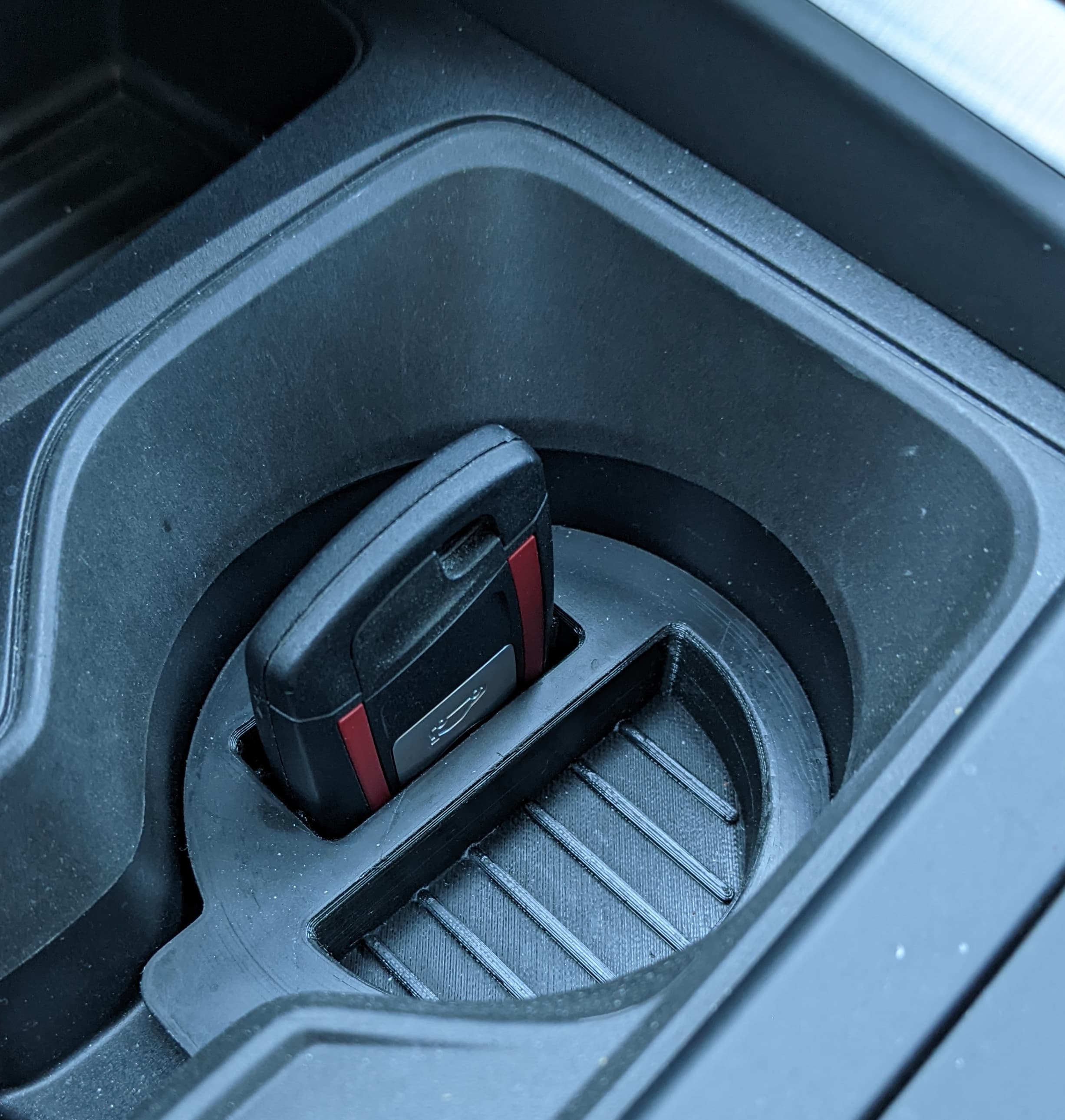

Two-piece key tray shaped for the BMW F20 and F21 1 Series cup holder. The body and upper tray are bonded after printing, and the creator shows the assembly installed both empty and holding a key. Use a heat-resistant cabin material and verify that the tray remains secure before driving.

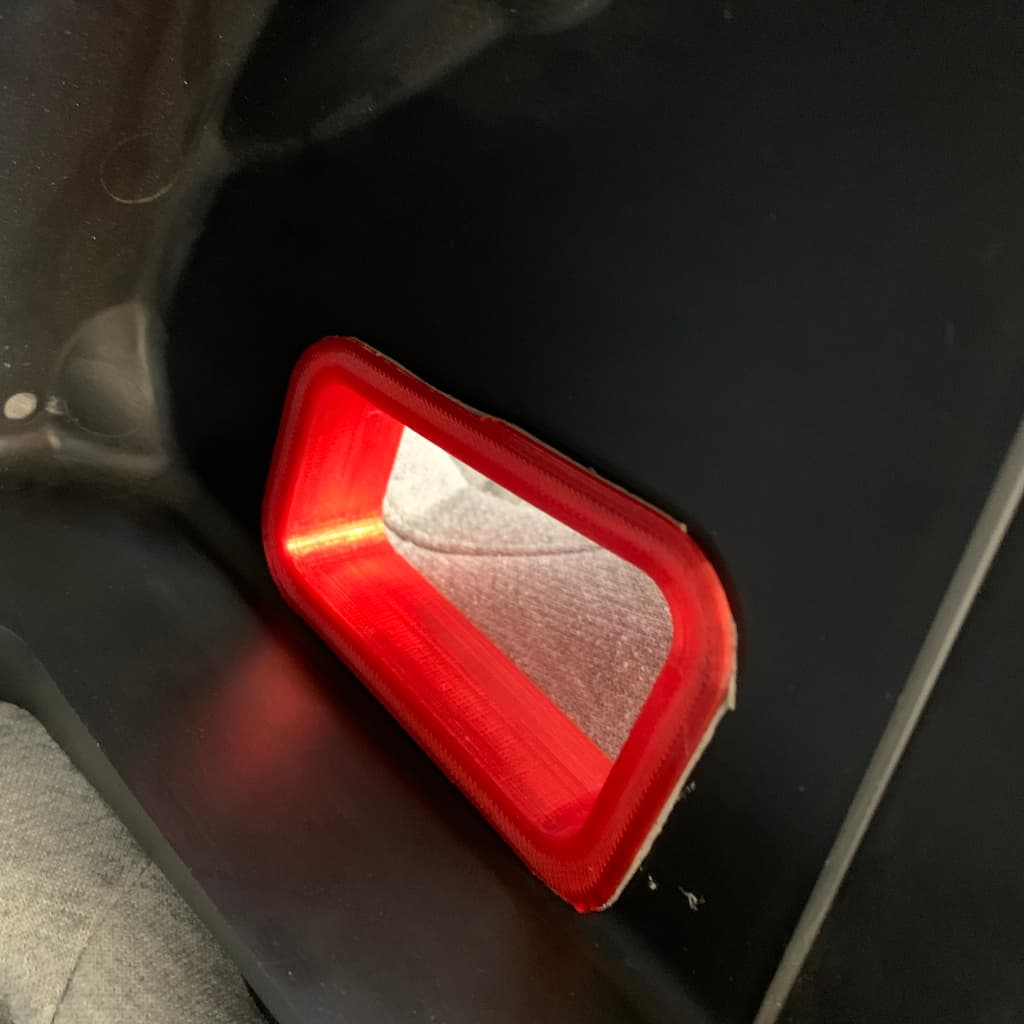

Two-piece intake opening developed and physically fitted to the airbox of a BMW F20/F21 1 Series. The creator states that it is intended to add intake sound, not power; the cutting profile and finished insert are both included. Keep the factory filter path intact, use an engine-bay-temperature-resistant material, de-burr the airbox opening, and inspect the installation for secure retention and contamination paths before running the engine.

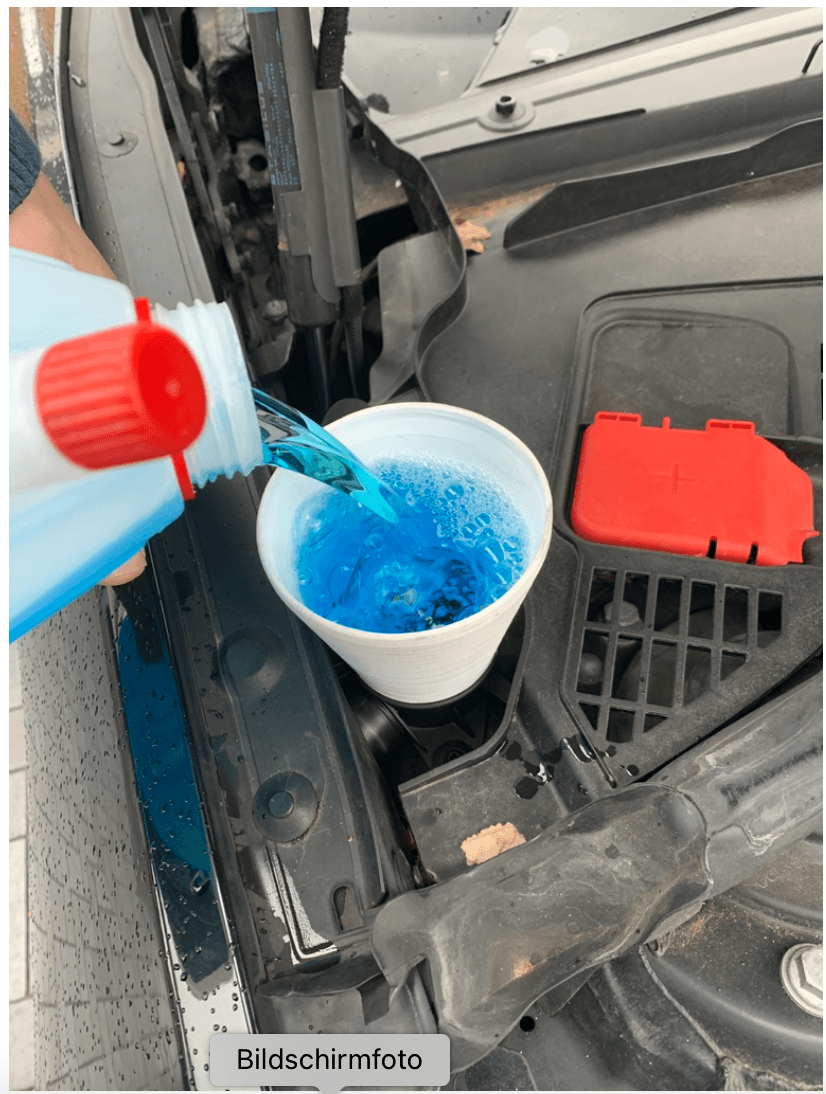

Reusable washer-fluid filler funnel for the BMW F20 filler neck. This revision adds an O-ring groove for a stable, sealed seat, and the source image shows the printed funnel in use while filling the reservoir. Select a fluid-compatible material and remove the funnel before closing the bonnet.

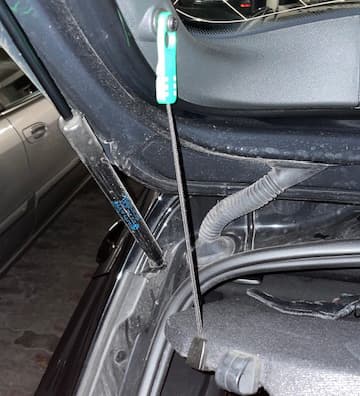

Two-piece clamp eyelet that repairs a broken parcel-shelf lifting cord on a BMW F20 LCI II without replacing the complete shelf. The creator shows the installed repair and supplies an original-project file alongside the printable mesh. Cut the cord only after confirming final length; use fine layers, verify that the clamp closes fully, and add adhesive if needed.

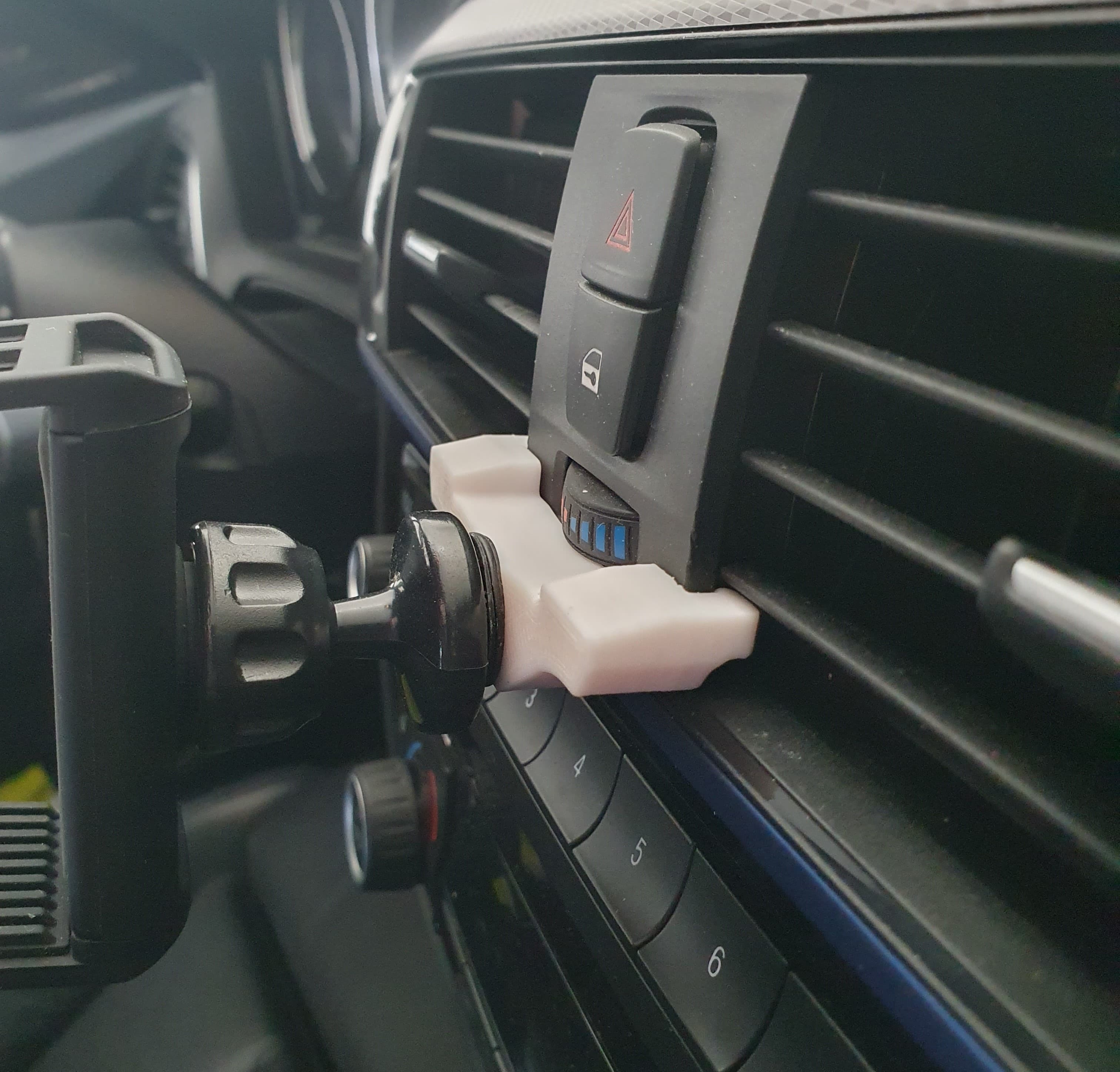

Adapter that clips around the BMW F20 center ventilation grille and accepts the creator's screw-mounted phone cradle. Multiple source photographs show the current revision installed. Use ASA, ABS, nylon, or another high-temperature material; inspect the clips for cracking and ensure the phone does not obstruct controls, airbag deployment, or driver visibility.

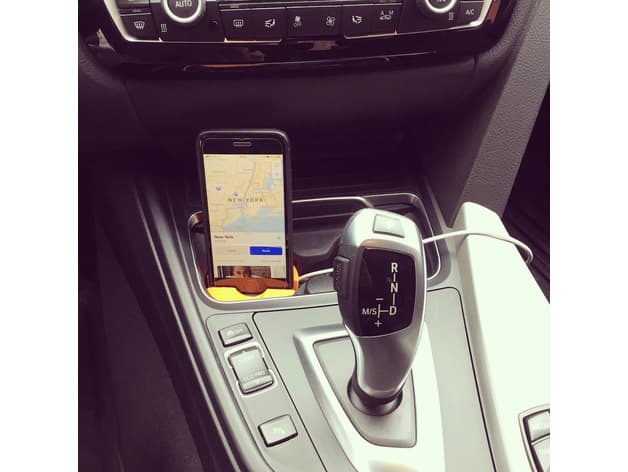

Cup-holder phone stand with a Lightning-cable passage, documented by the creator for BMW F20 1 Series and F30/F31 3 Series interiors. The gallery shows the stand installed, holding phones, and routing the charge cable. Add a thin foam or rubber liner as suggested, use a heat-resistant cabin material, and confirm secure phone retention before driving.

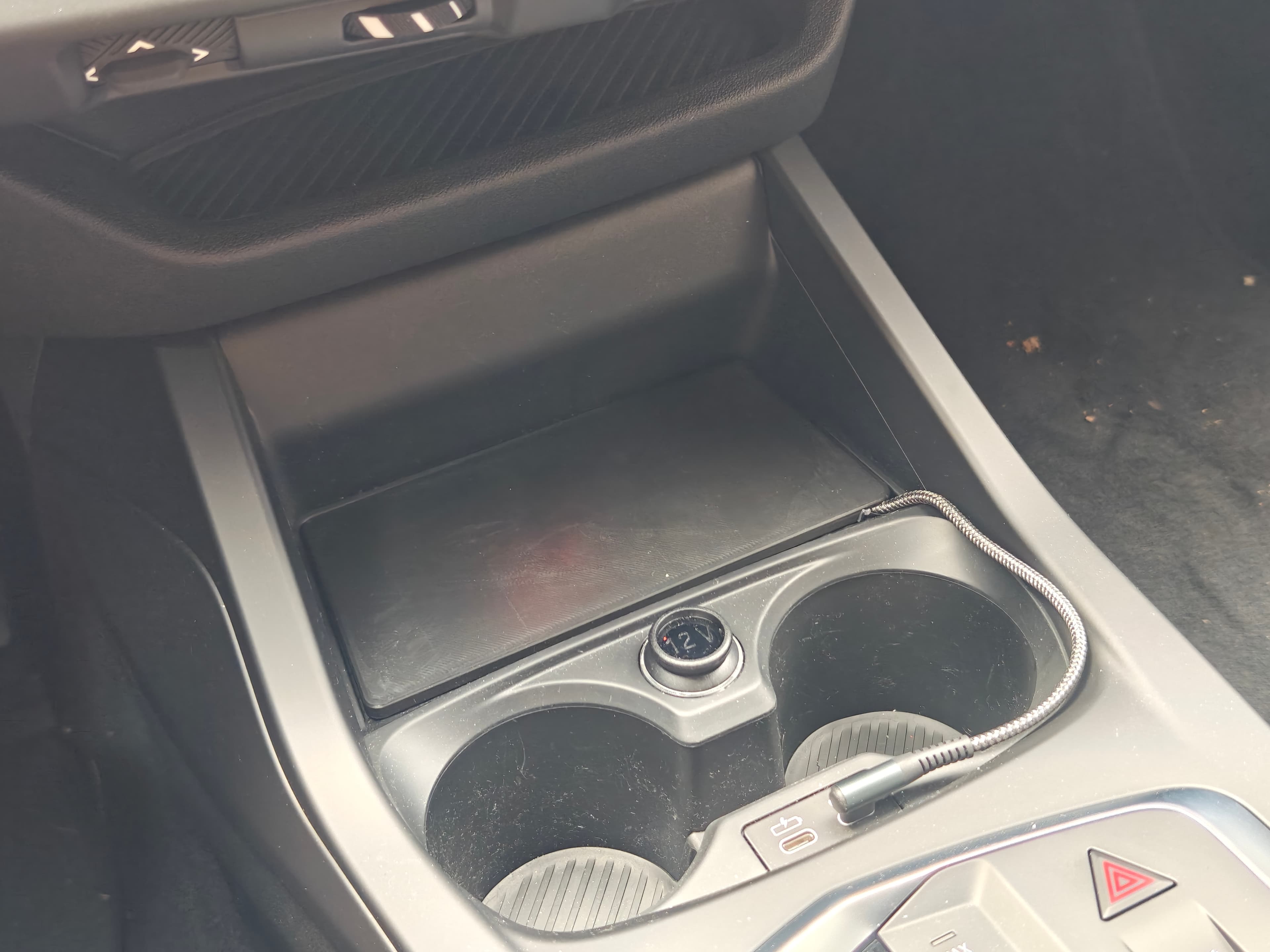

Custom-fitted charging pad for the center-console storage recess of the BMW 1 Series F70 (2024 onward). The creator shows the finished pad, its underside with the charger electronics, and the completed installation in an F70. It requires an INIU 15 W Qi charger, careful disassembly, and a shortened USB-C lead soldered to the charger PCB. Use a heat-resistant material, have the electrical work performed by a competent person, insulate and strain-relieve all connections, and stop use immediately if the charger or phone overheats.

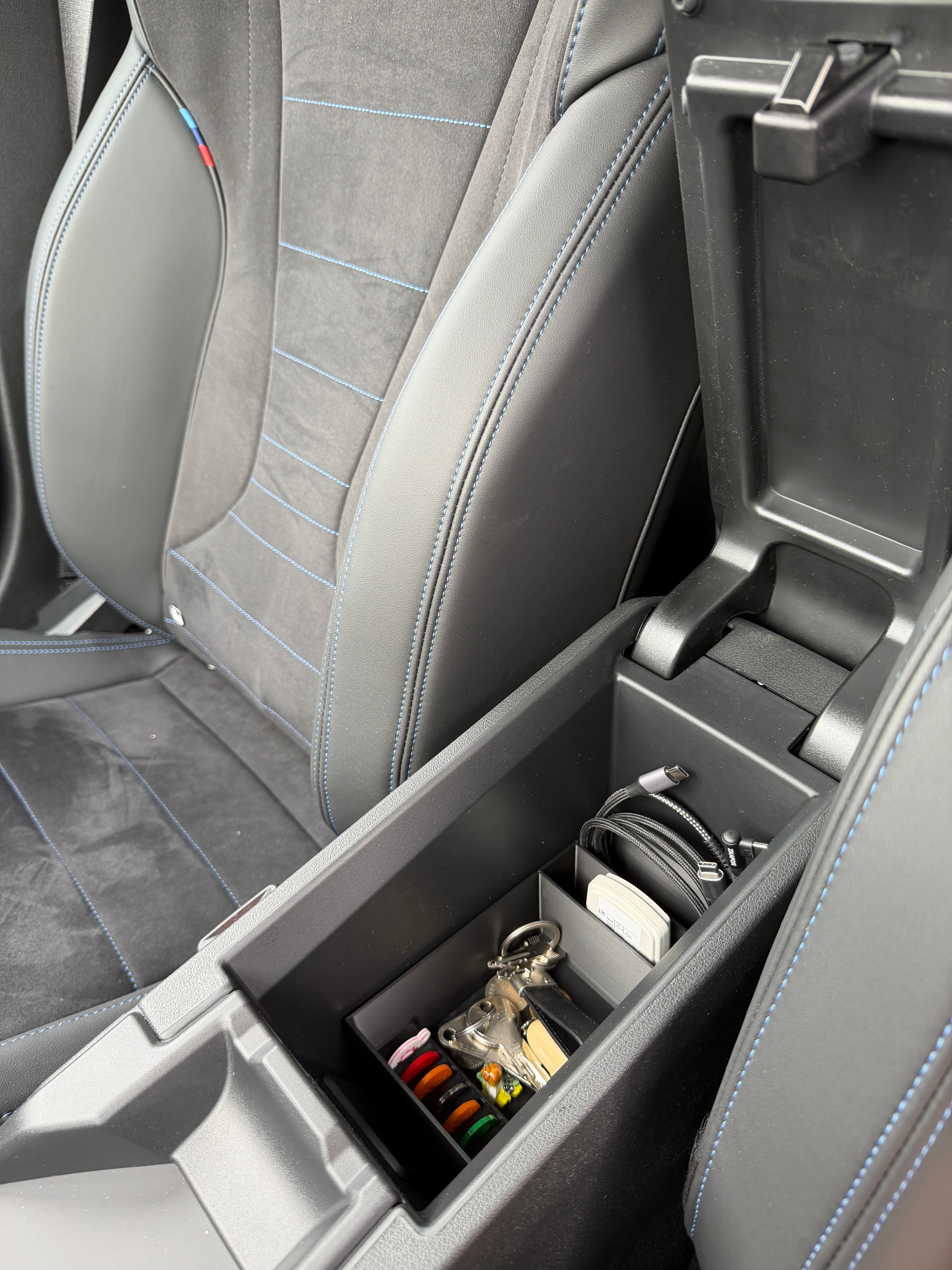

Drop-in organizer tray for the deep center-armrest storage compartment of the BMW 1 Series F70 (2024 onward). Dedicated sections hold coins, keys, charging cables, and a French motorway toll tag. The creator's photographs show the printed organizer installed in the armrest and loose for inspection. Use a cabin-temperature-resistant material and confirm that the armrest closes and latches normally without pinching cables.

Round and splined clutch-alignment tool variants designed for BMW N55 cars with the GS6 manual transmission. The creator printed the tool for a 2015 F22 M235i clutch replacement and verified the splined version during installation. Source fitment also names N55 E82, E9x, F3x, F10/F11, and F22/F23 cars. Use only on the specified engine/transmission combination, compare pilot and spline dimensions before use, and do not treat the printed tool as a torque-bearing service tool.

Replacement slider for the factory BMW wireless-charging cradle that increases usable phone length to approximately 168 mm. The creator documents F2x, F3x, F8x, and I01 cradle compatibility and shows the printed part installed and measured. Print in PETG, ASA, ABS, or another cabin-temperature-resistant material; verify latch engagement, charging operation, and secure phone retention before driving.

Flexible replacement for BMW rubber buffer 51466967605, creator-tested on an i3 and catalogued for F45, E81/E87, F20/F21, I01, and X1 E84. Print in approximately 85A TPU and cut out the temporary support tab after printing. Within the combined E8x generation, documented fitment is E81/E87 only.

Replacement clip for BMW door-sill/entry trim panels. The creator explicitly lists E21, E30, E36, E39, E46, E81/E82/E88, F20, E85 and related applications and identifies genuine BMW clip 51471840960. Verify the receiving-hole and trim thickness before fitting.

Contour spacer demonstrated with aftermarket side repeaters on BMW bodywork. The creator lists E36 from October 1996, E46 sedan/Touring, E60/E61, E81/E82/E87/E88 and E90–E93 applications. Test one side before mirroring and verify the repeater remains weather-sealed and positively retained.

Front intake air scoop for N55-powered BMW F30/F31 335i, F32-series 435i, F20/F21 M135i and F22/F23/F87 M235i/M2 applications listed by the creator. Use heat- and exterior-rated material and verify secure retention and unobstructed intake airflow before driving.

Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.
