Airbox Sound-Intake Insert

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYMechanical
PART RECORDREF 1050
PART
Airbox Sound-Intake Insert
OEM
FITS
1 Series F20 / F21
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1050QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
Plate 1 of 5
PLATE 01 / 05No caption recorded
Build sheet
MAN-1050
  • [01]cutting_profil.stl.STL
  • [02]powerkit_air_intake.stl.STL
  • [03]Bounding box85.000 × 58.131 × 30.798 mm
  • [04]Volume20,857.985 mm³
Field notes
BY ROHDRUCK

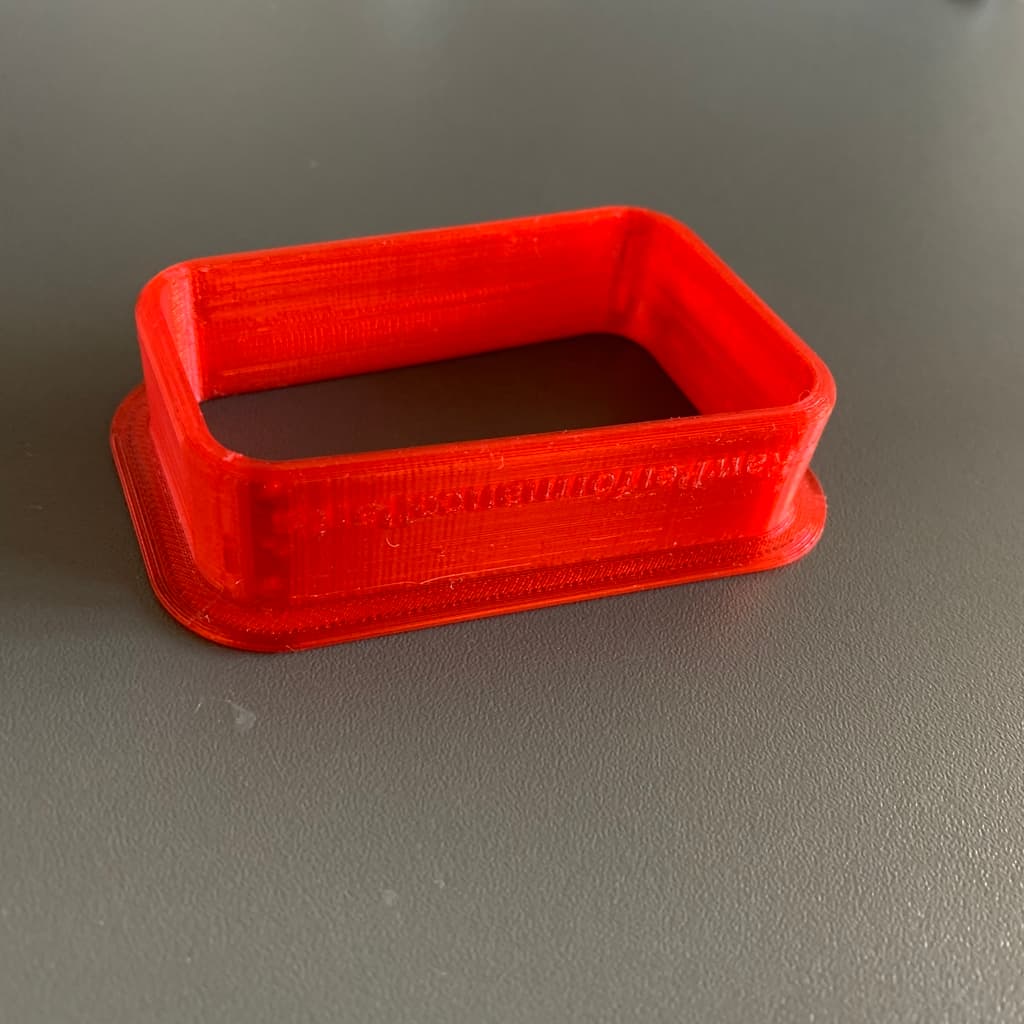

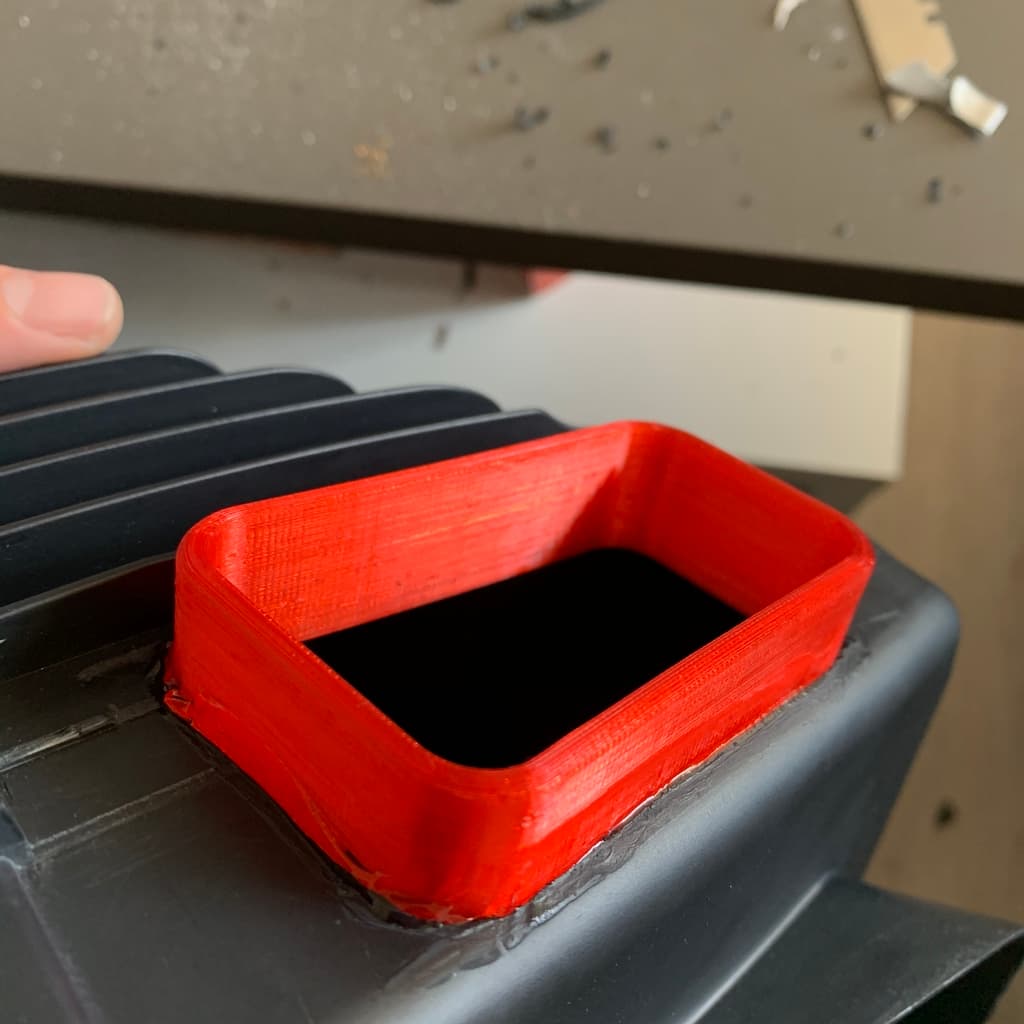

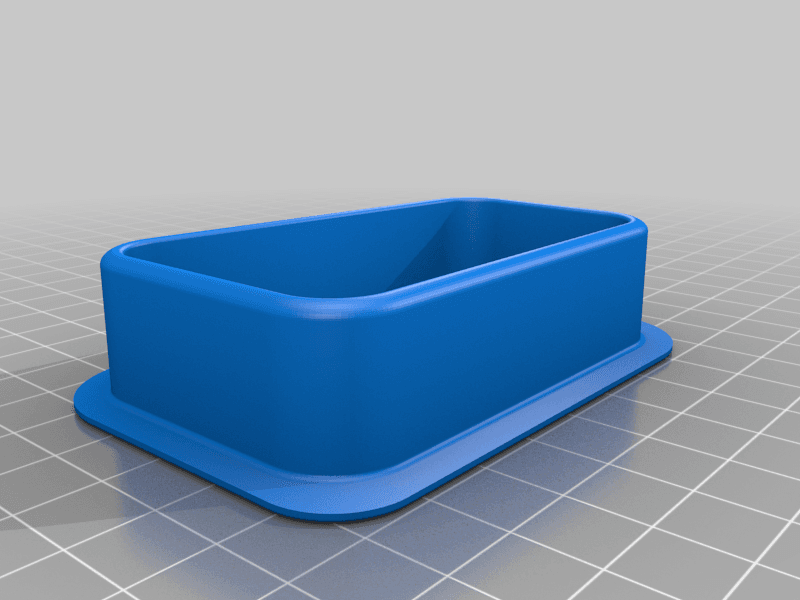

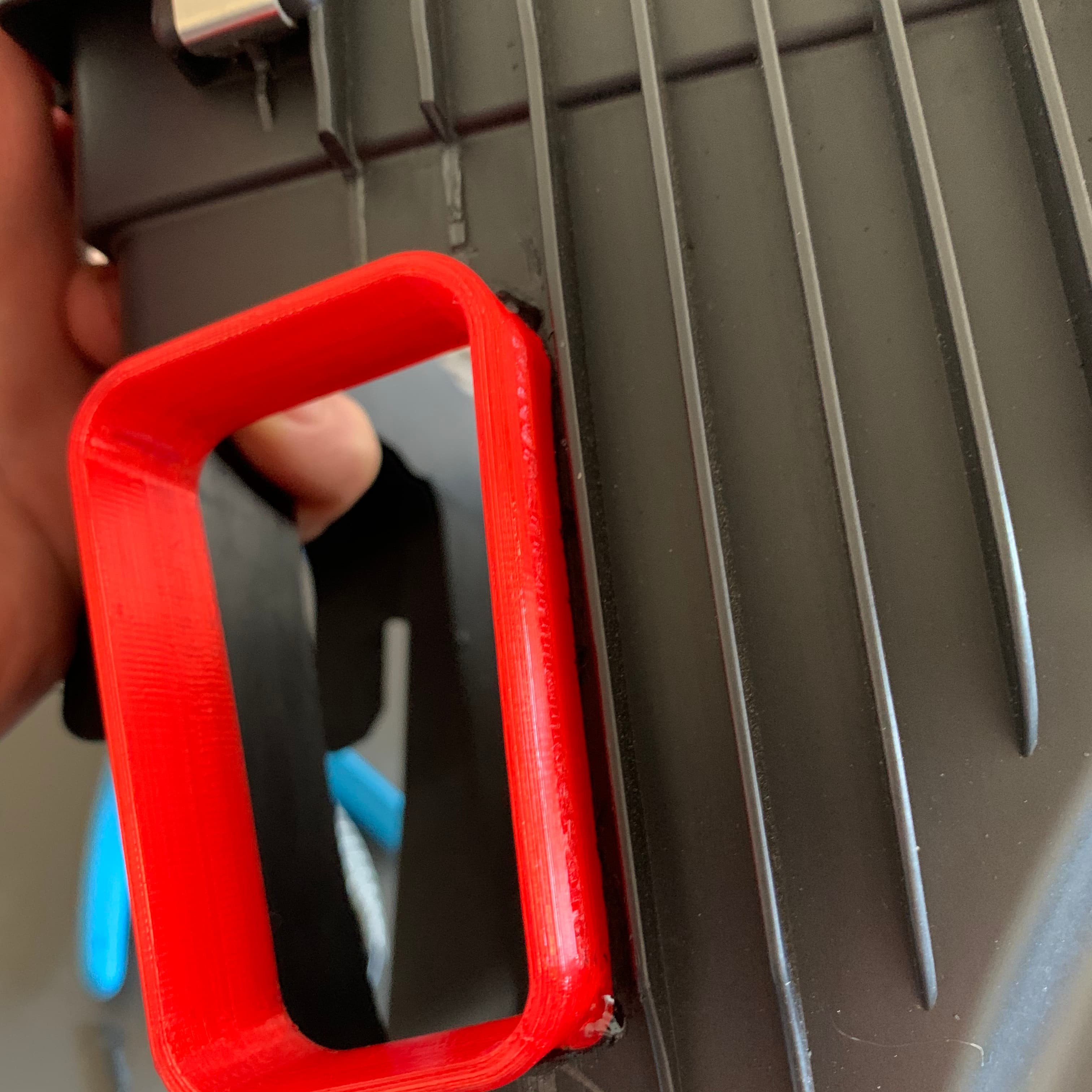

Two-piece intake opening developed and physically fitted to the airbox of a BMW F20/F21 1 Series. The creator states that it is intended to add intake sound, not power; the cutting profile and finished insert are both included. Keep the factory filter path intact, use an engine-bay-temperature-resistant material, de-burr the airbox opening, and inspect the installation for secure retention and contamination paths before running the engine.
