Armrest-Clearance Cup Holder

ABS · PETGMULTI-PART3 FILESCC-BY-NCInterior

PART RECORDREF 1040

PART: Armrest-Clearance Cup Holder
OEM: —
FITS: 1 Series E81 / E82 / E87 / E88

Loading 3D viewer...

PART ID · BIMMER-3D / 1040QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-1040

[01]Adapter_V3.stlAdapter_V3.stl.STL
[02]Steg_V3.stlSteg_V3.stl.STL
[03]Becherhalterung_V3.stlBecherhalterung_V3.stl.STL
[04]Bounding box157.464 × 130.000 × 85.976 mm
[05]Volume195,059.668 mm³

Field notes

BY JULIAN MÜNZBERG (JPHEISENBERG)

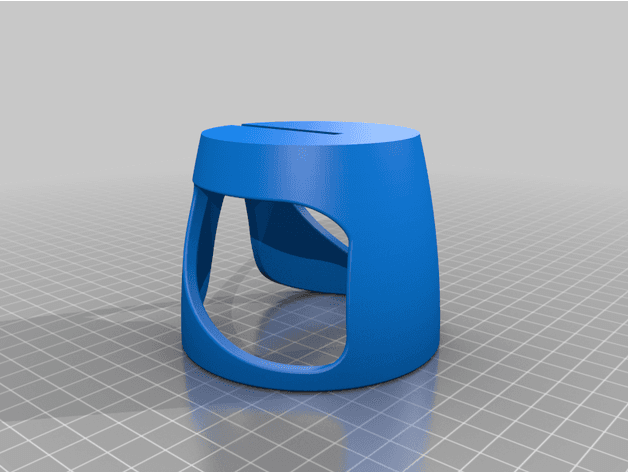

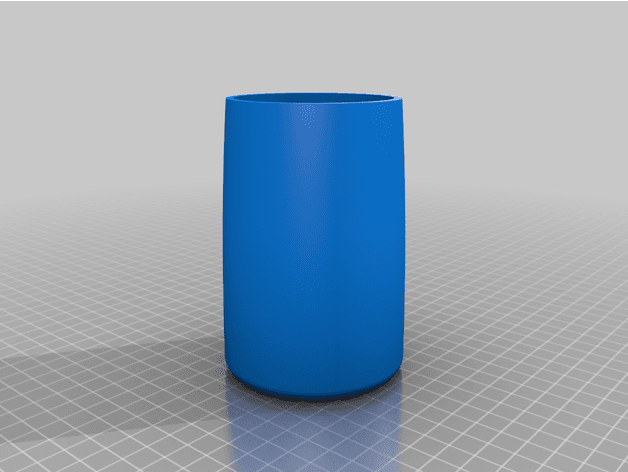

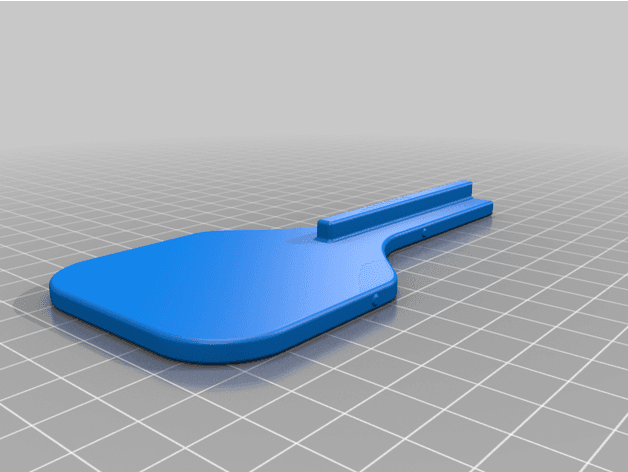

Three-piece cup-holder assembly tested in a 2010 BMW E87. It relocates the drink above the original low cup recess so taller containers can be used without the armrest interfering. The retained package contains the adapter, bridge, and cup cradle. Use a heat-resistant cabin material and verify secure engagement before driving.
