Left Air-Vent Gauge Holder

ABS · PETGMULTI-PART2 FILESPublic DomainDashboard

PART RECORDREF 1043

PART: Left Air-Vent Gauge Holder
OEM: —
FITS: 1 Series E81 / E82 / E87 / E88

Loading 3D viewer...

PART ID · BIMMER-3D / 1043QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1043

[01]e87-v-airvent.stle87-v-airvent.stl.STL
[02]gaugeholder.stlgaugeholder.stl.STL
[03]Bounding box110.910 × 78.579 × 60.820 mm
[04]Volume66,907.303 mm³

Field notes

BY NEWGARDEN

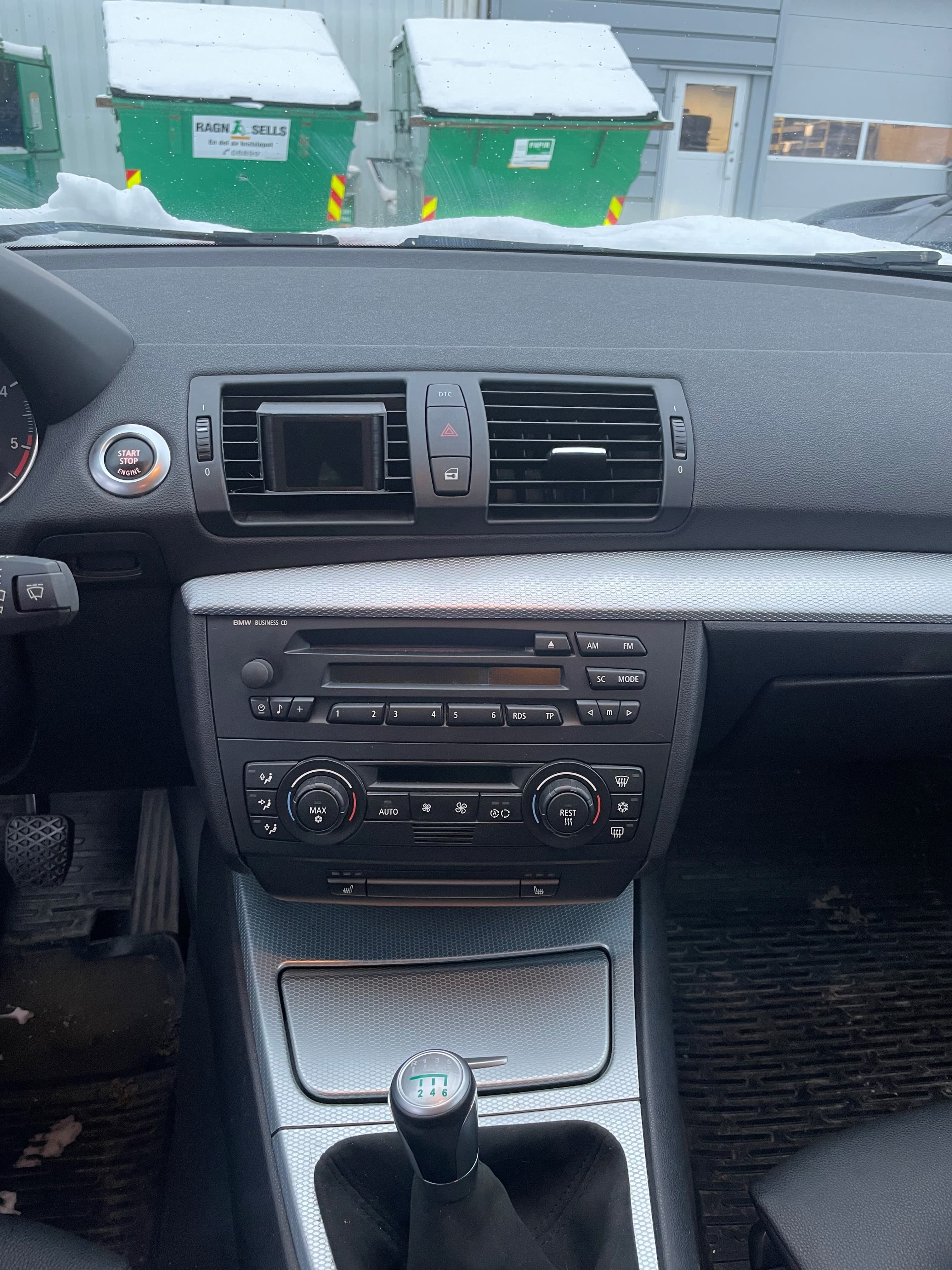

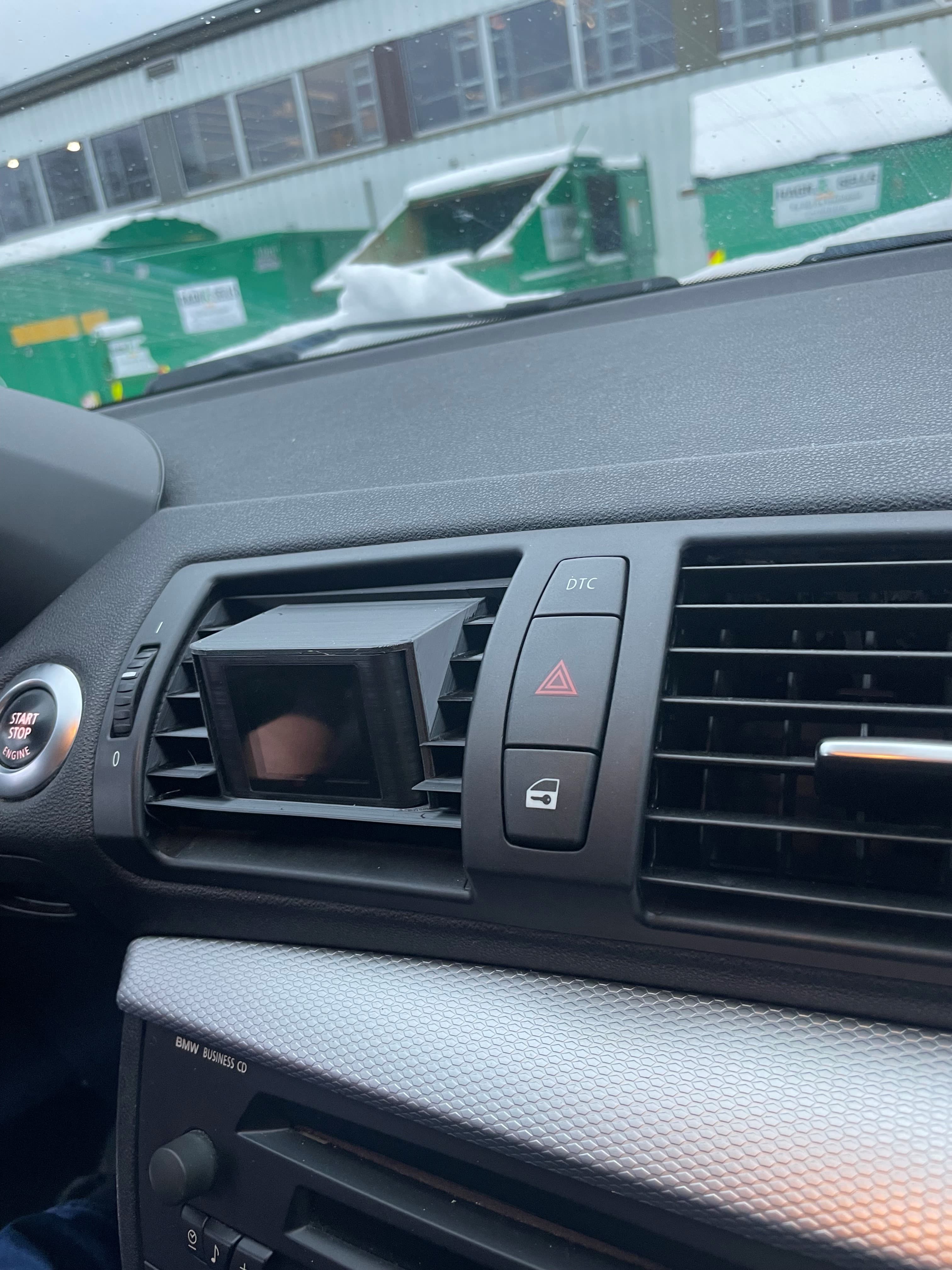

Two-piece replacement for the left dashboard air-vent position in a BMW E87, combining the vent housing with a round gauge/display holder. The creator's gallery shows the assembly installed in the vehicle. Confirm the instrument diameter and preserve safe driver visibility before installation.

View original source ↗
