N55 Manual Clutch-Alignment Tool
ABS · Nylon · PETG4 FILESCC-BYMechanical
- PART
- N55 Manual Clutch-Alignment Tool
- OEM
- —
- FITS
- 1 Series E81 / E82 / E87 / E88, 2 Series F22 / F23 / F87, 3 Series E90 / E91 / E92 / E93, 3 Series F30 / F31 / F34 / F80, 4 Series F32 / F33 / F36 / F82 / F83, 5 Series F07 / F10 / F11 / F18
Loading 3D viewer...
PART ID · BIMMER-3D / 1058QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
PLATE 01 / 03No caption recorded
Build sheet
MAN-1058- [01]SPLINED_N55_clutch_alignment_tool_v2.stlSPLINED_N55_clutch_alignment_tool_v2.stl.STL
- [02]SPLINED_N55_clutch_alignment_tool_v2.3mfSPLINED_N55_clutch_alignment_tool_v2.3mf.STL
- [03]N55_clutch_alignment_tool_v3.stlN55_clutch_alignment_tool_v3.stl.STL
- [04]N55_clutch_alignment_tool_v3.3mfN55_clutch_alignment_tool_v3.3mf.STL
- [05]Bounding box120.000 × 34.950 × 33.750 mm
- [06]Volume63,470.887 mm³
Field notes

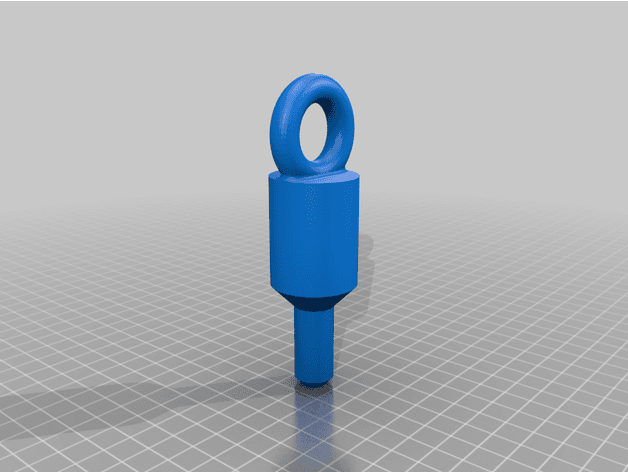

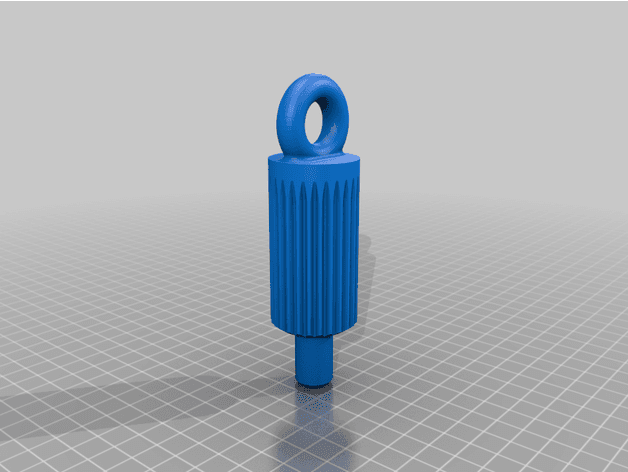

BY NICK SHIRRELL (NICKSHIRRELL)Round and splined clutch-alignment tool variants designed for BMW N55 cars with the GS6 manual transmission. The creator printed the tool for a 2015 F22 M235i clutch replacement and verified the splined version during installation. Source fitment also names N55 E82, E9x, F3x, F10/F11, and F22/F23 cars. Use only on the specified engine/transmission combination, compare pilot and spline dimensions before use, and do not treat the printed tool as a torque-bearing service tool.
