M47 Oil-Filter Housing Socket

Nylon · PETG1 FILECC-BY-NCMechanical
PART RECORDREF 1042
PART
M47 Oil-Filter Housing Socket
OEM
FITS
1 Series E81 / E82 / E87 / E88
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1042QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1042
  • [01]M47_Oil_Filter_Housing_Socket.stl.STL
  • [02]Bounding box50.000 × 50.000 × 35.000 mm
  • [03]Volume47,103.244 mm³
Field notes
BY LOUIS ORME (LOUIS0)

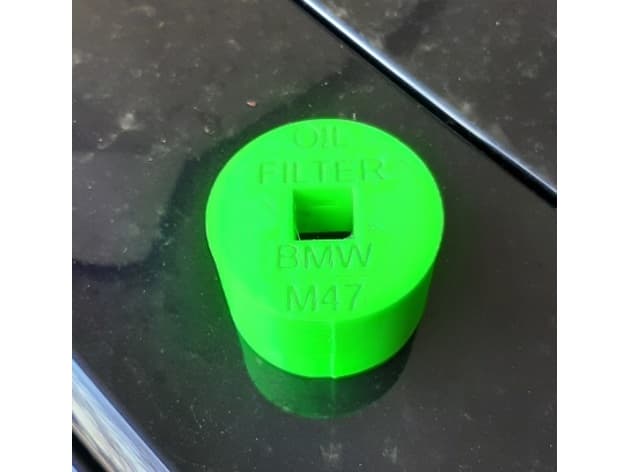

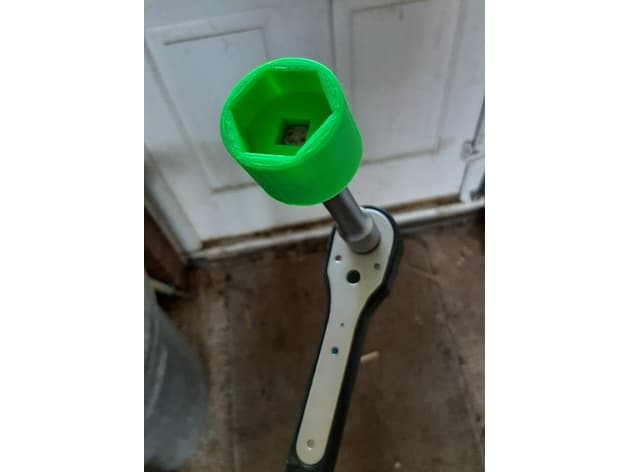

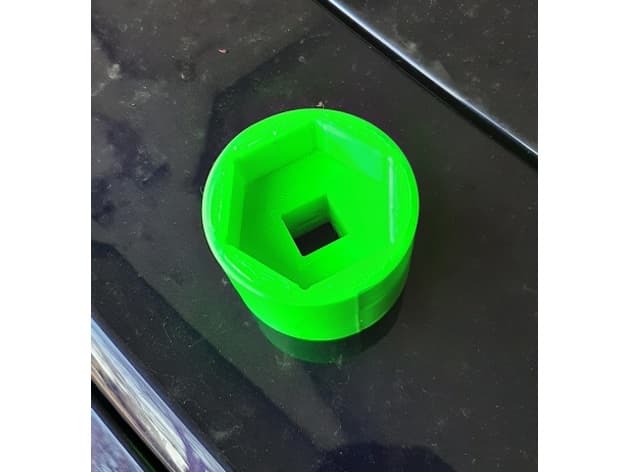

36 mm, half-inch-drive oil-filter housing socket physically tested on the M47 diesel engine in a BMW E87 1 Series. The creator printed it at 90% infill, shows it seated on the filter cap, and reports successful use. Use a tough material, inspect the drive and hex surfaces before use, and replace the print if it shows cracking or rounding.
