BMW 5 Series E60 / E61 3D-printable parts

Dimensioned replacement glovebox damper pin for BMW E21, E28, E30, E31, E34, E38, E39, E46 and E60/E61. The creator identifies BMW pin 51161828956 and shows the physical result installed. Verify damper eye and panel thickness before fitting.

Replacement beauty cap for M50, M52 and M54 engine-cover fasteners, physically shown on the engine. BMWFans identifies the exact component as cap 11121726089 and confirms E34, E36, E38, E39, E46, E53, E60/E61, E65/E66, E83, E85 and Z3 applications. Use engine-bay-rated material and keep it clear of hot or moving parts.

Contour spacer demonstrated with aftermarket side repeaters on BMW bodywork. The creator lists E36 from October 1996, E46 sedan/Touring, E60/E61, E81/E82/E87/E88 and E90–E93 applications. Test one side before mirroring and verify the repeater remains weather-sealed and positively retained.

Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.

I used: fibre reinforced ABS 20 % infill 4 outer wall thickness 0,4mm nozzle no support but slower outerwall speed Might also work with generic ABS/ASA/PETG BMW catalog identifies screw plug 71111179444 from 1986-06 with broad BMW toolbox usage; the API fitments reproduce the creator-listed E38/E39/E60/E65/E66 families. Verify dimensions against the original part and confirm full operation before regular use.

Rear wiper gear BWM E60 Creator supplies physical comparison evidence. This rear-wiper part is for the E61 Touring body, not the E60 sedan. Verify dimensions against the original part and confirm full operation before regular use.

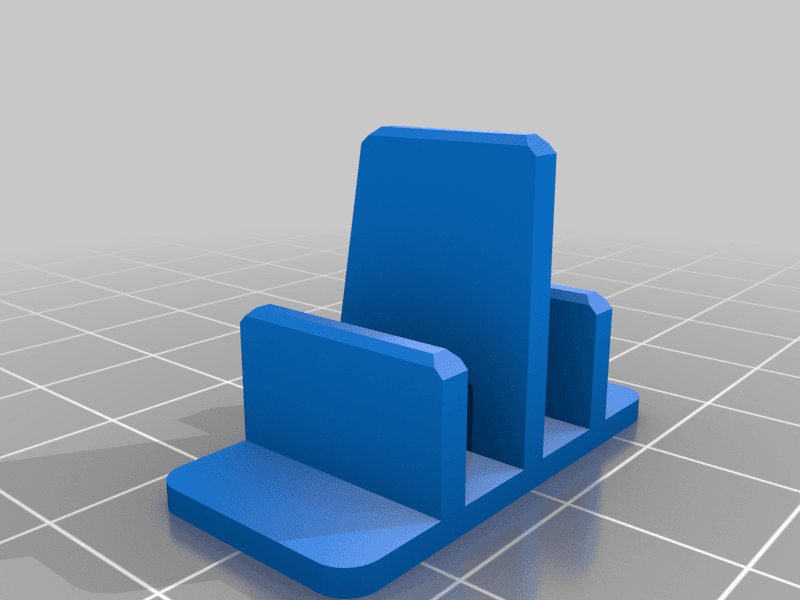

EDITED! THIS IS THE ACCURATE MEASUREMENTS. FITS PERFECT! LxBxH 30x15x20mmm Broke some clips when i took down some of my headliner, and could not find any so i made drawn and made some. Clips for headliner in BMW E60 an E61. Creator states the revised dimensions fit perfectly after replacing the earlier version. Verify dimensions against the original part and confirm full operation before regular use.

Just a replacement for the original Dummy. Verify dimensions against the original part and confirm full operation before regular use.

The center console catch broke in my BMW E61. I've removed the remaining plastic and printed this piece. Attach with two screws and it works perfectly again. Print with 100% infill for extra strength. Creator reports a perfect working repair attached with two screws; photographs show the installed E61 console lid. Verify dimensions against the original part and confirm full operation before regular use.

Screw clip for BMW sub-panels. I used it for e60 100% infill (or less is also good) 0.2 layer hight Creator reports using this 30 mm screw clip on an E60 under-panel. Verify dimensions against the original part and confirm full operation before regular use.

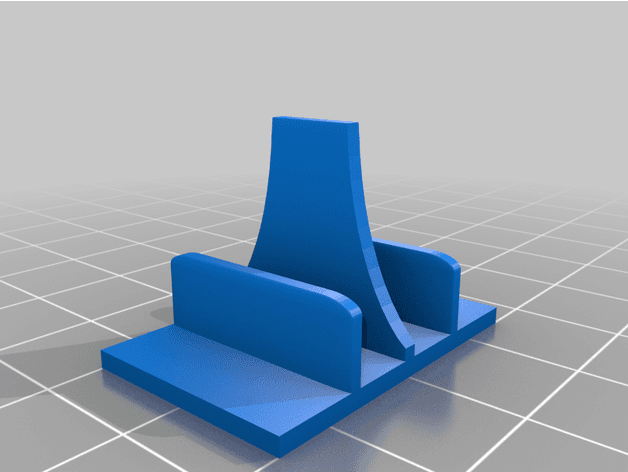

The nasty clips at the back of the headliner which always breaks when removing. Works very well with PETG. For non commercial use only! Creator reports the PETG replacement works very well at the rear of the E61 headliner. Verify dimensions against the original part and confirm full operation before regular use.

Attaching the trailer socket bmw e60 / e61 Retain only the socket mounting bracket; verify trailer wiring and legal requirements independently. Verify dimensions against the original part and confirm full operation before regular use.

Cable holder for 7mm hole. Printed without brim. Creator documents the printed holder on an E61 door harness and specifies a 7 mm mounting hole. Verify dimensions against the original part and confirm full operation before regular use.

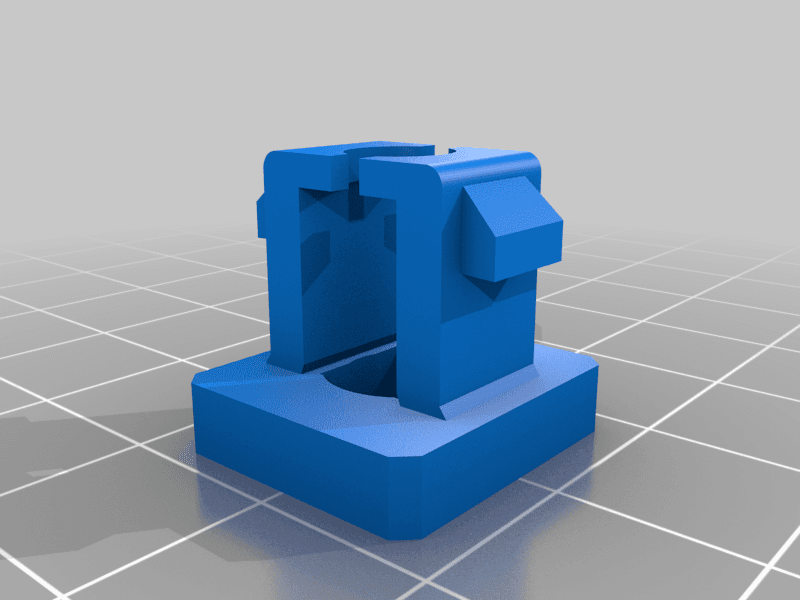

I edited the clip for E90 made by mrhaze222 so that it would fit in E60 console cover. it should be tight enough to twist it in the hole and strong enough to handle the metal rod,it may get loose a bit if you're planning on taking the cover often so if you want it to hold on longer and be tighter/stronger then you might aswell use the ABS filament but PLA should be enough. It perfectly fits in BMW E60 2003 so it should fit aswell in other models Remixed specifically for the E60 console cover; creator describes the rotational fit and spring-rod retention. Verify dimensions against the original part and confirm full operation before regular use.

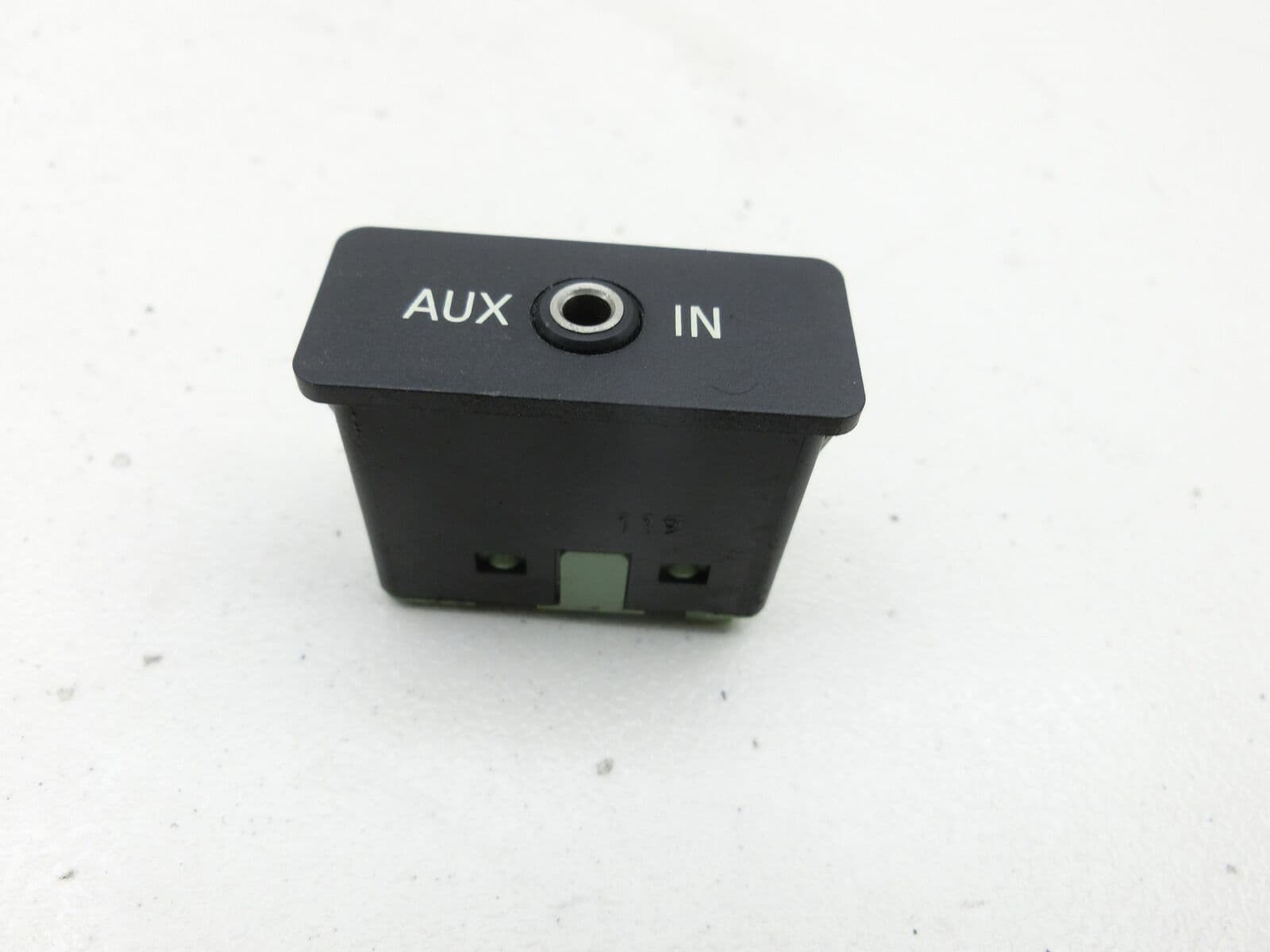

Made this for a friend because his original case had a crack. The hole is wider then the stock one because we had to use another aux jack. Feel free to remix it because my version is not perfect. For clipping it in you have to use the original metal clips which fits in the sides of the model. Forgot to make a picture of the 3d Printed model. Designed for a replacement auxiliary jack with a wider opening; reuse the original side metal clips. The creator notes this revision is not cosmetically perfect. Verify dimensions against the original part and confirm full operation before regular use.

the bmw e60 vents were very floppy and i went to see what was wrong and some how that small piece in my vent was the whole reason my vents wernt standing straight and working i found one of them so i could design these pieces 1-1 as the original i printed this in bambu black carbon fibre fillament Measured one-to-one from the original clip to restore a loose rear center vent. Verify dimensions against the original part and confirm full operation before regular use.

If you want to keep your ashtray tidy, I recommend this model Verify dimensions against the original part and confirm full operation before regular use.

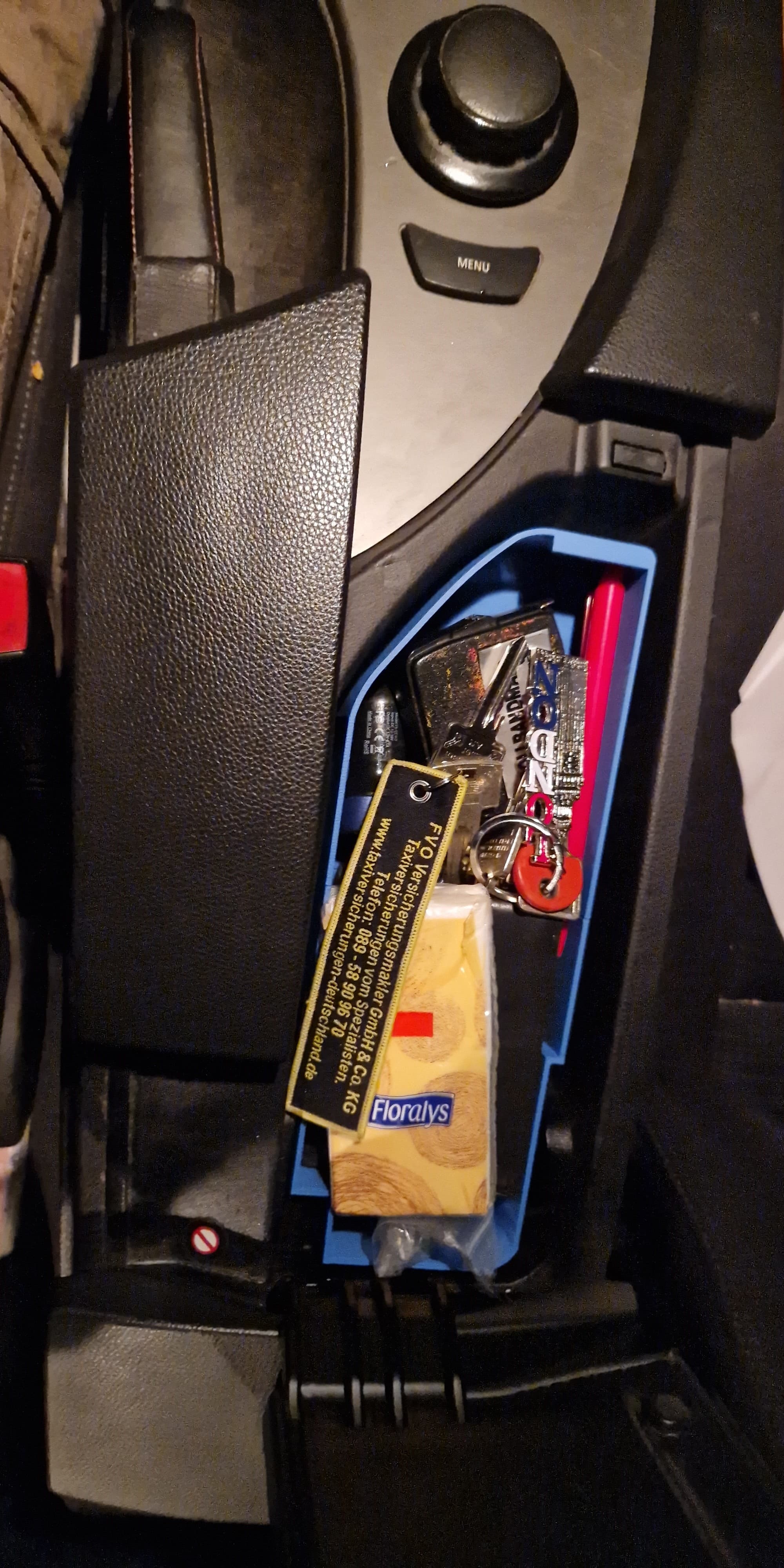

Hey Guys, i made this Center Console Compartment for my BMW E61. I made it because i had a Phone Holder in my center console which i never used. So i decided to get it out and print myselfe a Compartment. Now i can store more things in my Center Console. I cuted the thing into two parts so you can print it easy. Just glue it together after you printed it. Creator fitted this storage compartment after removing the unused factory phone holder; both complete and split/glue variants are supplied. Verify dimensions against the original part and confirm full operation before regular use.

My Driver side tab cracked in half. It would be a party when on the highway/ move excessively on bumps. Mirror it for the driver side !! PRINT WITH SUPPORTS !! There's a hidden pocket in the tab, you wont see the supports but it will make it print. Creator installed the repair after a cracked driver-side tab caused lamp movement; mirror the right-side geometry for the opposite side and verify beam aim after installation. Verify dimensions against the original part and confirm full operation before regular use.

man kennt es schöner 5er aber vorne keine Möglichkeit sein Getränk abzulegen stellen ohne original Cup Holder. Kein bock Armaturenbrett zu tauschen oder was kaputt zumachen? ich habe eine Lösung erarbeitet die für alle E60/61 ohne Becher Halter vorne interessant ist. insgesamt habe ich 3 Wochen mit 4 Prototypen verbracht um ein passendes Ergebnis zu bekommen. Bitte beachtet das Modell hat 3 wandschleifen so wie 3 obere und untere schichten damit ist es für 500ml dosen ausgerichtet. mein Test Objekt habe ich aus pla gedruckt daher bitte keine heißgetränke reinlegen. man schränkt sich kaum im Komfort ein bis auf das man als großer Mensch mit dem knie aufpassen muss weil es kann passieren das man sich das ablagefach nach innen rausdrückt. für die Montage ist kein Werkzeug oder sonstiges nötig und auch für schaltwagen geeignet. Viel Spaß und Freie Fahrt! Creator tested four prototypes in a manual-transmission car. The design is sized for 500 ml cans; avoid hot drinks and check knee clearance. Verify dimensions against the original part and confirm full operation before regular use.

Ablagefach passend für das Fach in der Mittelkonsole eines BMW E60 bzw. E61. Einmal als Blanko-Variante um selbst ein gewünschtes Fach bzw. eine spezielle Form zu integrieren. Einmal mein aktuell genutztes Modell, einmal 3 Münzfächer, einmal eine Ablage für einen Hörmann HS M 2/4 Garagentoröffner sowie ein kleines zusätzliches Fach. Das Modell passt gut in die vorhandene Mulde der Mittelkonsole. Gedruckt wurde das ganze mit Impact PLA von Fiberlogy. PETG würde sich auch anbieten, normales PLA ist im Fahrzeug nicht optimal. Includes a blank customizable tray plus coin and Hörmann remote layouts; creator reports the currently used version fits the console recess well. Verify dimensions against the original part and confirm full operation before regular use.

It works and fits, but it is sturdier than the original and if you want extra sturdiness, then make it even thicker, because there is still more place for that part. Print the pin as a separate part and glue it together. it will look better, save you time and work better. Please do not re-upload STL or any other mesh version of this project. I upload STEP only, because I want it to be easily editable. Do not poison the internet. For commercial use contact me and I am sure that we can build something cool out of it. Other than that do whatever you like as long as you mention me as the author of the model. Creator reports the replacement fits and works, and supplies separate claw/pin and combined STEP versions. Verify dimensions against the original part and confirm full operation before regular use.

Service wrench for the notched BMW fuel-tank screw cap used on E46, E60/E61, E63/E64, E65–E68, E83 and E53 vehicles. The creator tested the same interface on an R53 MINI and identified BMW screw cap 16116762417; BMW catalog cross-reference independently confirms that cap across the listed BMW chassis. The printed wrench is not the screw cap itself, so no OEM number is assigned. Use a stiff engineering polymer, hand tools only, and replace rather than reuse any visibly damaged print.
