Center-Console Latch Repair
ABS · Nylon · PETG1 FILECC-BYInterior
- PART
- Center-Console Latch Repair
- OEM
- —
- FITS
- 5 Series E60 / E61
Loading 3D viewer...
PART ID · BIMMER-3D / 1397QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
5 PLATES
PLATE 01 / 05No caption recorded
Build sheet

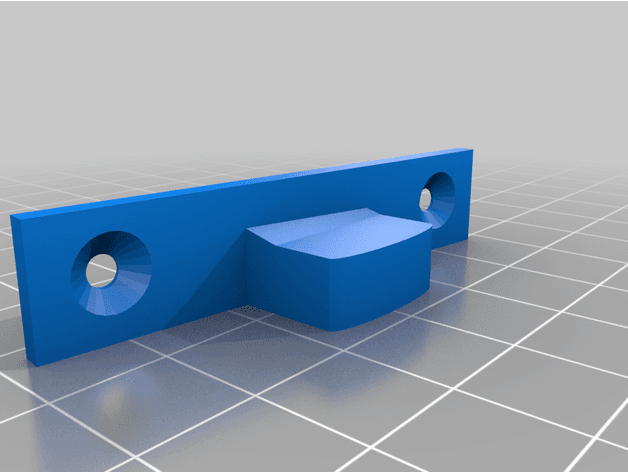

MAN-1397- [01]BMW_E61_center_console_catch.stlBMW_E61_center_console_catch.stl.STL
- [02]Bounding box54.846 × 15.911 × 11.500 mm
- [03]Volume2,111.14 mm³
Field notes

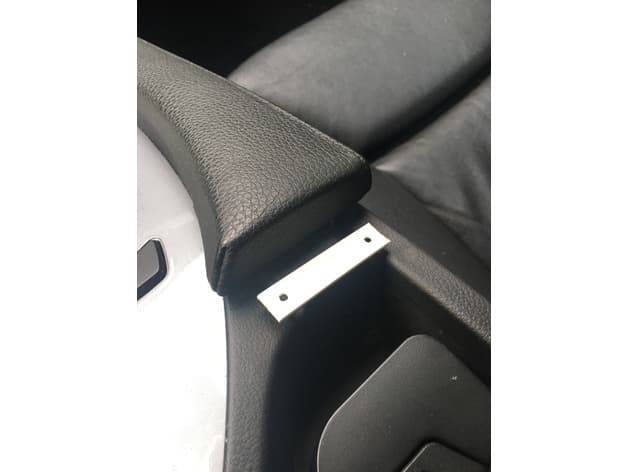

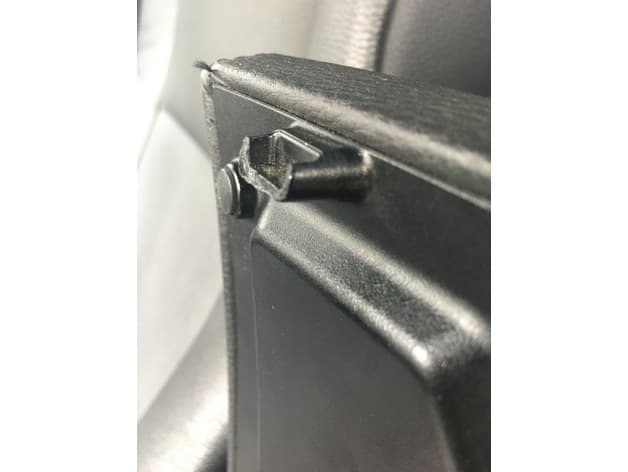

BY BASTIAAN FENS (BPFENS)The center console catch broke in my BMW E61. I've removed the remaining plastic and printed this piece. Attach with two screws and it works perfectly again. Print with 100% infill for extra strength. Creator reports a perfect working repair attached with two screws; photographs show the installed E61 console lid. Verify dimensions against the original part and confirm full operation before regular use.
