Under-Panel Screw Clip

ABS · Nylon · PETG1 FILECC-BY-NC-SATrim Clips

PART RECORDREF 1398

PART: Under-Panel Screw Clip
OEM: —
FITS: 5 Series E60 / E61

Loading 3D viewer...

PART ID · BIMMER-3D / 1398QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1398

[01]BMW_skru_klips_30mm.stlBMW_skru_klips_30mm.stl.STL
[02]Bounding box29.997 × 29.993 × 12.000 mm
[03]Volume1,954.384 mm³

Field notes

BY TERJE LÆGREID (TELAGREI)

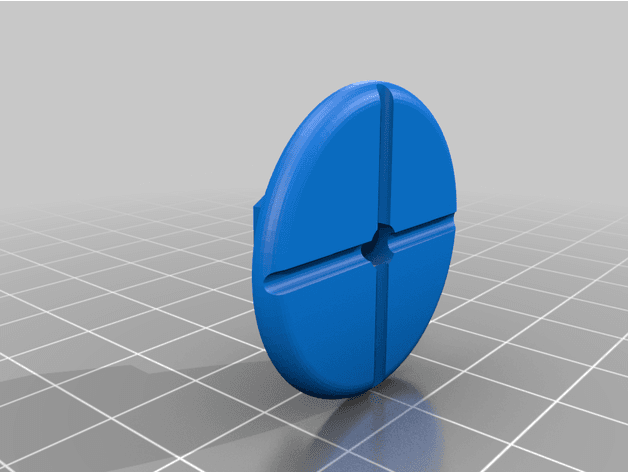

Screw clip for BMW sub-panels. I used it for e60 100% infill (or less is also good) 0.2 layer hight Creator reports using this 30 mm screw clip on an E60 under-panel. Verify dimensions against the original part and confirm full operation before regular use.
