Center-Console Storage Tray Set

ABS · PETGMULTI-PART3 FILESCC-BY-NCInterior
PART RECORDREF 1409
PART
Center-Console Storage Tray Set
OEM
FITS
5 Series E60 / E61
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1409QTY 3 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES

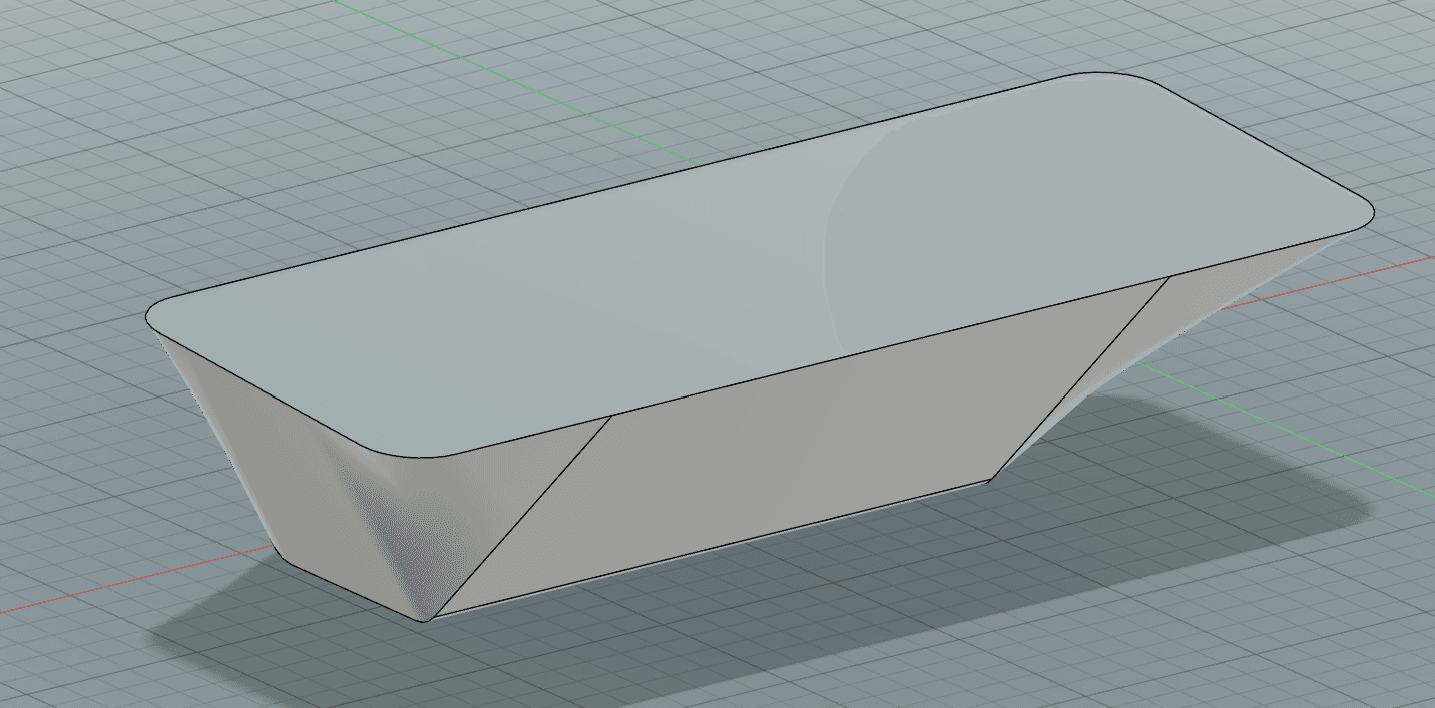

Plate 1 of 2
PLATE 01 / 02No caption recorded
Build sheet
MAN-1409
  • [01]e61ablage.stl.STL
  • [02]e61ablage_blanko.3mf.STL
  • [03]e61ablage_blanko.stl.STL
  • [04]Bounding box147.000 × 121.221 × 68.626 mm
  • [05]Volume568,980.305 mm³
Field notes
BY DANIEL

Ablagefach passend für das Fach in der Mittelkonsole eines BMW E60 bzw. E61. Einmal als Blanko-Variante um selbst ein gewünschtes Fach bzw. eine spezielle Form zu integrieren. Einmal mein aktuell genutztes Modell, einmal 3 Münzfächer, einmal eine Ablage für einen Hörmann HS M 2/4 Garagentoröffner sowie ein kleines zusätzliches Fach. Das Modell passt gut in die vorhandene Mulde der Mittelkonsole. Gedruckt wurde das ganze mit Impact PLA von Fiberlogy. PETG würde sich auch anbieten, normales PLA ist im Fahrzeug nicht optimal. Includes a blank customizable tray plus coin and Hörmann remote layouts; creator reports the currently used version fits the console recess well. Verify dimensions against the original part and confirm full operation before regular use.
