Manual-Console Cup Holder

ABS · PETG1 FILE2 DOWNLOADSCC-BY-NC-SAConsole & storage

PART RECORDREF 1408

PART: Manual-Console Cup Holder
OEM: —
FITS: 5 Series E60 / E61

Loading 3D viewer...

PART ID · BIMMER-3D / 1408QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

Manual-Console Cup Holder — image 1 of 5

PLATE 01 / 05No caption recorded

Build sheet

MAN-1408

[01]bmw-e60_61-becherhalter-v1_3.stlbmw-e60_61-becherhalter-v1_3.stl.STL
[02]Bounding box247.829 × 197.992 × 78.046 mm
[03]Volume181,686.662 mm³

Field notes

BY PAYTON

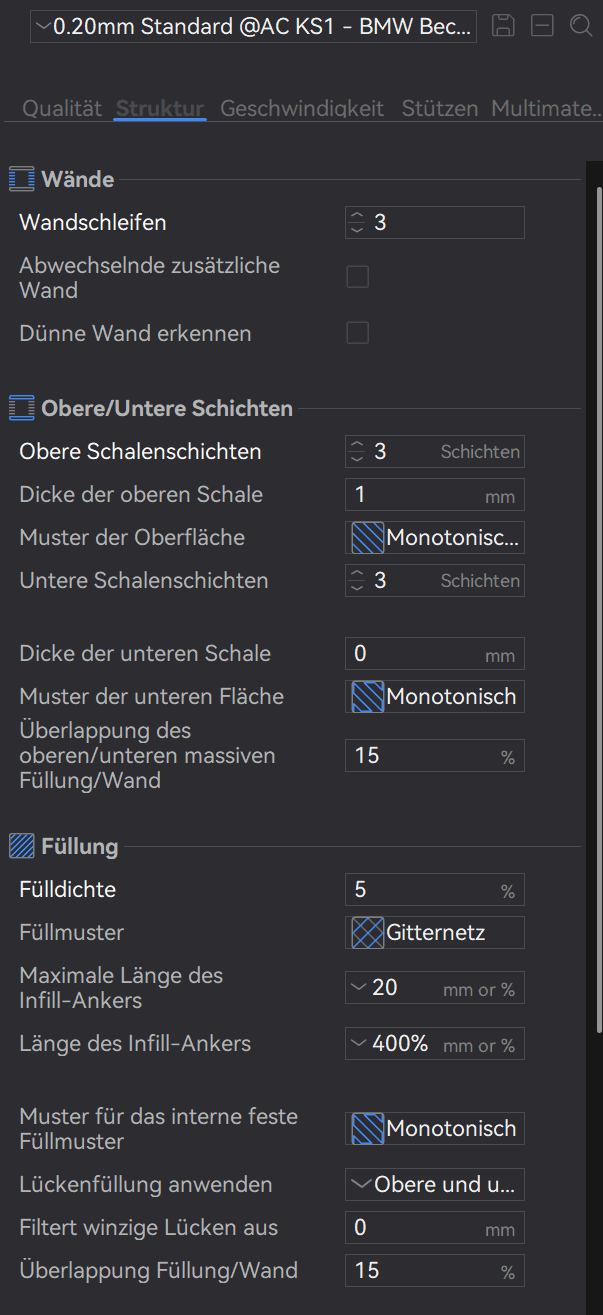

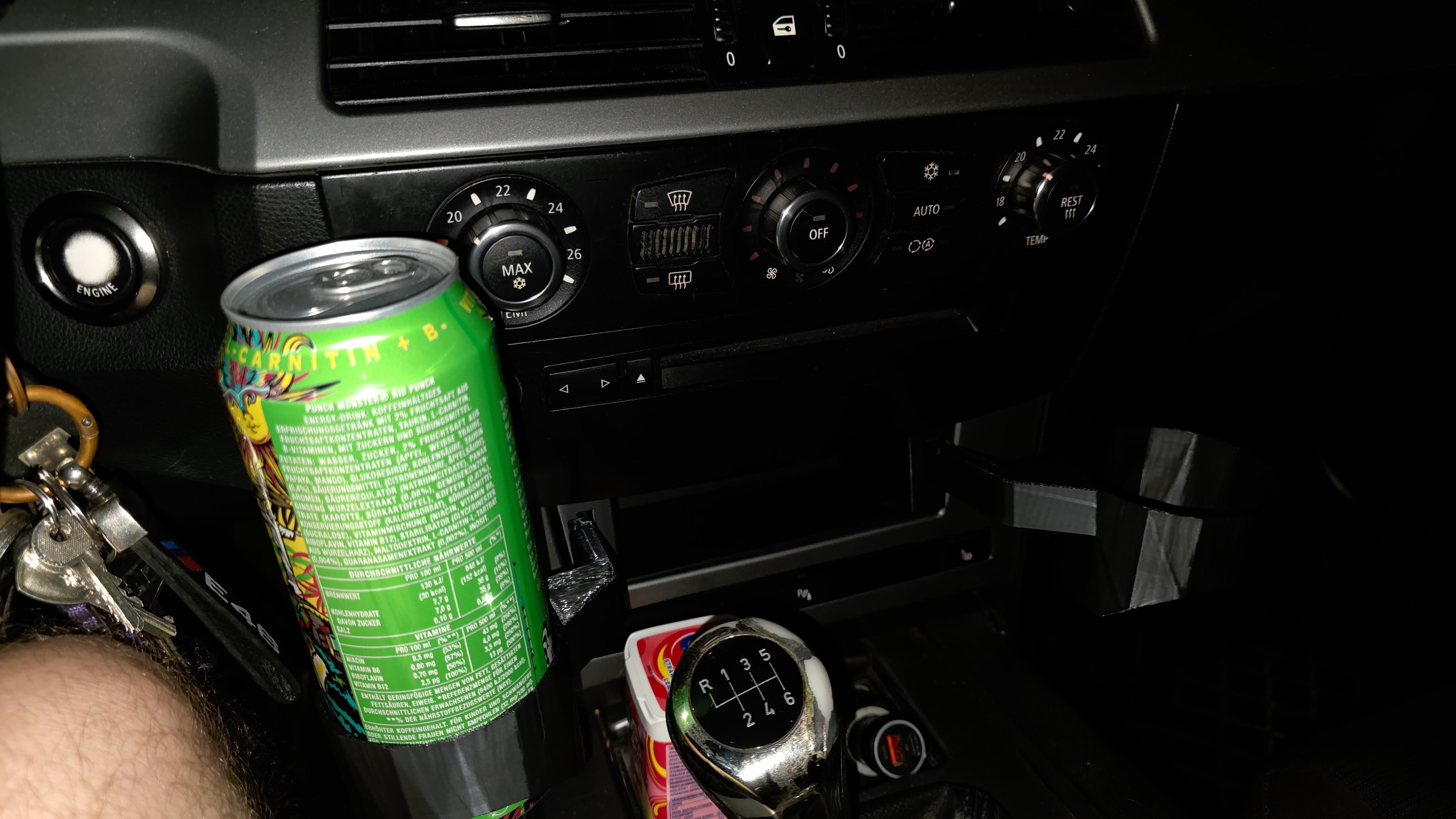

Tool-free front cup holder for BMW E60 and E61 models without the factory front cup holders. It avoids replacing or modifying the dashboard and is compatible with manual-transmission cars. The creator developed four prototypes over three weeks. The model is configured with three perimeters and three top and bottom layers and is sized for 500 ml cans. The test piece was printed in PLA, so do not place hot drinks in it. Taller occupants should check knee clearance because contact can push the storage compartment inward. Verify fit, secure retention, and unobstructed operation before driving.

View original source ↗
