BMW 6 Series 3D-printable parts

Replacement interior door-handle trim bezel for BMW E30, E24, E28 and E23, physically printed and fitted. BMWFans confirms cover 51211876043. Print in a UV- and cabin-heat-resistant material.

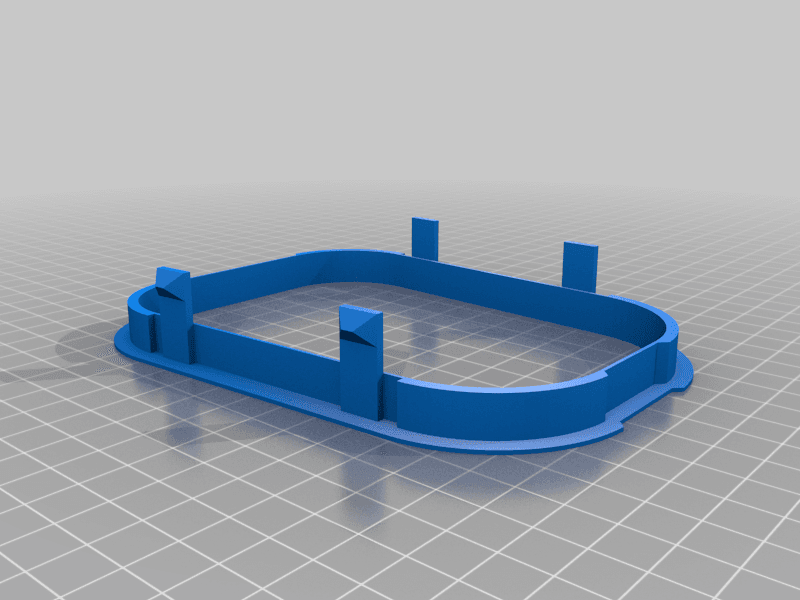

Replacement manual shifter-boot retaining frame for BMW E28 and E24 interiors. The creator measured an E28, fitted the design in the car and recommends PETG because PLA prototypes softened in cabin heat. The test car has a short shifter; correct worn or misadjusted linkage rather than relying on this frame to solve reverse-gear interference.

Hand tool for aiming classic BMW headlamps that use a 3/8-inch square plastic adjuster, including E28, E24 and E23 lamps. The source provides 60, 100 and 150 mm shaft options and recommends a stiff filament. BMW numbers 63121362049 and 63121369857 identify the nut and screw being adjusted, not the printed tool, so no OEM number is assigned.

Four clip-in replacement gear-knob shapes for the BMW E34 and the creator-listed classic BMW chassis. The design was developed around the common BMW latching stem and includes an installed physical example. Confirm the lever's clip profile and preserve full shift travel before driving; the grouped API fitments reproduce only chassis families explicitly listed by the creator.

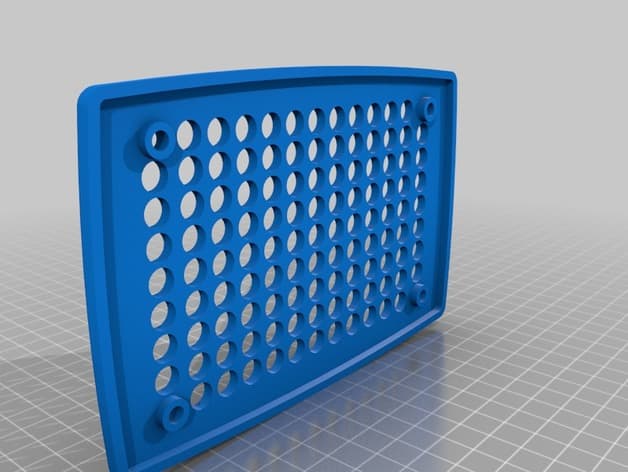

Replacement perforated front-speaker cover for the BMW E24 interior. The preserved source provides exact E24 fitment and printable geometry, but only a rendered source image survives; compare the opening, fastener points, color and grain against the original cover before installation. Use a cabin-heat-resistant material and deburr every perforation.

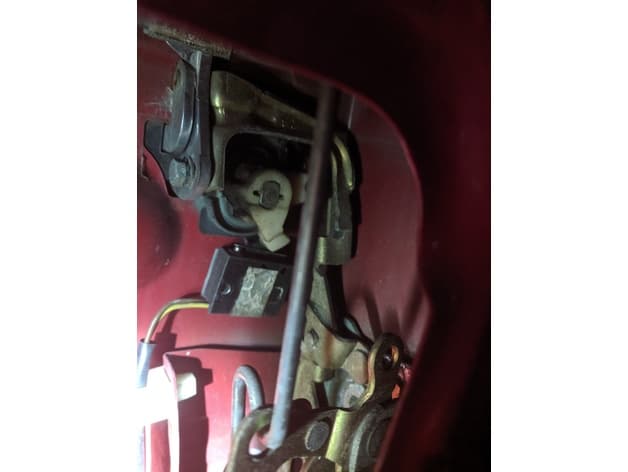

Driver- and passenger-side snap-fit clips that couple the exterior door lock to the central-locking microswitch on BMW E23 and E24 cars. The source shows the clip installed in an E24 door and supplies side-specific geometry. Use a tough, heat-tolerant material, warm only as needed for assembly, and verify that lock, unlock, key return and microswitch operation are smooth before closing the door.

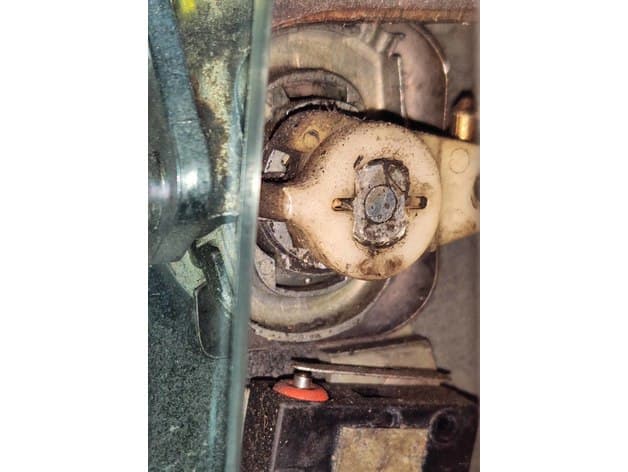

Replacement passenger-door lock cam/linkage for the BMW E24, reproduced to repair the broken plastic element formerly supplied only inside BMW lock repair kit 51219061345. The printed geometry is not the complete kit, so that parent number is intentionally not assigned. Compare side and linkage geometry, use a tough engineering polymer and fully test manual and central locking before closing the door.

Two repair-stop geometries, 15.5 mm and 22 mm, for damaged stops on the chrome headlamp glass-holding frames of BMW E24 cars. BMW 63121361709 and 63121361710 identify the complete left and right glass-holding frames, not these printed repair inserts, so neither parent number is assigned. Select the matching size, use a weather- and heat-resistant material and confirm full wiper travel without lens or trim contact.

Replacement clamp for the factory BMW E24 headlamp cleaning system. BMW catalogs identify the left/right clamp pair as 61661362211 and 61661362212 across European E24 628CSi, 630CS, 633CSi, 635CSi and M635CSi applications; 61661362211 is discontinued while 61661362212 remains cataloged without a supersession shown. Use only on cars equipped with the headlamp cleaning system, confirm side and production configuration by VIN, and test the wiper path before operation.

Service wrench for the notched BMW fuel-tank screw cap used on E46, E60/E61, E63/E64, E65–E68, E83 and E53 vehicles. The creator tested the same interface on an R53 MINI and identified BMW screw cap 16116762417; BMW catalog cross-reference independently confirms that cap across the listed BMW chassis. The printed wrench is not the screw cap itself, so no OEM number is assigned. Use a stiff engineering polymer, hand tools only, and replace rather than reuse any visibly damaged print.

Dual catch-can mounting bracket designed by the creator for the S63TU engine bay in the BMW F13 M6 and F10 M5. The creator links an installation video for the twin-turbo M6 setup, providing physical-use evidence beyond the preserved CAD render. Print in a heat-resistant engineering material such as nylon, keep clear of hot or moving components and hoses, and inspect retention after initial heat cycles. This is an aftermarket accessory with no original BMW component counterpart, so no OEM number is assigned.

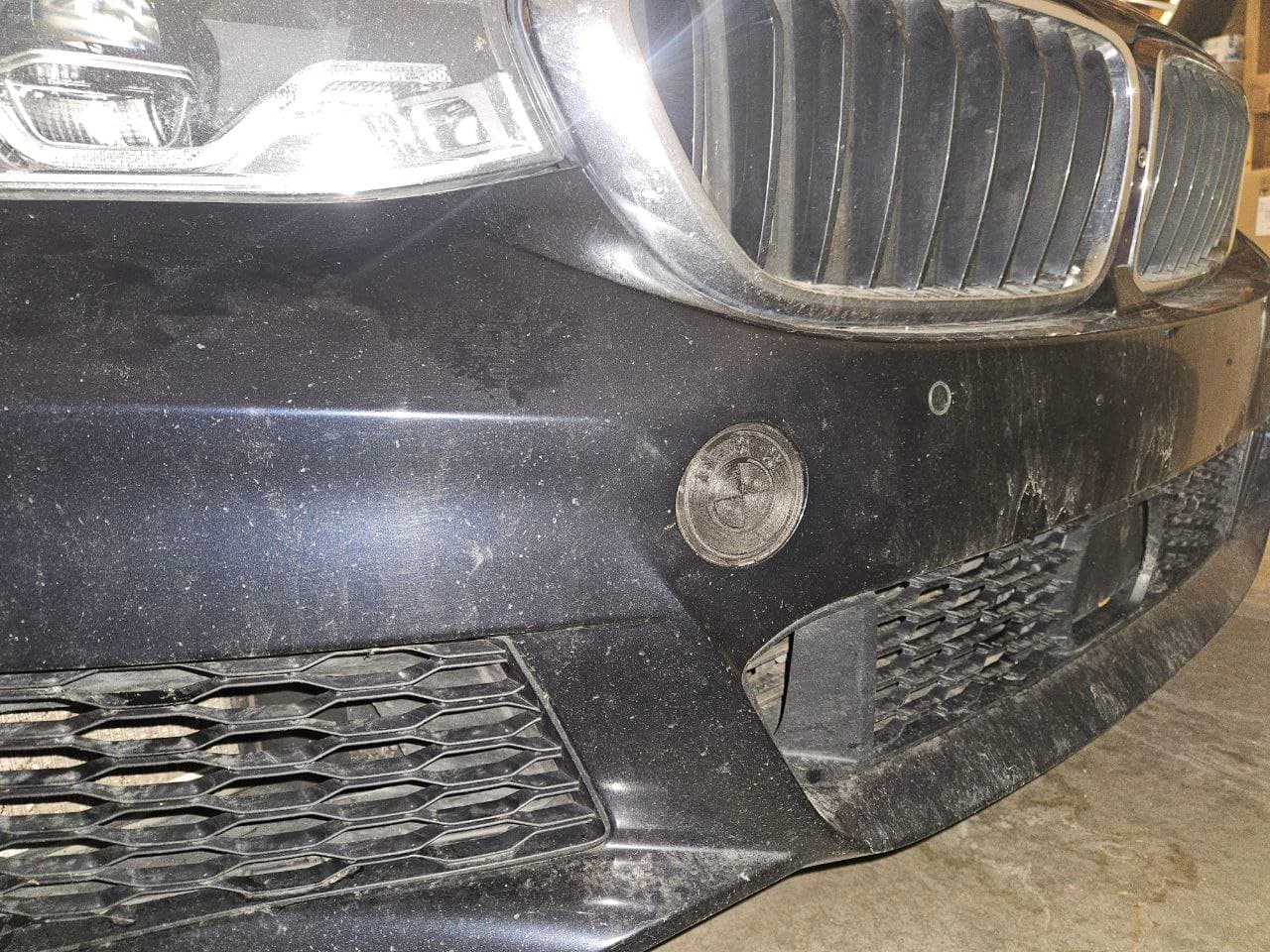

Custom front towing-eye opening cover designed and physically installed by the creator on a BMW G32 6 Series Gran Turismo with the pre-LCI M Sport front bumper. The round face intentionally differs from the curved factory-painted flap and includes a removal notch and decorative BMW relief. Use only on the matching pre-LCI M Aerodynamics (S715A) bumper opening, print in a weather- and heat-resistant material, paint or seal for UV exposure, and verify all retention tabs before road use. Genuine BMW reference 51118072209 identifies the original primed M-bumper tow-eye cover; it is not a claim that this custom round face is factory geometry.
