Passenger Door-Lock Cam / Linkage

ABS · Nylon1 FILECC-BYDoors

PART RECORDREF 1421

PART: Passenger Door-Lock Cam / Linkage
OEM: —
FITS: 6 Series E24

Loading 3D viewer...

PART ID · BIMMER-3D / 1421QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1421

[01]E24_M6_door_lock_linkage.STLE24_M6_door_lock_linkage.STL.STL
[02]Bounding box35.435 × 19.993 × 9.779 mm
[03]Volume1,311.007 mm³

Field notes

BY EVAN RUFF (GTE619N)

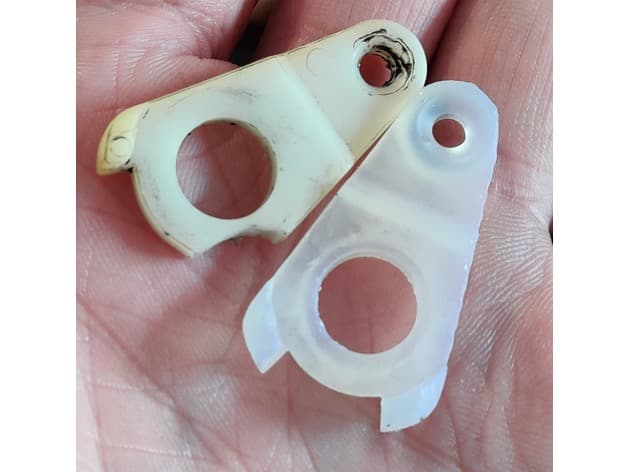

Replacement passenger-door lock cam/linkage for the BMW E24, reproduced to repair the broken plastic element formerly supplied only inside BMW lock repair kit 51219061345. The printed geometry is not the complete kit, so that parent number is intentionally not assigned. Compare side and linkage geometry, use a tough engineering polymer and fully test manual and central locking before closing the door.
