Headlamp Adjustment Tool

Nylon · PETG2 FILESCC-BY-SALights

PART RECORDREF 1333

PART: Headlamp Adjustment Tool
OEM: —
FITS: 5 Series E28, 6 Series E24, 7 Series E23

Loading 3D viewer...

PART ID · BIMMER-3D / 1333QTY 2 · STLHANDLE · NO SUPPORTS

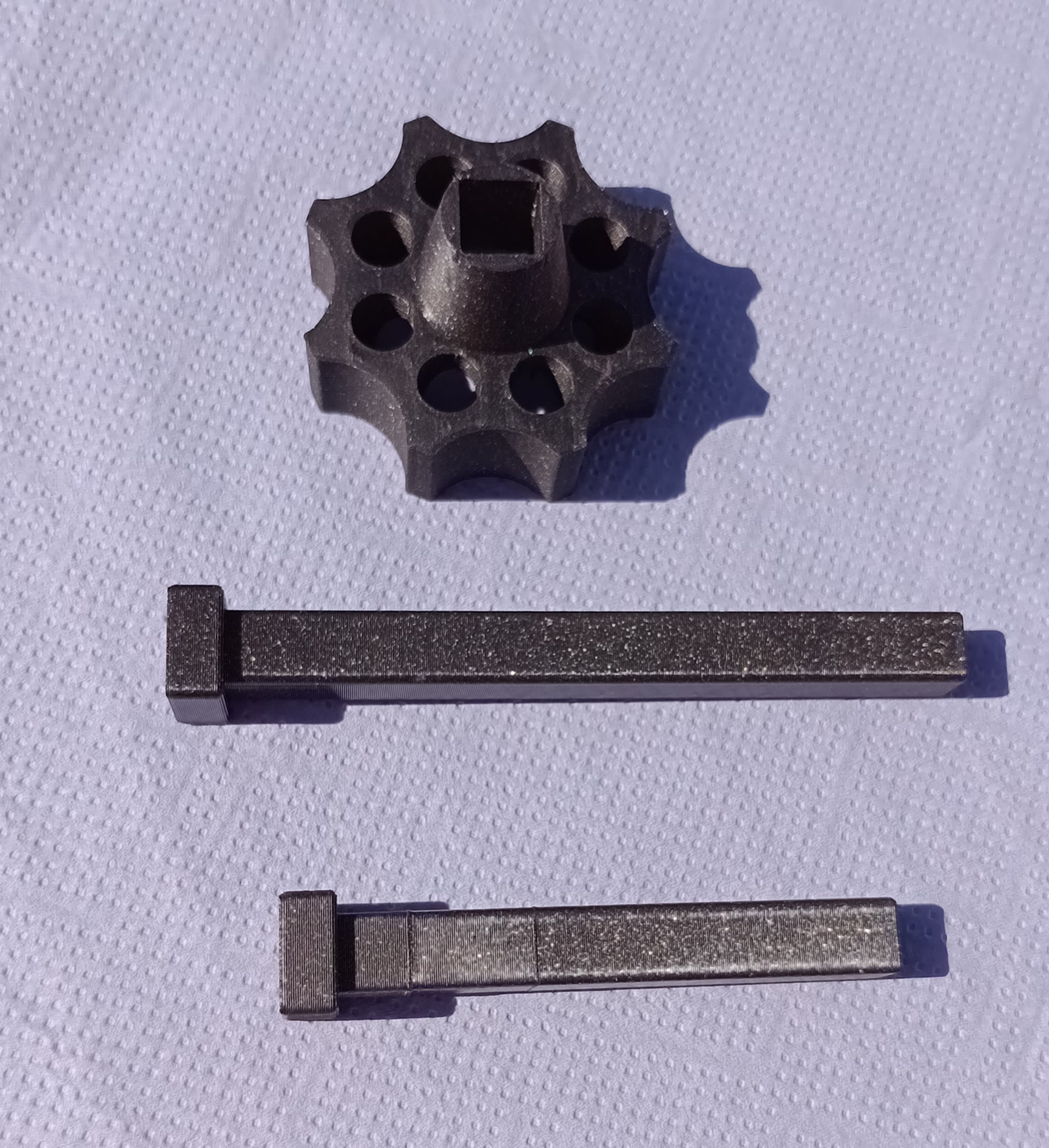

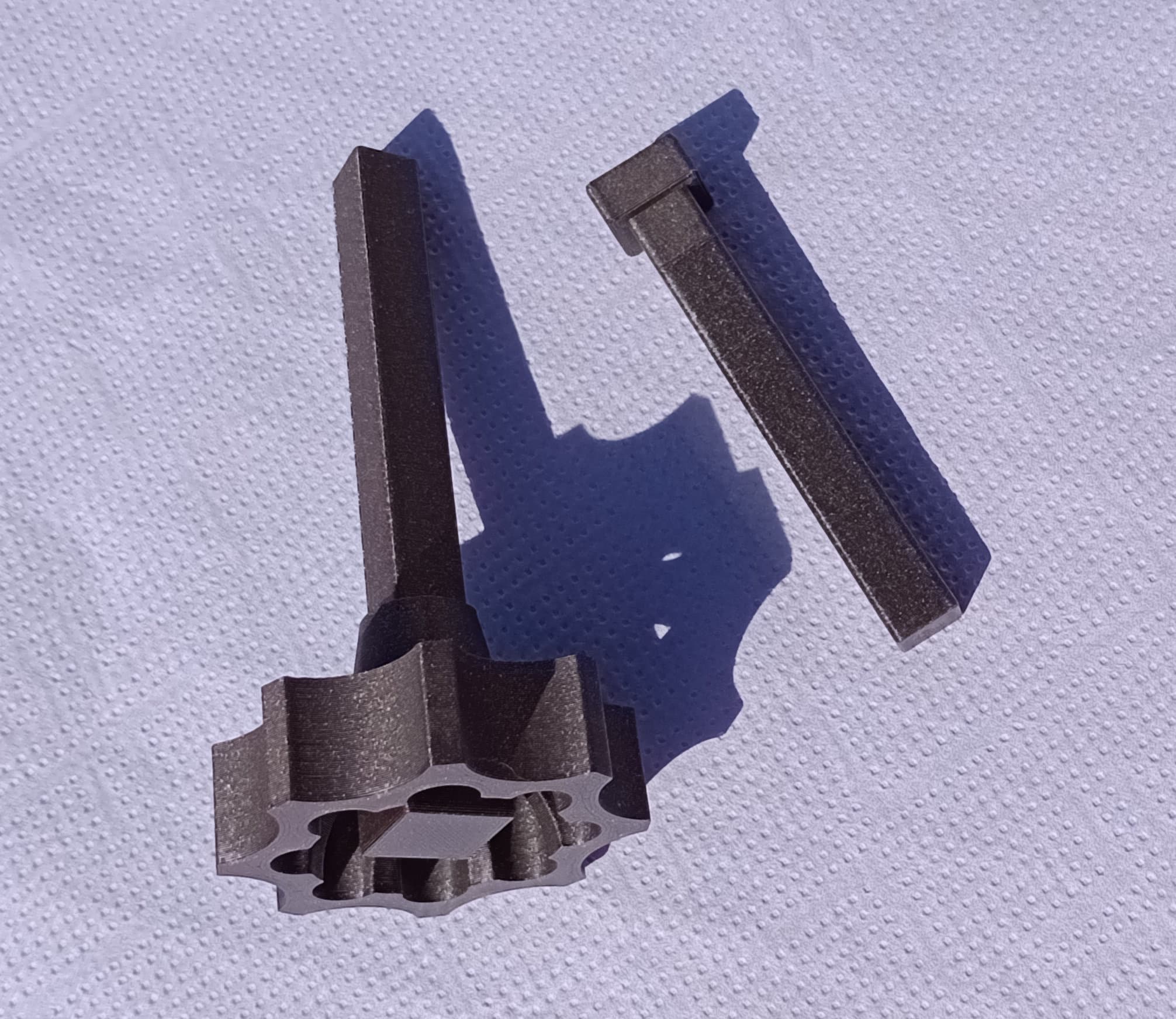

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1333

[01]e24_lights_adjustment_knob.3mfe24_lights_adjustment_knob.3mf.STL
[02]e24_lights_adjustment_knob.stle24_lights_adjustment_knob.stl.STL
[03]Bounding box150.000 × 130.889 × 47.492 mm
[04]Volume43,308.895 mm³

Field notes

BY LYON

Hand tool for aiming classic BMW headlamps that use a 3/8-inch square plastic adjuster, including E28, E24 and E23 lamps. The source provides 60, 100 and 150 mm shaft options and recommends a stiff filament. BMW numbers 63121362049 and 63121369857 identify the nut and screw being adjusted, not the printed tool, so no OEM number is assigned.

View original source ↗
