PART №1426
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

M-Sport Front Tow-Eye Cover

REPLACES OEM51118072209
ABS · Nylon · PETG1 FILEPublic DomainBody
PART RECORDREF 1426
PART
M-Sport Front Tow-Eye Cover
OEM
51118072209
FITS
6 Series G32 Gran Turismo
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1426QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1426
  • [01]BMW G32 tow hook cover prusa.3mf.STL
  • [02]Bounding box85.222 × 75.500 × 20.031 mm
  • [03]Volume20,724.539 mm³
Field notes
BY VLADISLAV VELICHKO

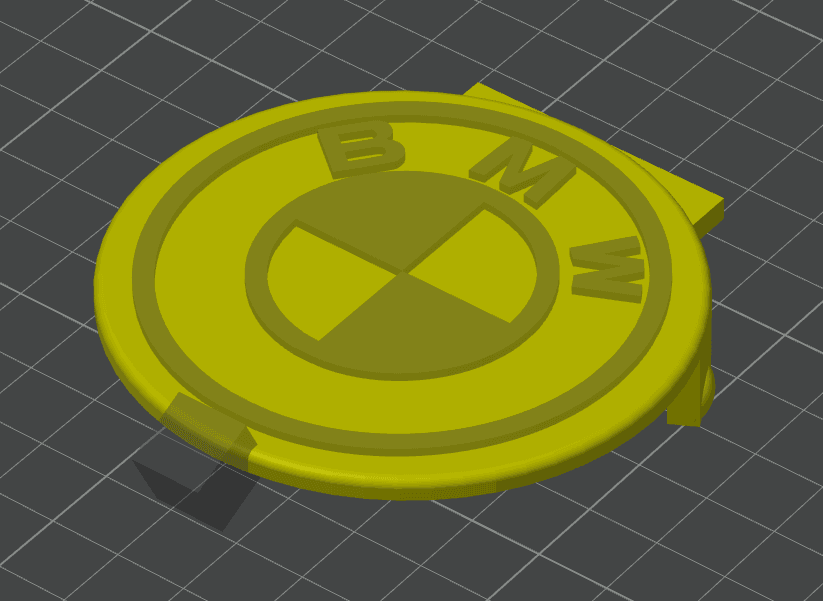

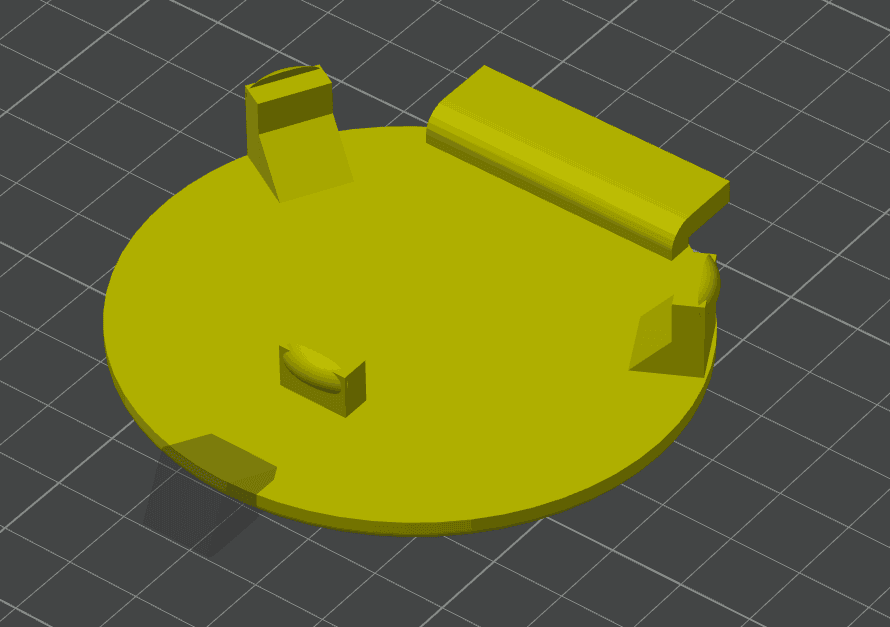

Custom front towing-eye opening cover designed and physically installed by the creator on a BMW G32 6 Series Gran Turismo with the pre-LCI M Sport front bumper. The round face intentionally differs from the curved factory-painted flap and includes a removal notch and decorative BMW relief. Use only on the matching pre-LCI M Aerodynamics (S715A) bumper opening, print in a weather- and heat-resistant material, paint or seal for UV exposure, and verify all retention tabs before road use. Genuine BMW reference 51118072209 identifies the original primed M-bumper tow-eye cover; it is not a claim that this custom round face is factory geometry.
