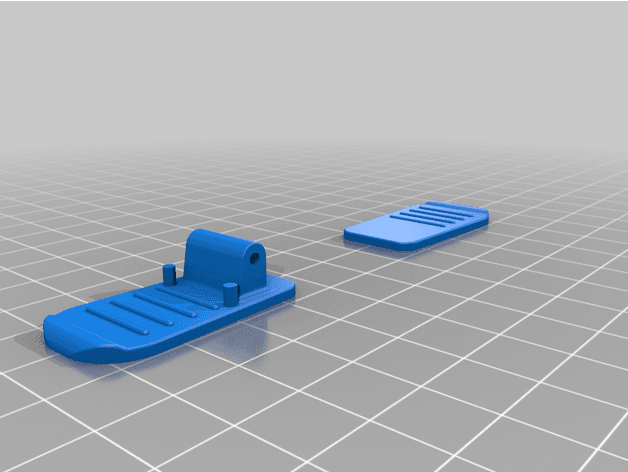

Sunblind Holder Clip
ABS · Nylon · PETGMULTI-PART2 FILESCC-BYHeadlining
- PART
- Sunblind Holder Clip
- OEM
- —
- FITS
- 5 Series E39, 7 Series E38
Loading 3D viewer...
PART ID · BIMMER-3D / 1370QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
2 PLATES
PLATE 01 / 02No caption recorded
Build sheet
MAN-1370- [01]1.stl1.stl.STL
- [02]full.stlfull.stl.STL
- [03]Bounding box141.000 × 19.299 × 12.249 mm
- [04]Volume5,722.05 mm³
Field notes
BY OLEG ERMACHENKA (EPMAK)Clip for sunblind holder BMW E38 E39 Printed ABS. Nozzle 0.2, layer height 0.01, speeds 40 - internal, 30 - external. Printing is carried out in two halves, after which it is glued together, processed mechanically and in acetone to give a presentable surface. Verify dimensions against the original part and confirm full operation before regular use.
