2.5 mm Watertight-Terminal Repair Shells

ABS · NylonMULTI-PART4 FILESCC-BYElectrical

PART RECORDREF 1115

PART: 2.5 mm Watertight-Terminal Repair Shells
OEM: —
FITS: 3 Series E30, 3 Series E36, 3 Series E46

Loading 3D viewer...

PART ID · BIMMER-3D / 1115QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-1115

[01]BMW_Terminal_Molding_Front.STEPBMW_Terminal_Molding_Front.STEP.STL
[02]BMW_Terminal_Molding_Front.STLBMW_Terminal_Molding_Front.STL.STL
[03]BMW_Terminal_Molding_Rear.STEPBMW_Terminal_Molding_Rear.STEP.STL
[04]BMW_Terminal_Molding_Rear.STLBMW_Terminal_Molding_Rear.STL.STL

Field notes

BY IAN GLEN (CODETHATTHINKS)

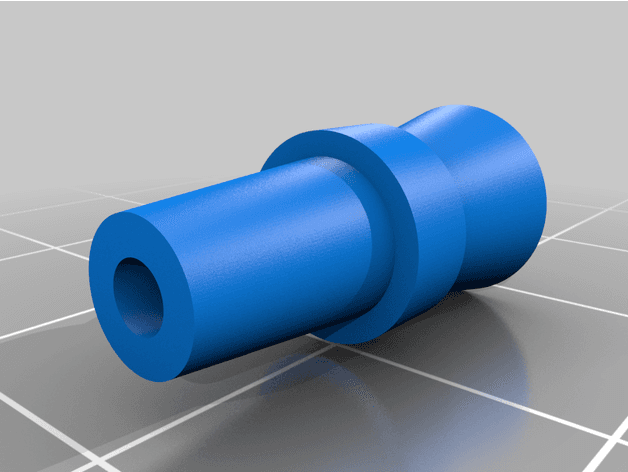

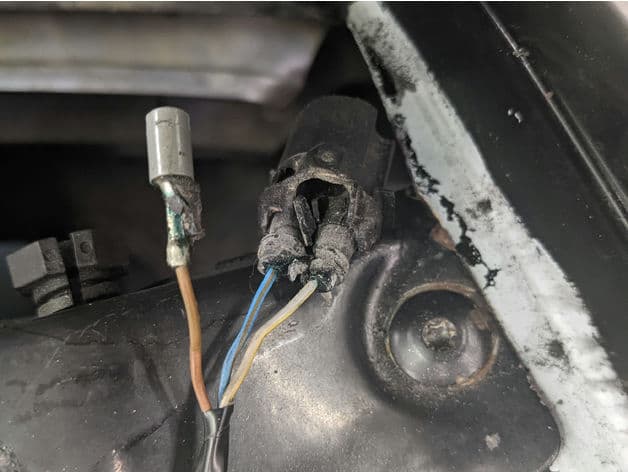

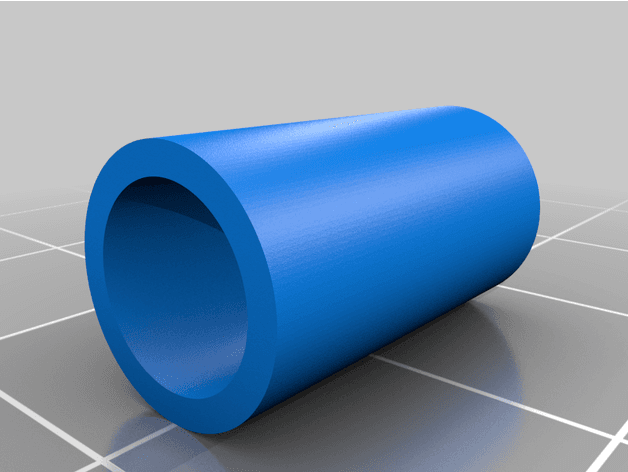

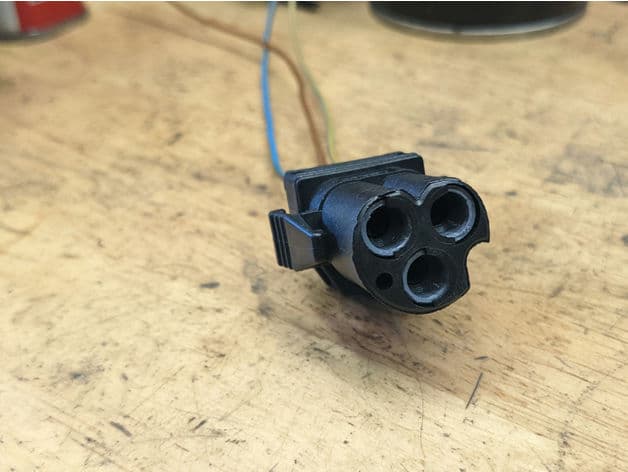

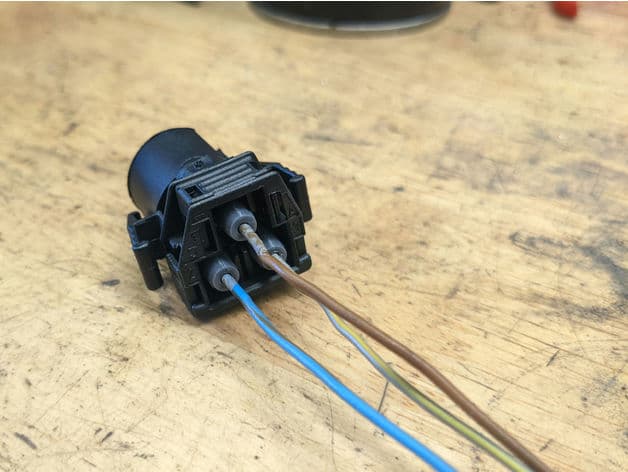

Straight and 90-degree two-piece shells for repairing disintegrated 2.5 mm watertight terminals on BMW E30, E36 and E46. The source shows completed physical connectors. Bond with suitable RTV and verify terminal lock, polarity, insulation and sealing.
