Wheel-Lock Bolt Cover

ABS · Nylon1 FILECC-BY-NC-SAExterior

PART RECORDREF 1130

PART: Wheel-Lock Bolt Cover
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1130QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

8 PLATES

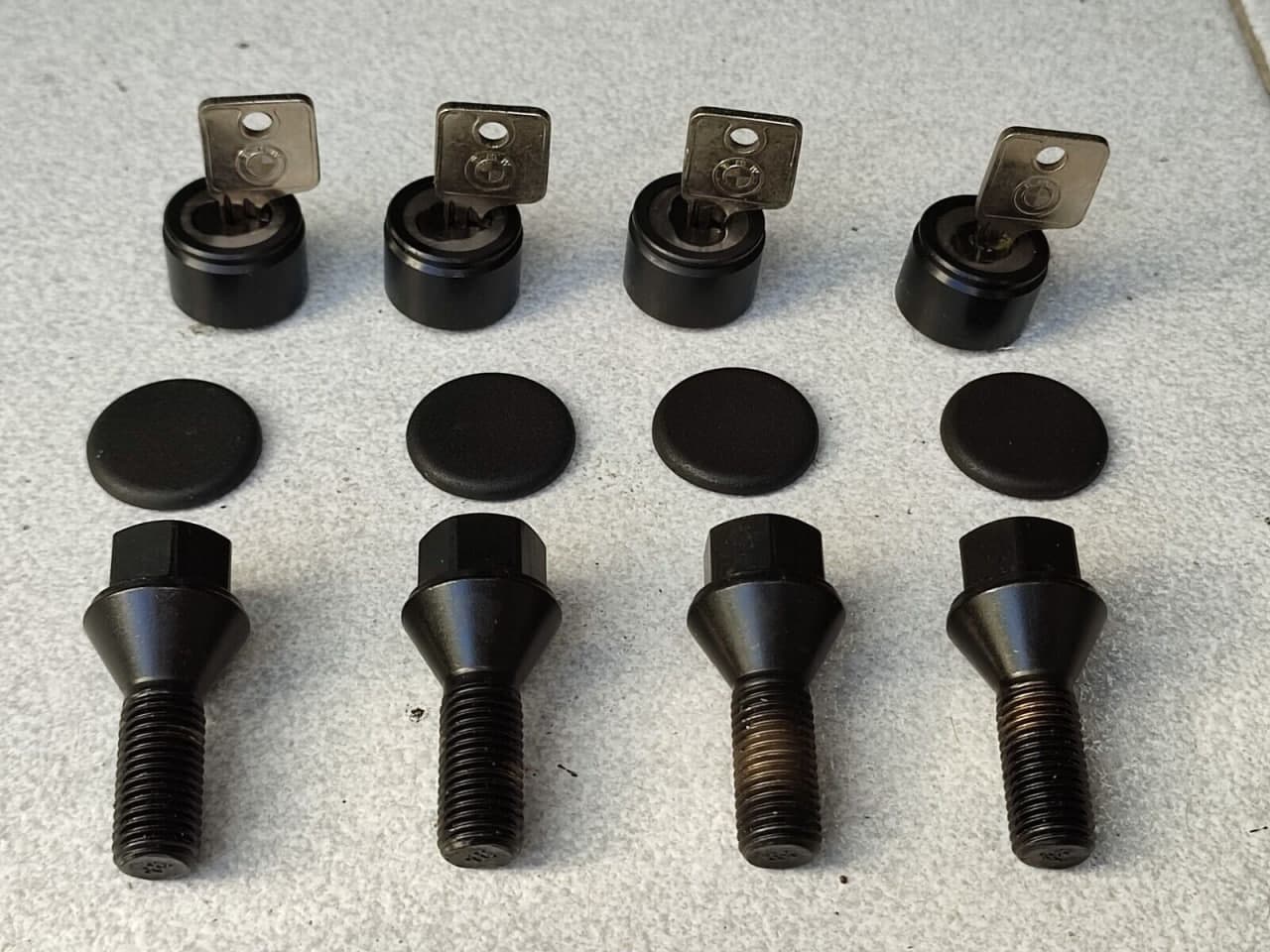

PLATE 01 / 08No caption recorded

Build sheet

MAN-1130

[01]bmwe30_rimssecretboltcover36-13-1-182-006-v15.stlbmwe30_rimssecretboltcover36-13-1-182-006-v15.stl.STL
[02]Bounding box26.597 × 26.594 × 4.900 mm
[03]Volume1,380.395 mm³

Field notes

BY KOTYARKO_O

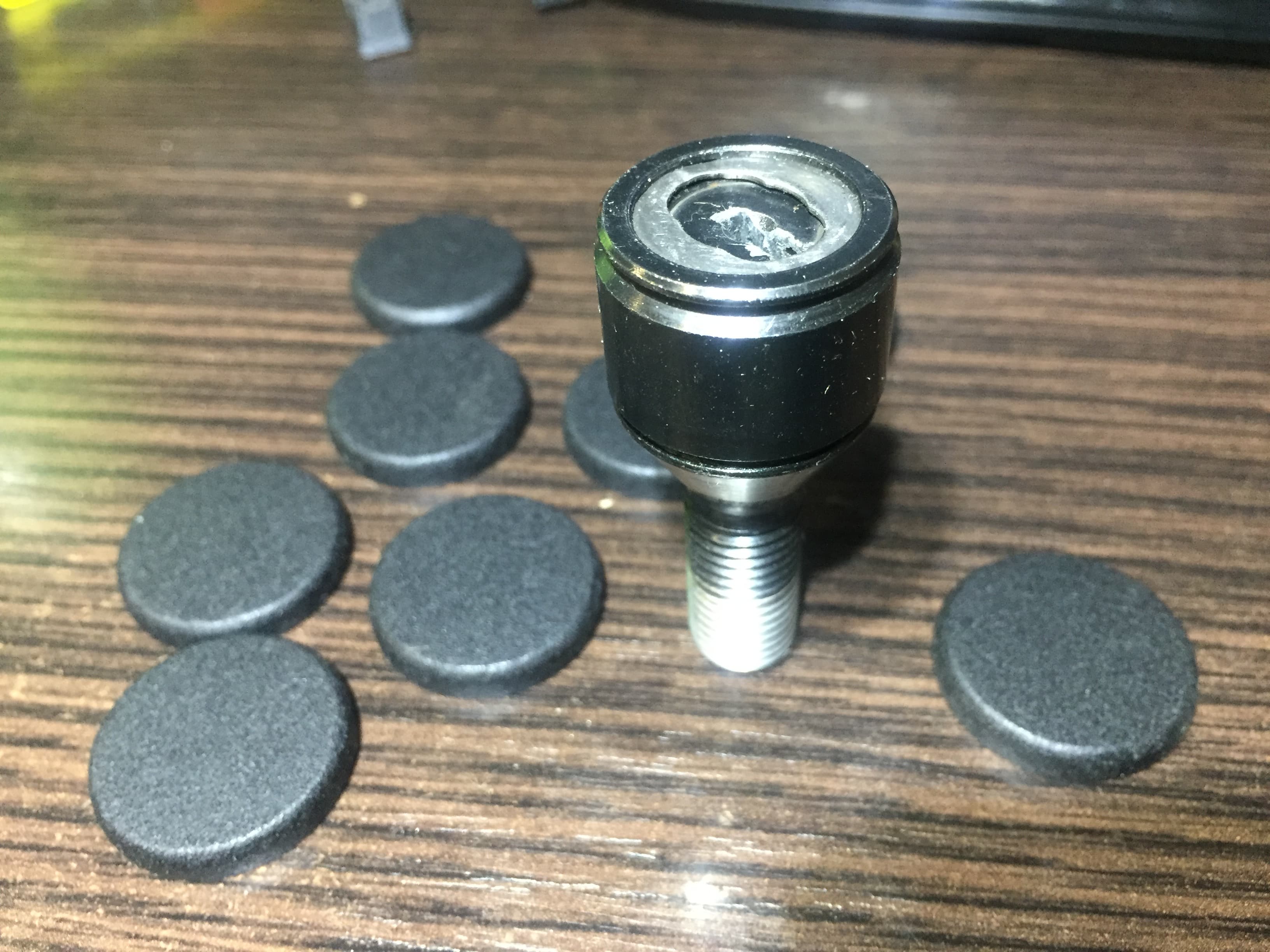

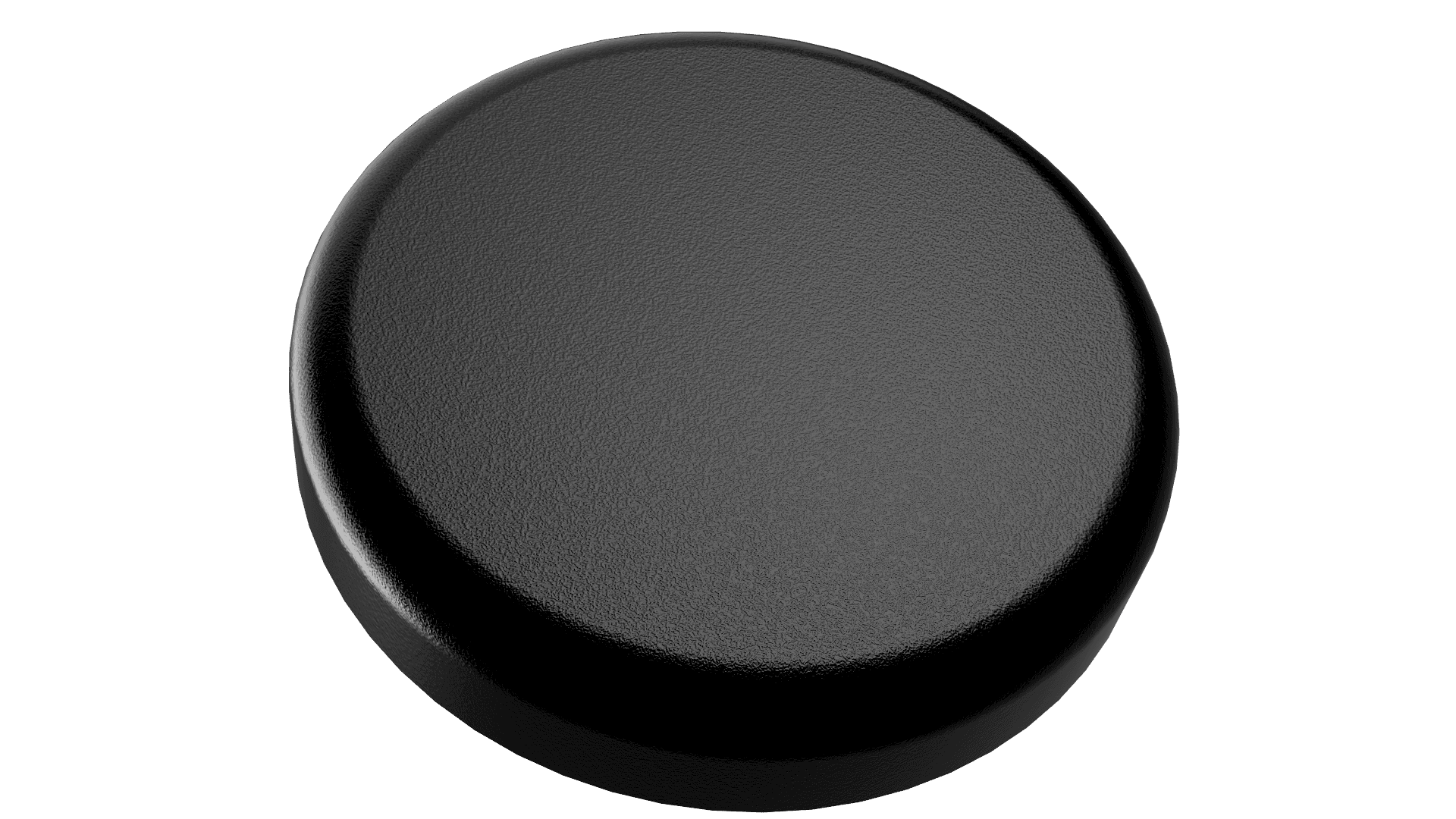

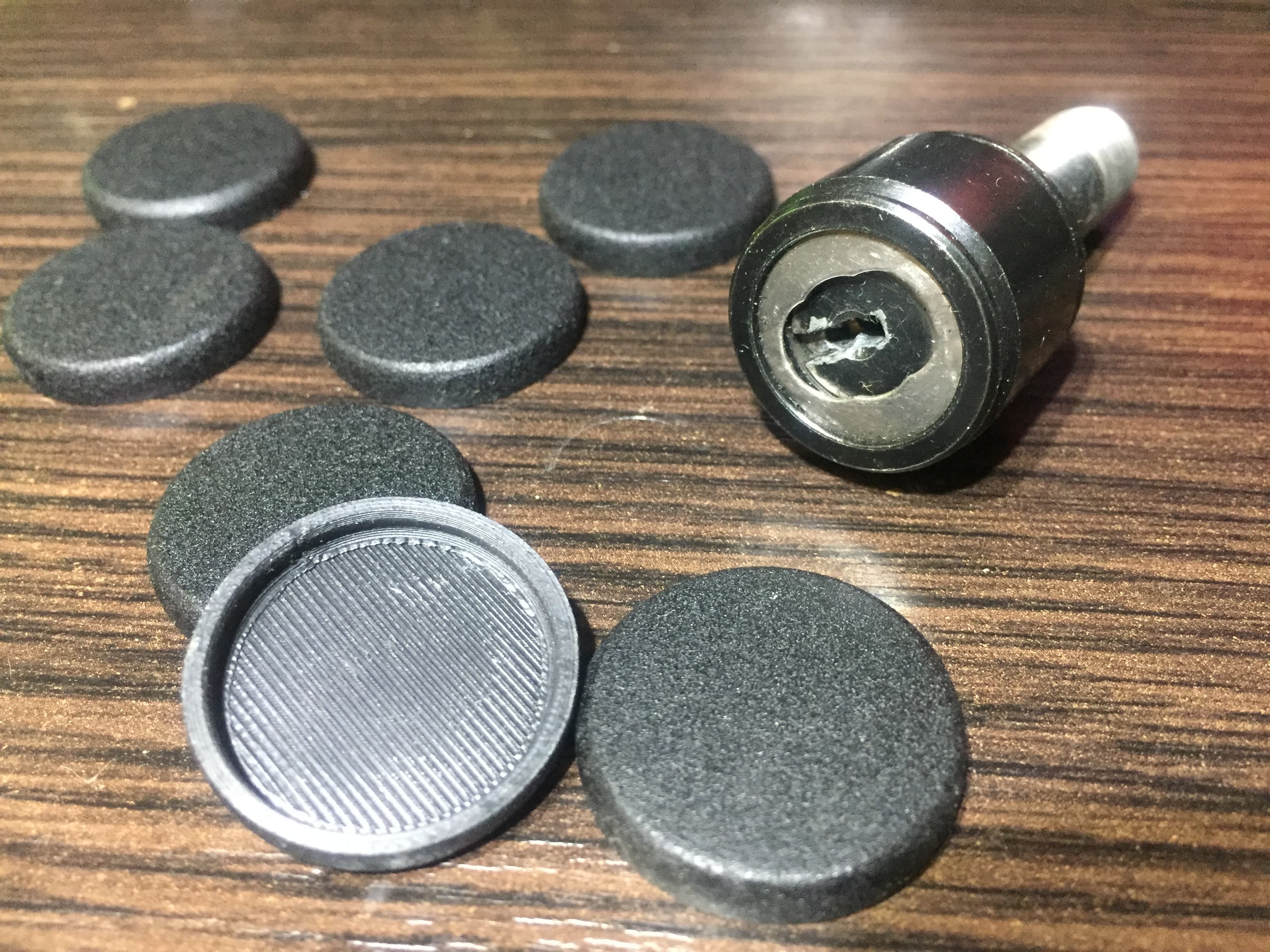

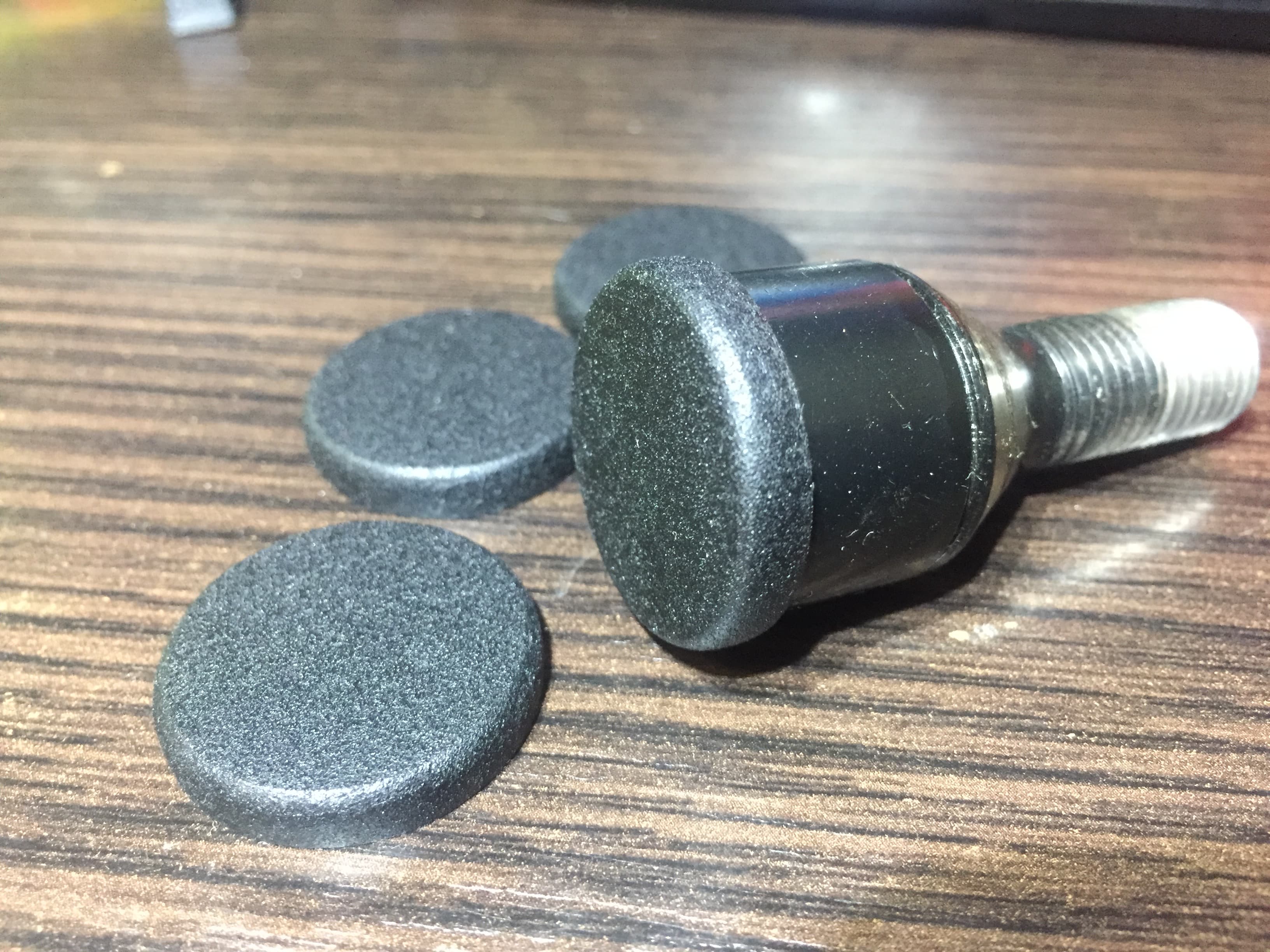

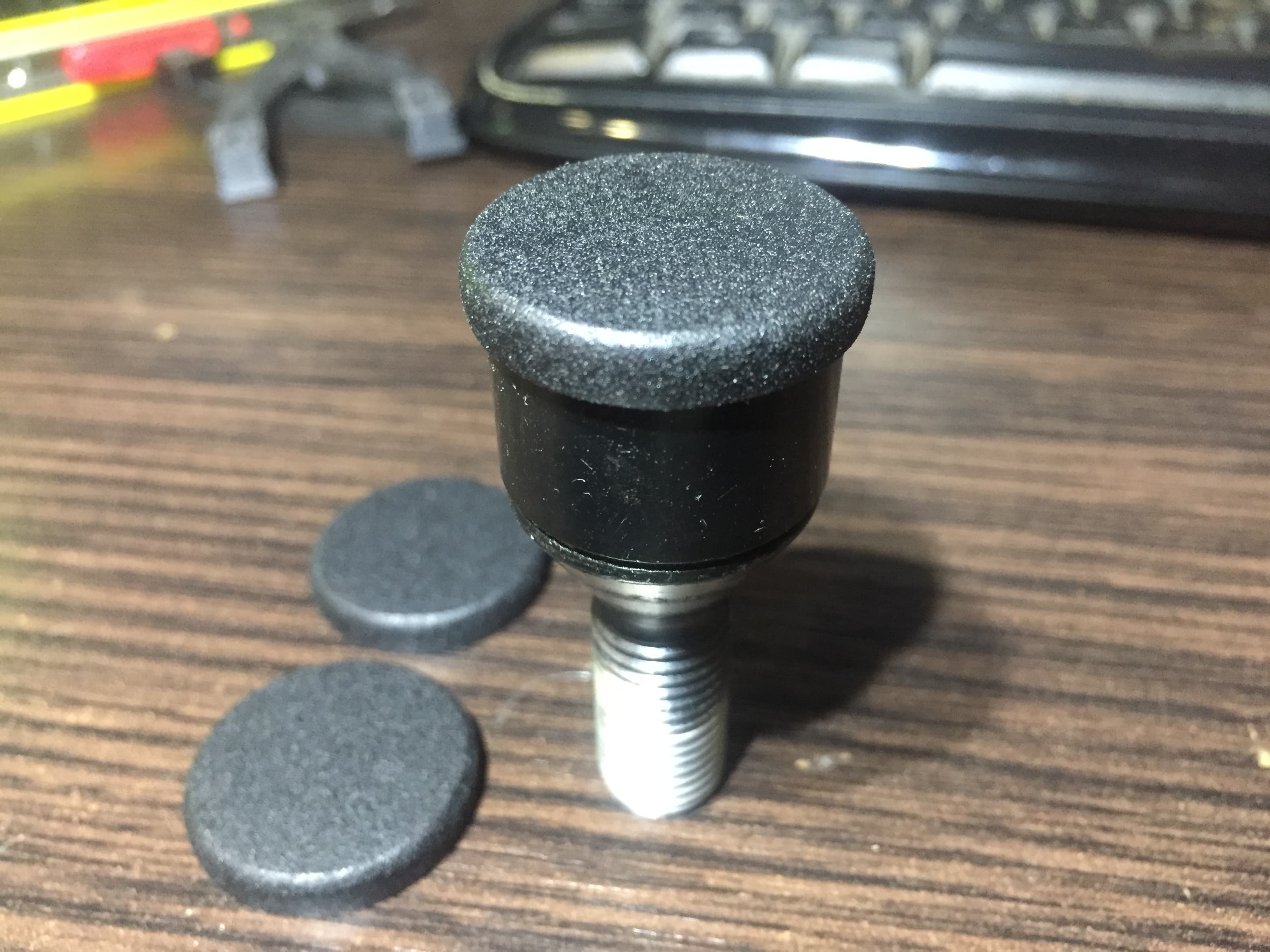

Click-fit cosmetic cap designed around the E30 wheel-lock bolt and physically fitted. The creator-listed 36131182006 identifies a complete lock set, not the printed cap, so no OEM number is assigned. Verify the cap cannot loosen near the wheel.

View original source ↗
