Undertray and Splashguard Plastic Nut

ABS · PETG1 FILECC-BYTrim Clips

PART RECORDREF 1259

PART: Undertray and Splashguard Plastic Nut
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1259QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

PLATE 01 / 01No caption recorded

Build sheet

MAN-1259

[01]BMW_Plastic_Nut.stlBMW_Plastic_Nut.stl.STL
[02]Bounding box24.000 × 24.000 × 11.100 mm
[03]Volume1,589.389 mm³

Field notes

BY PEDRO BARAHONA (PBARAHONA)

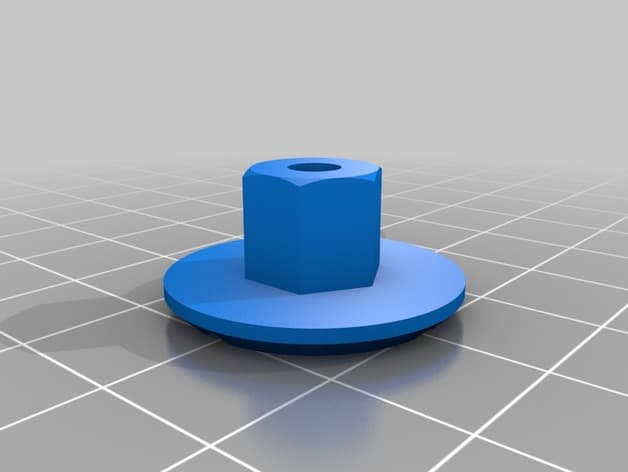

The is a model of a BMW E90 plastic nut. These nuts are used in the undertray, splashguard and several other places in the vehicle. The nut itself is unthreaded since it is screwed onto a thread cutting fastener. The inner diameter of the nut is 4.25mm. The nut fits a 10mm wrench. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed operation.
