Touring Side-Panel Lock Repair Piece

ABS · PETG1 FILECC-BYInterior

PART RECORDREF 1127

PART: Touring Side-Panel Lock Repair Piece
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1127QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1127

[01]Repair - Touring boot side cover.STLRepair - Touring boot side cover.STL.STL
[02]Bounding box41.300 × 29.400 × 10.300 mm
[03]Volume3,659.479 mm³

Field notes

BY MARTIJN DEMEULEMEESTER

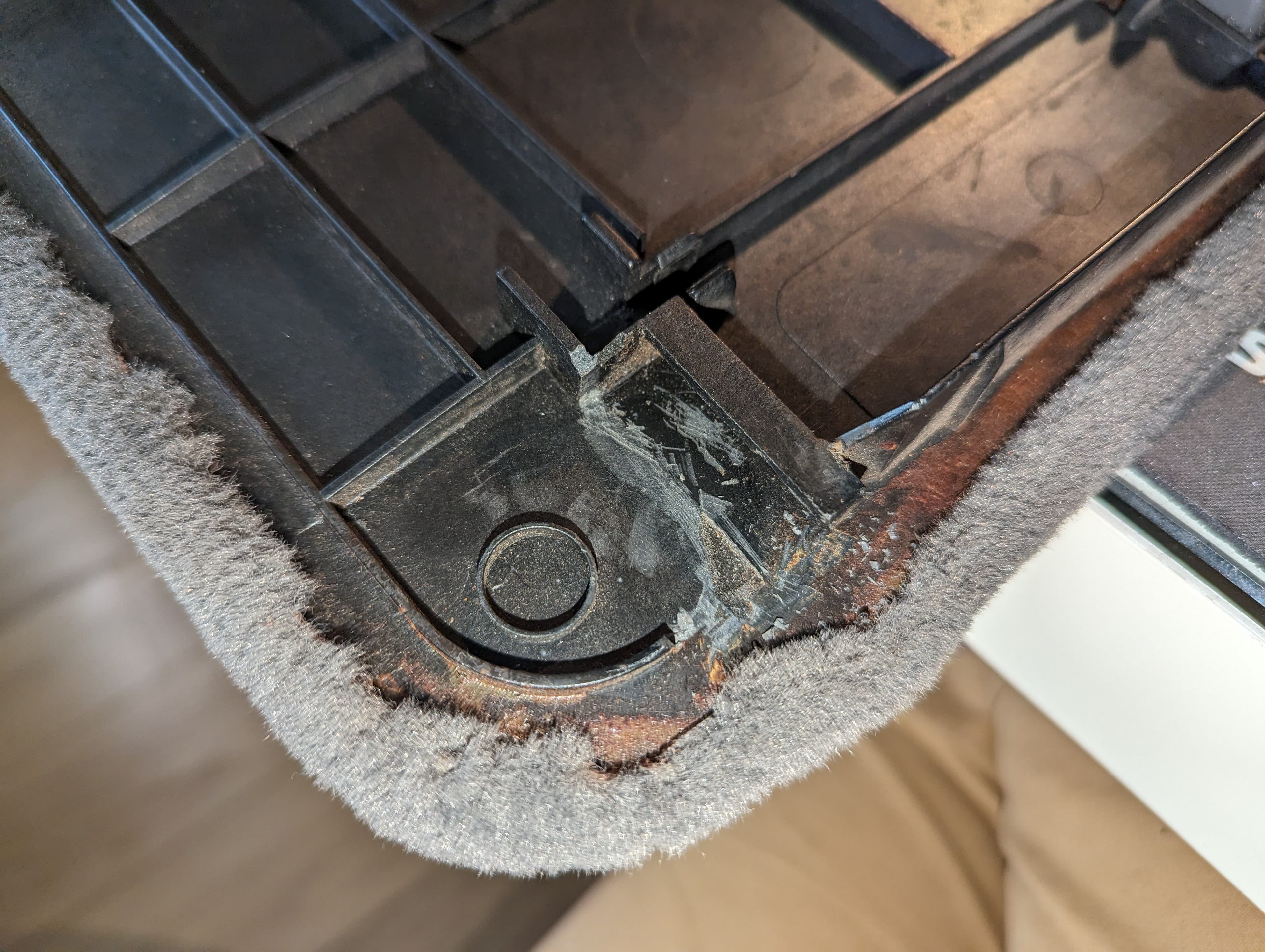

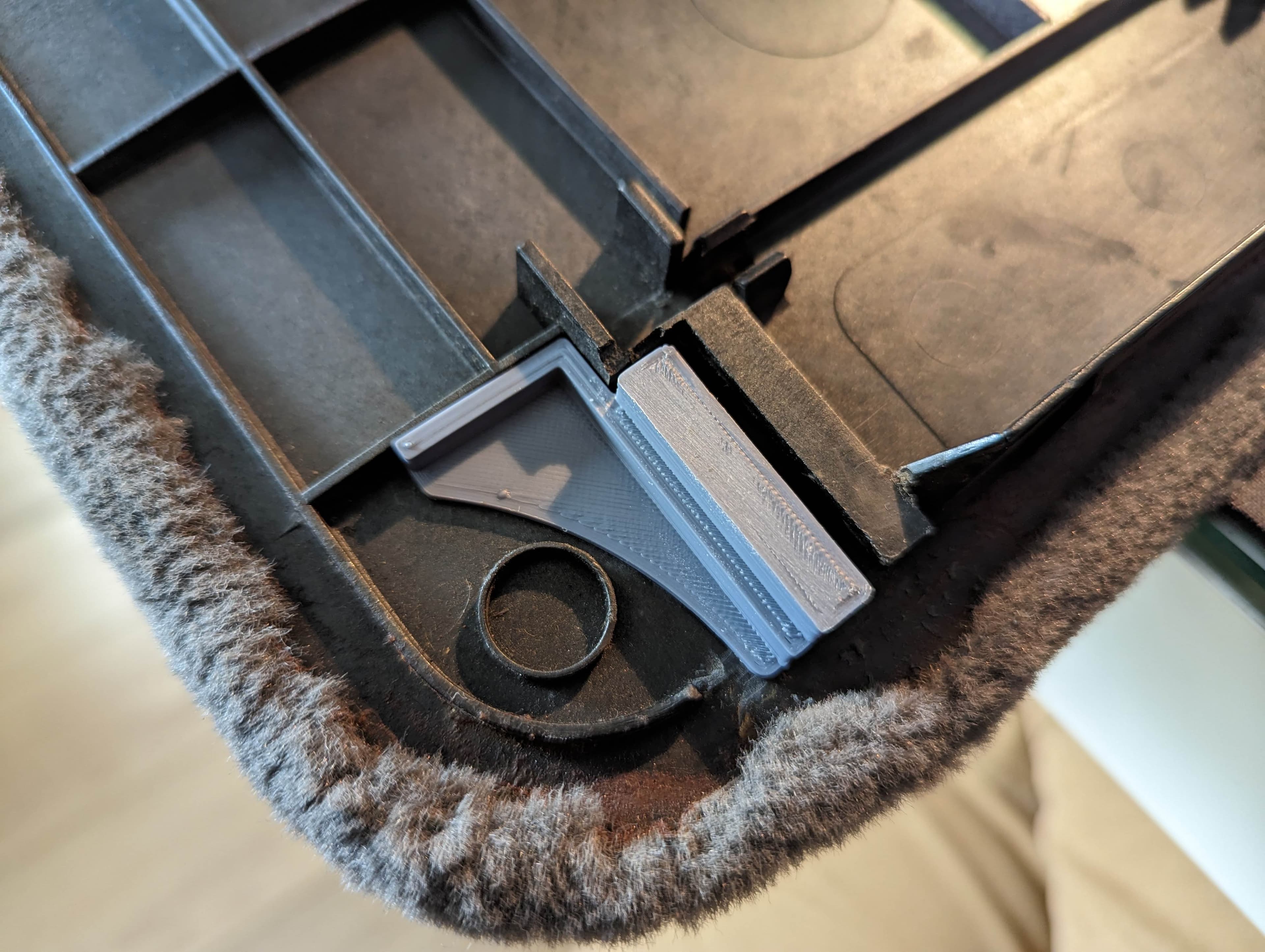

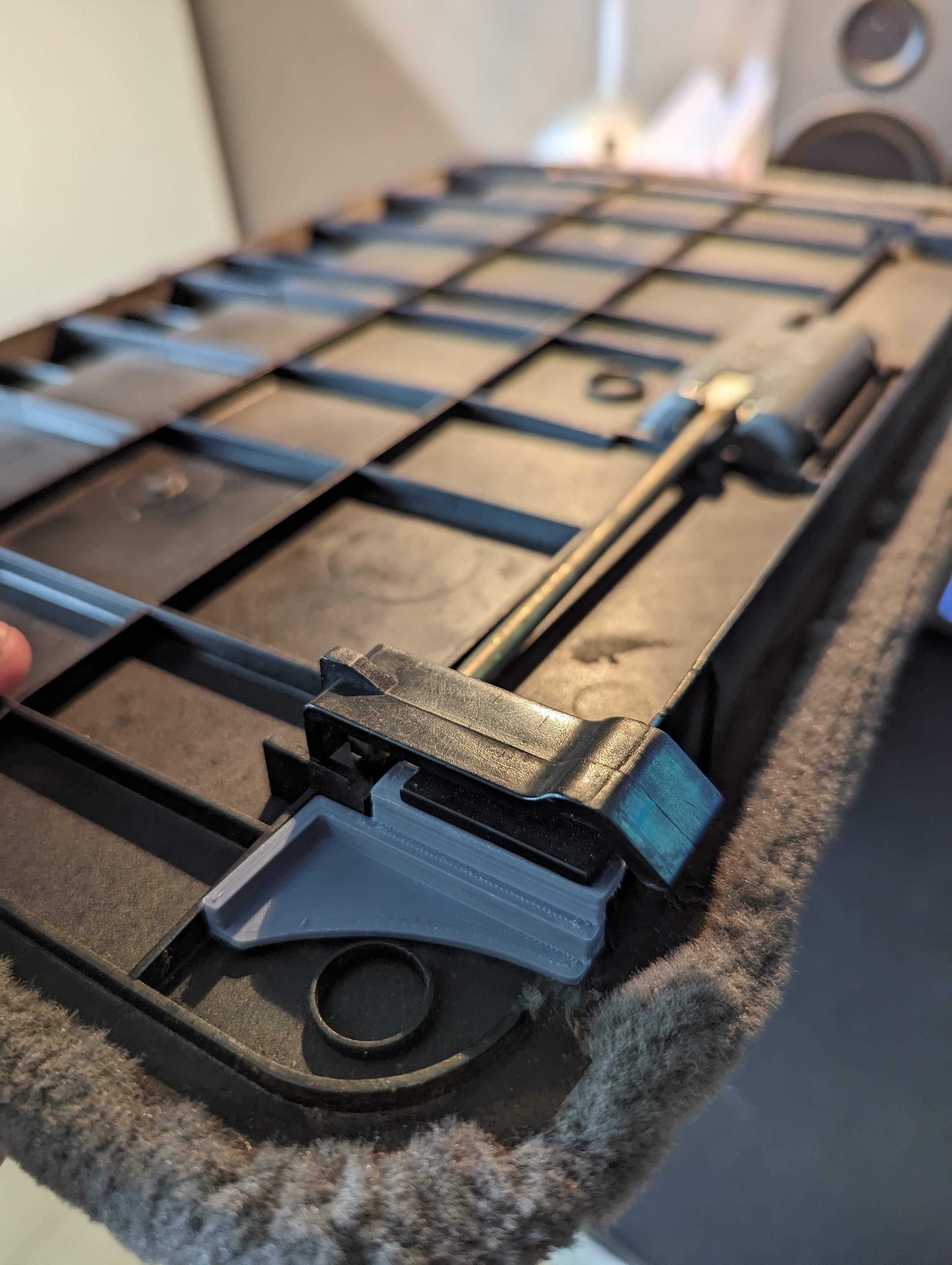

Bond-on repair for a broken outer lock section on E30 Touring luggage-compartment side panels, physically demonstrated on an iX panel and mirrorable for either outer side. The referenced latch and spring are separate components and are not assigned.
