tii Clock Shroud

ABS · PETG1 FILECC-BYDashboard
PART RECORDREF 1445
PART
tii Clock Shroud
OEM
FITS
02 Series Type 114 / E10
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1445QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
3 PLATES
Plate 1 of 3
PLATE 01 / 03No caption recorded
Build sheet
MAN-1445
  • [01]Shroud_normal.STL.STL
  • [02]Bounding box68.200 × 67.500 × 30.000 mm
  • [03]Volume15,998.296 mm³
Field notes
BY TRIEU LY (TSINGTAO_1903)

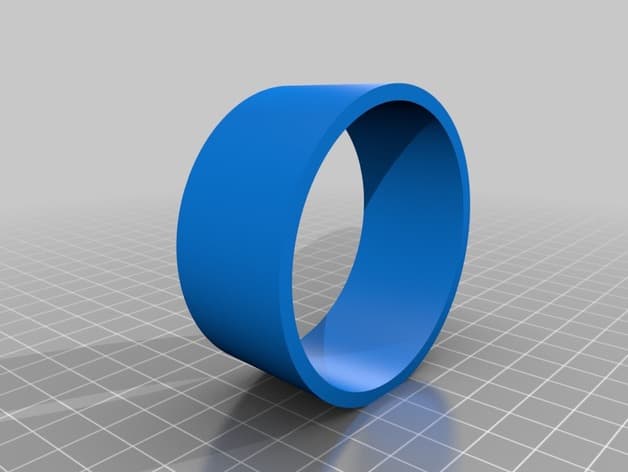

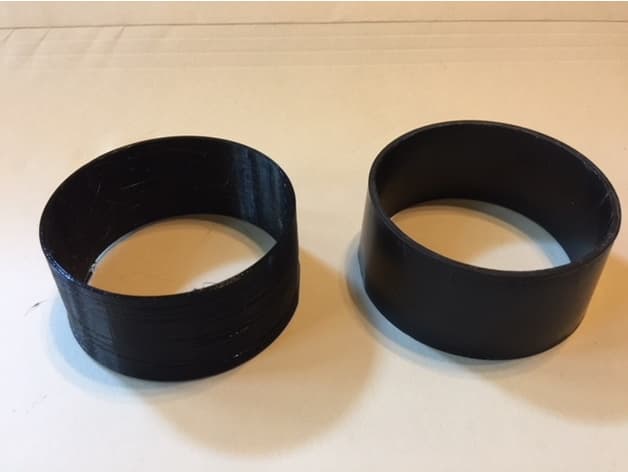

Shroud for the dashboard clock used in 2002 tii applications. The preserved gallery shows loose physical clock-and-shroud assemblies as well as the model render. This is an accessory around the clock rather than the complete clock or dashboard assembly, so no parent OEM number is assigned. Use cabin-heat-resistant material and compare the clock opening, depth and dashboard clearance before final installation.
