Sunroof Sliding-Jaw Repair

REPLACES OEM54121933550

ABS · NylonMULTI-PART3 FILESCC-BY-NC-SAHeadlining

PART RECORDREF 1133

PART: Sunroof Sliding-Jaw Repair
OEM: 54121933550
FITS: 3 Series E30, 5 Series E28

Loading 3D viewer...

PART ID · BIMMER-3D / 1133QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

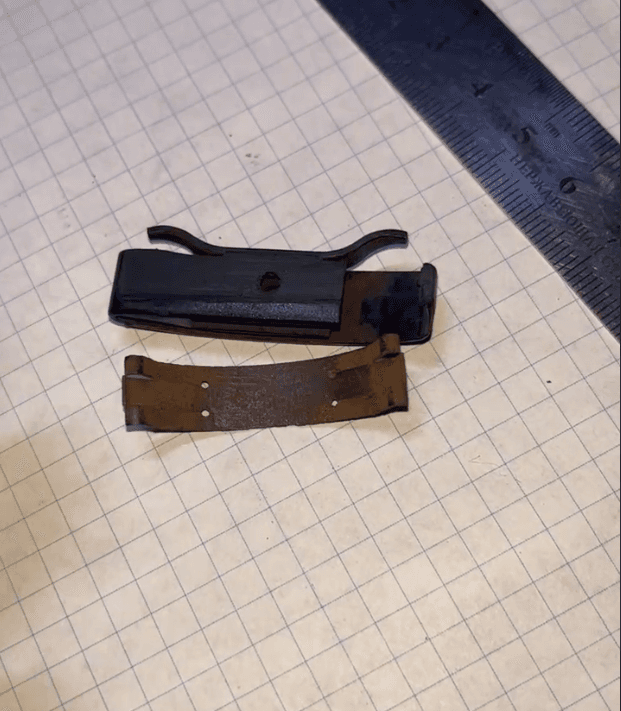

PLATE 01 / 06No caption recorded

Build sheet

MAN-1133

[01]bmwe30_sunroof_slidingjaw54-12-1-933-550-v6.stlbmwe30_sunroof_slidingjaw54-12-1-933-550-v6.stl.STL
[02]part_1.stlpart_1.stl.STL
[03]part_2.stlpart_2.stl.STL
[04]Bounding box44.000 × 30.746 × 8.512 mm
[05]Volume3,873.194 mm³

Field notes

BY KOTYARKO_O

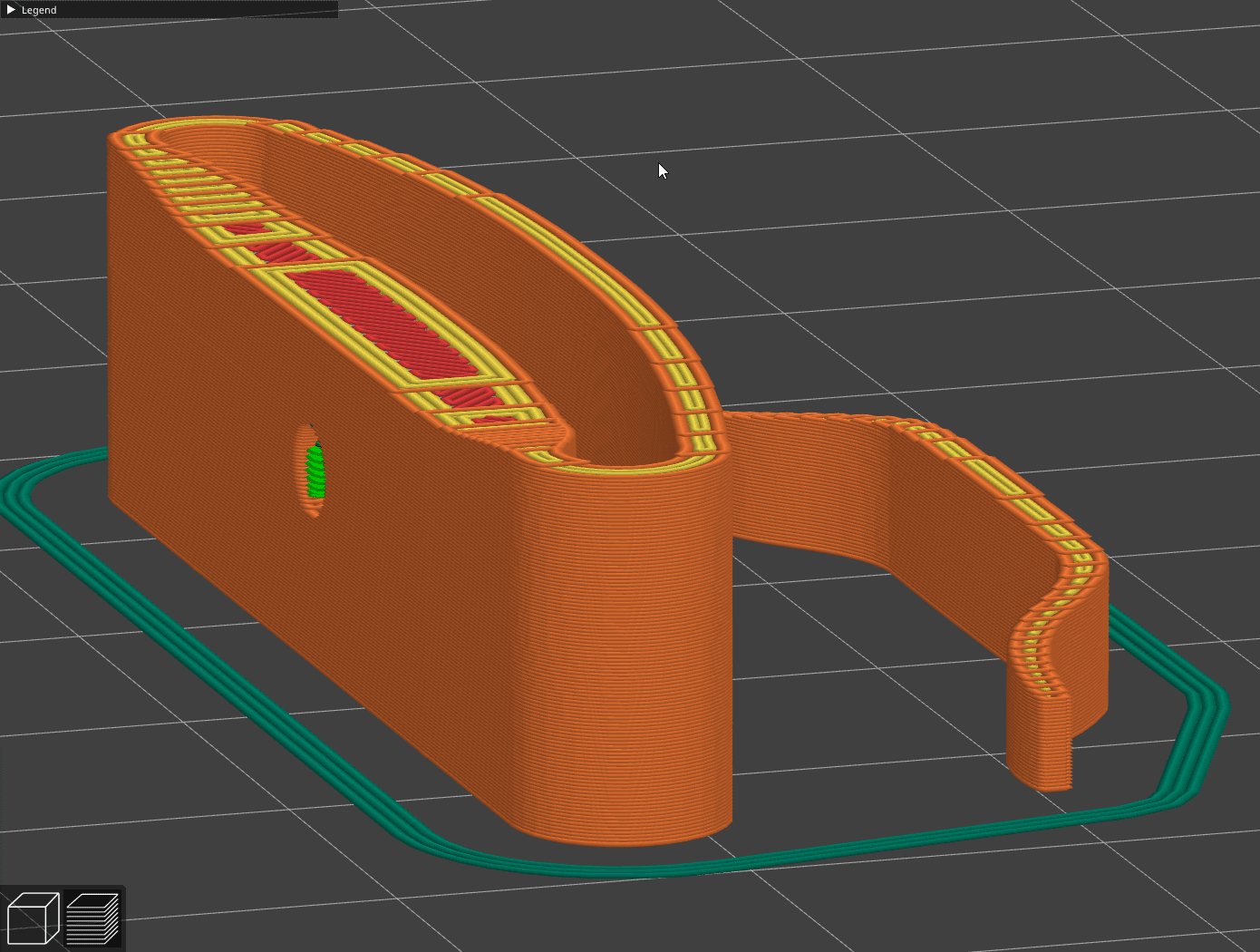

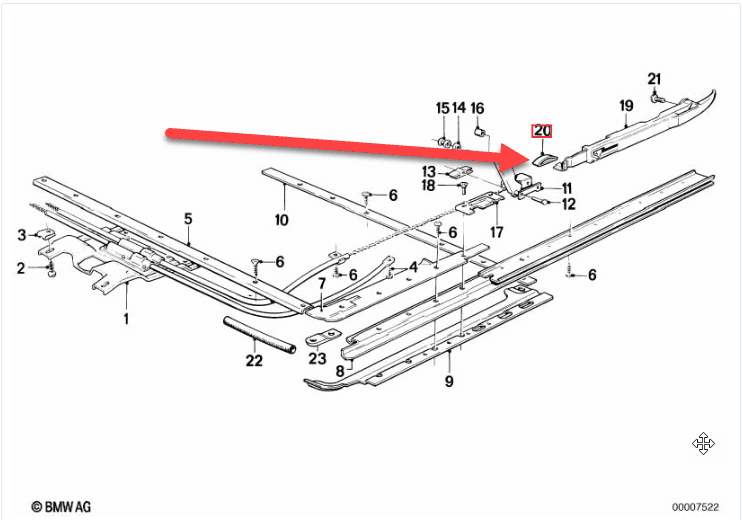

Replacement sliding jaw for E30 and E28 sunroof mechanisms, copied from the original and physically compared. The source provides a load-oriented two-piece print option; BMWFans confirms sliding jaw 54121933550. Verify full sunroof travel before road use.

View original source ↗
