Sunglasses-Cubby Triple 52 mm Gauge Panel

ABS · PETG1 FILECC-BYDashboard

PART RECORDREF 1146

PART: Sunglasses-Cubby Triple 52 mm Gauge Panel
OEM: —
FITS: 3 Series E36

Loading 3D viewer...

PART ID · BIMMER-3D / 1146QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1146

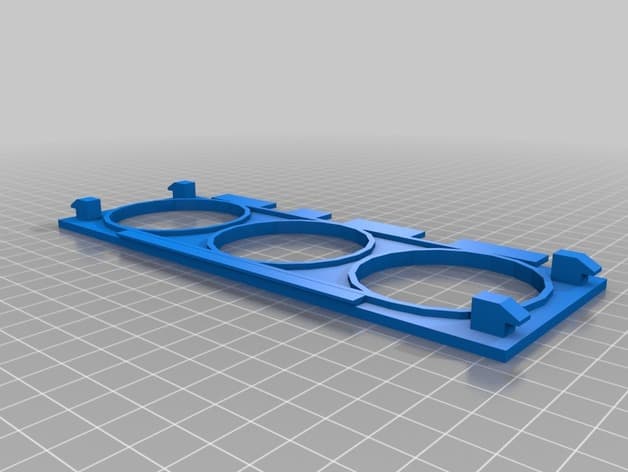

[01]E36_Gauge_cluster_modified.stlE36_Gauge_cluster_modified.stl.STL
[02]Bounding box188.000 × 72.700 × 11.000 mm
[03]Volume25,114.303 mm³

Field notes

BY AVERY BRACHER (XPOORLOCKERBOYX)

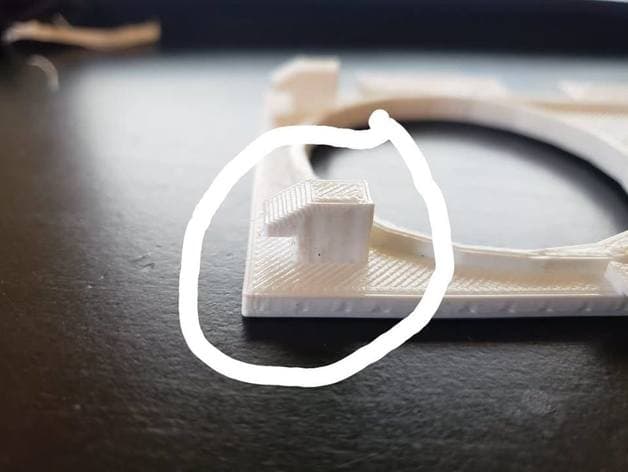

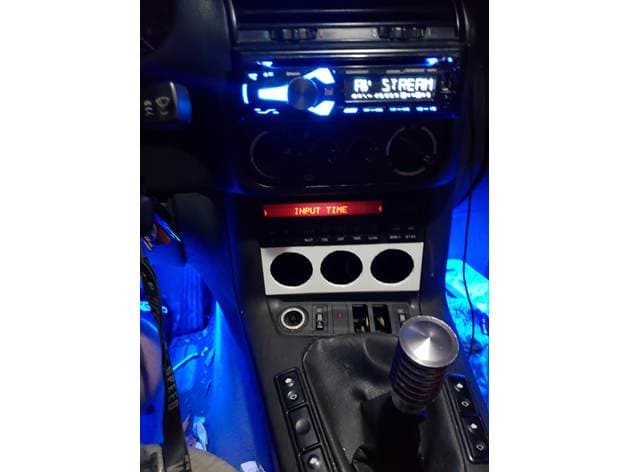

Three-gauge panel for the E36 sunglasses cubby, physically installed after widening the side clips by 2 mm. The uploaded orientation is for RHD; the creator directs LHD cars to mirror the model. Cutting the original cubby is required, so dry-fit the panel and preserve OBC and switch clearance.
