Side-Repeater Electrical Connector Housing

ABS · PETG1 FILECC-BYElectrical

PART RECORDREF 1276

PART: Side-Repeater Electrical Connector Housing
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1276QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

9 PLATES

PLATE 01 / 09No caption recorded

Build sheet

MAN-1276

[01]Blinker-bmw_connector.stlBlinker-bmw_connector.stl.STL
[02]Bounding box22.000 × 18.000 × 15.408 mm
[03]Volume3,297.171 mm³

Field notes

BY SEBASTIJAN FRANK (SEBASTIJAN)

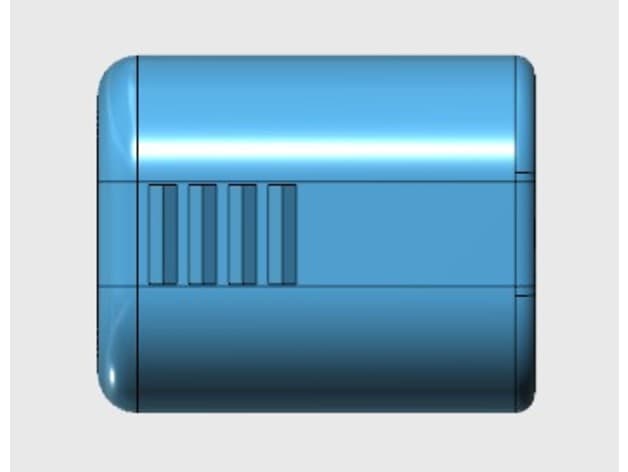

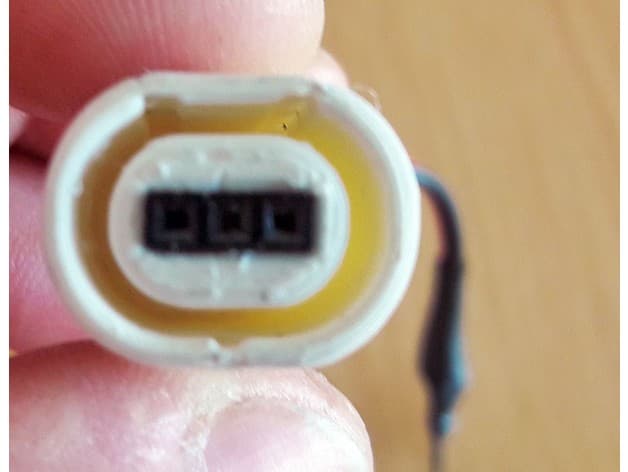

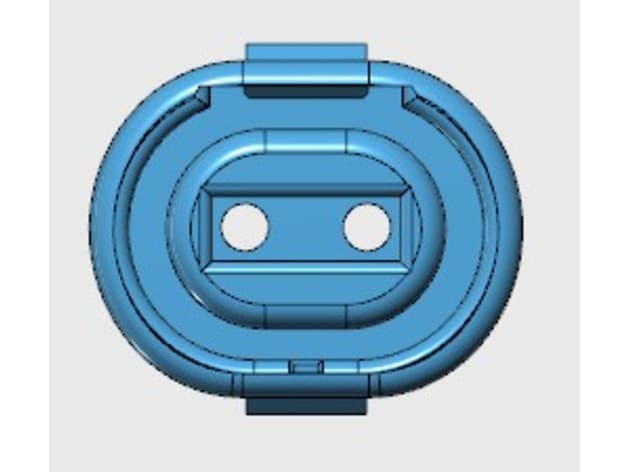

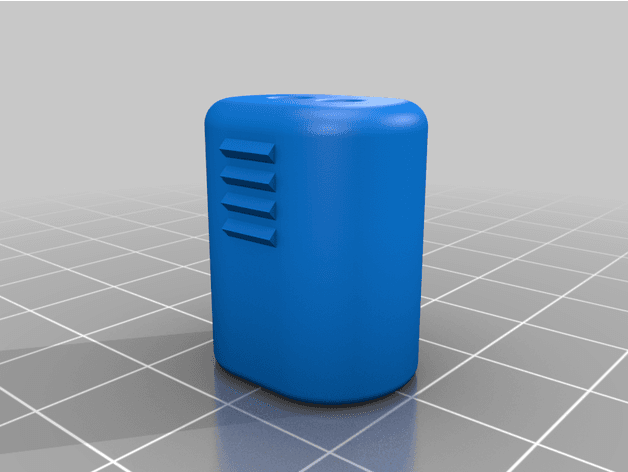

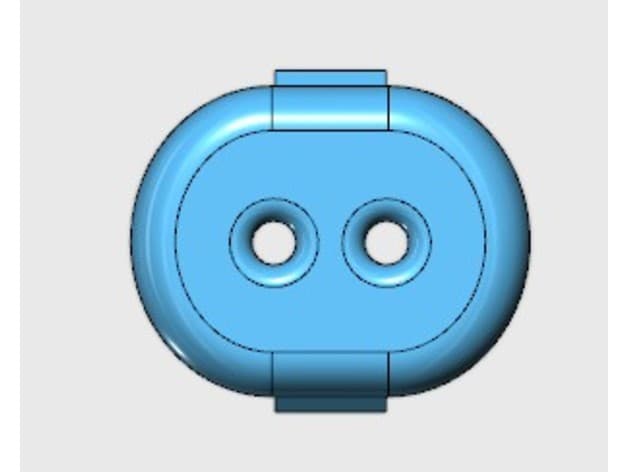

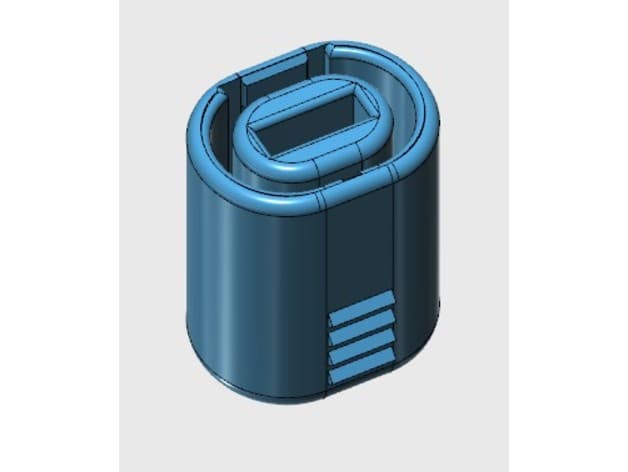

Adapter for side led blinker - bmw e90 Use automotive-rated wiring and connectors, retain fuse protection, insulate every terminal and verify unobstructed operation.
