Seat-Rail and Seat-Belt Nut Cover

ABS · PETG1 FILECC-BYSeats

PART RECORDREF 1097

PART: Seat-Rail and Seat-Belt Nut Cover
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1097QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

PLATE 01 / 01No caption recorded

Build sheet

MAN-1097

[01]Abdeckung_E30.stlAbdeckung_E30.stl.STL
[02]Bounding box21.000 × 20.990 × 10.500 mm
[03]Volume849.391 mm³

Field notes

BY JOERG WEBER (TORMENTOR22)

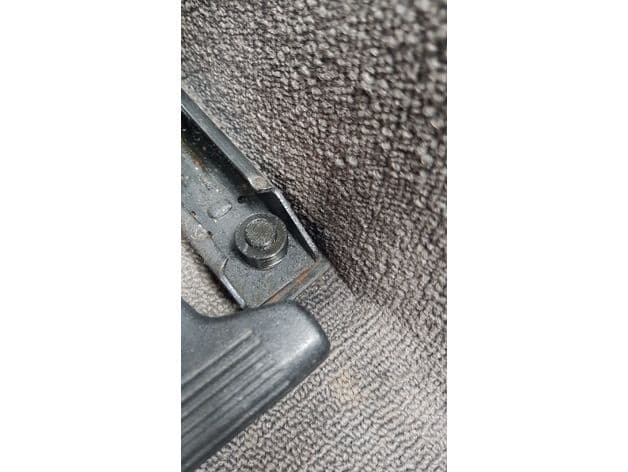

Replacement trim cover for exposed E30 seat-rail and seat-belt anchorage nuts. Match the installed fastener size and ensure the cover does not interfere with seat travel or belt hardware.

View original source ↗
