Seat-Mechanism Cover Screw

ABS · PETG1 FILECC-BY-NCSeats

PART RECORDREF 1125

PART: Seat-Mechanism Cover Screw
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1125QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1125

[01]e30_seat_mech_screw-v3.1.stle30_seat_mech_screw-v3.1.stl.STL
[02]Bounding box18.083 × 14.108 × 14.026 mm
[03]Volume917.917 mm³

Field notes

BY OML4D

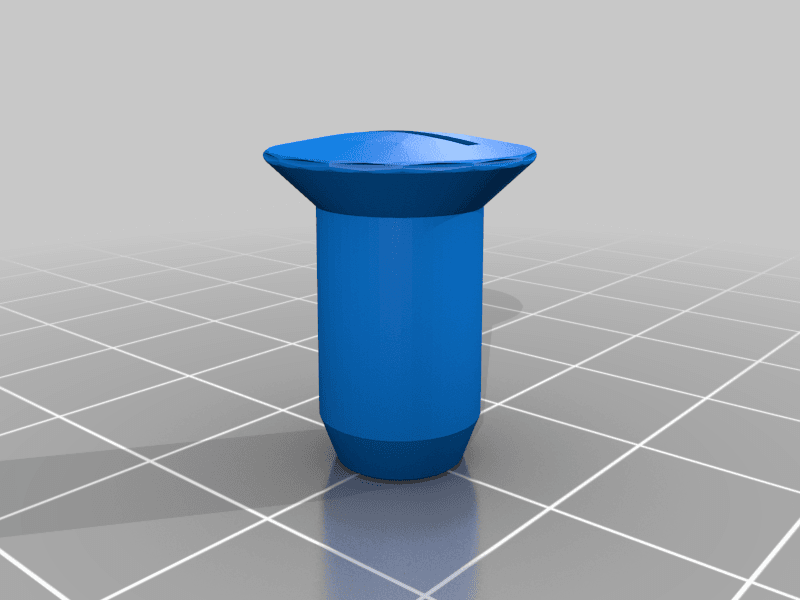

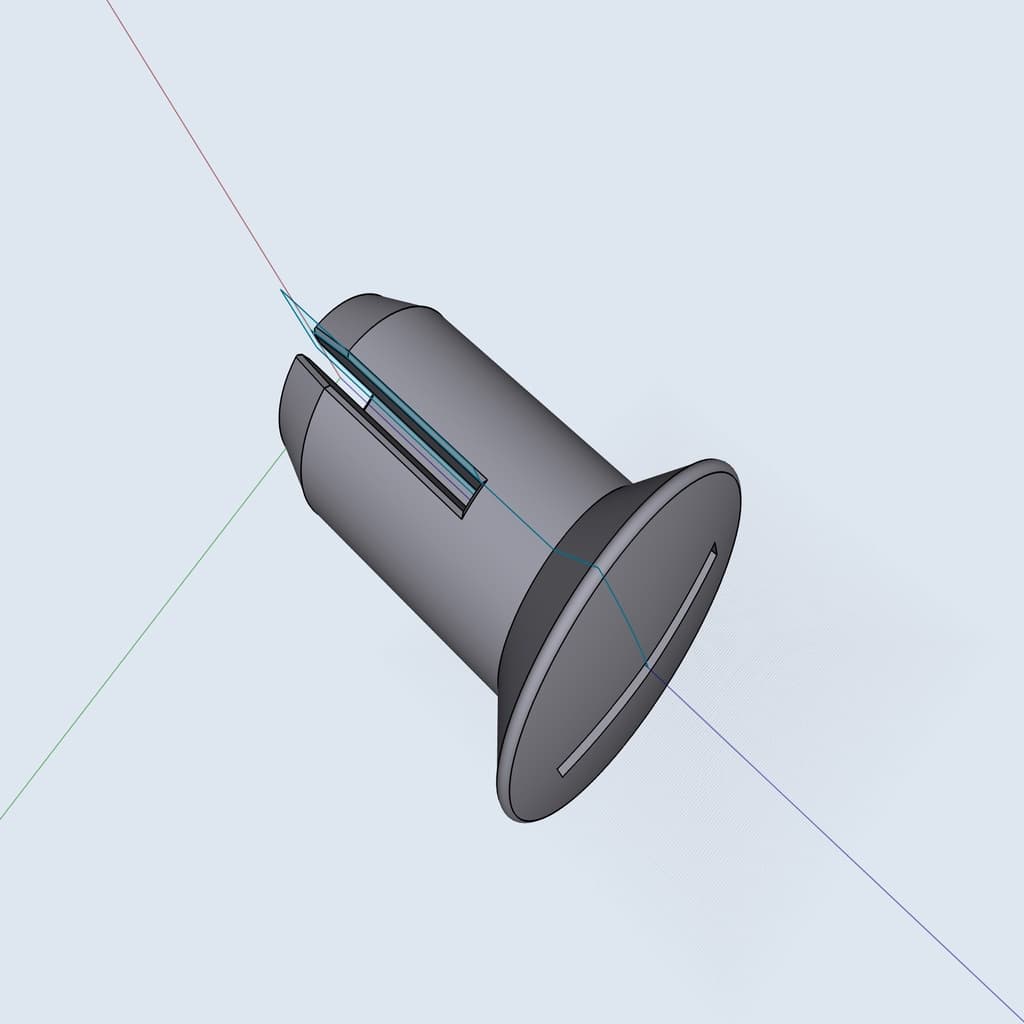

Replacement slotted screw for retaining E30 seat-mechanism covers. The creator printed and tested revision 3.1 with a deeper screwdriver slot. Tighten only enough to retain the trim.

View original source ↗
