Right Headlight Support Bracket

REPLACES OEM51647285598

ABS · PETG1 FILE2 DOWNLOADSCC-BY-NC-SAExterior lighting, cameras & sensors

PART RECORDREF 1308

PART: Right Headlight Support Bracket
OEM: 51647285598
FITS: 3 Series F30 / F31 / F34 / F80

Loading 3D viewer...

PART ID · BIMMER-3D / 1308QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

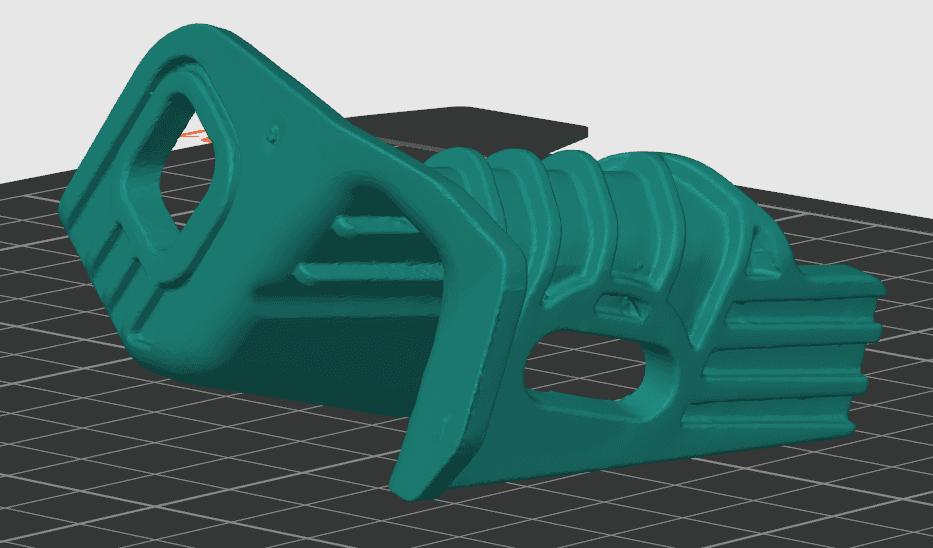

Right Headlight Support Bracket — image 1 of 2

PLATE 01 / 02No caption recorded

Build sheet

MAN-1308

[01]ajovalokannake1.3mfajovalokannake1.3mf.STL
[02]Bounding box70.225 × 54.671 × 40.365 mm
[03]Volume14,569.444 mm³

Field notes

BY MANU L

Scanned right-side F30/F31 headlight support bracket shown fitted in place by the creator. Use exterior-rated material and verify retention, weather sealing, lamp aim and washer operation before driving.
