RHD Quad Lock Vent Mount

ABS · PETG1 FILECC-BY-NC-SADashboard

PART RECORDREF 1317

PART: RHD Quad Lock Vent Mount
OEM: —
FITS: 3 Series F30 / F31 / F34 / F80, 4 Series F32 / F33 / F36 / F82 / F83

Loading 3D viewer...

PART ID · BIMMER-3D / 1317QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

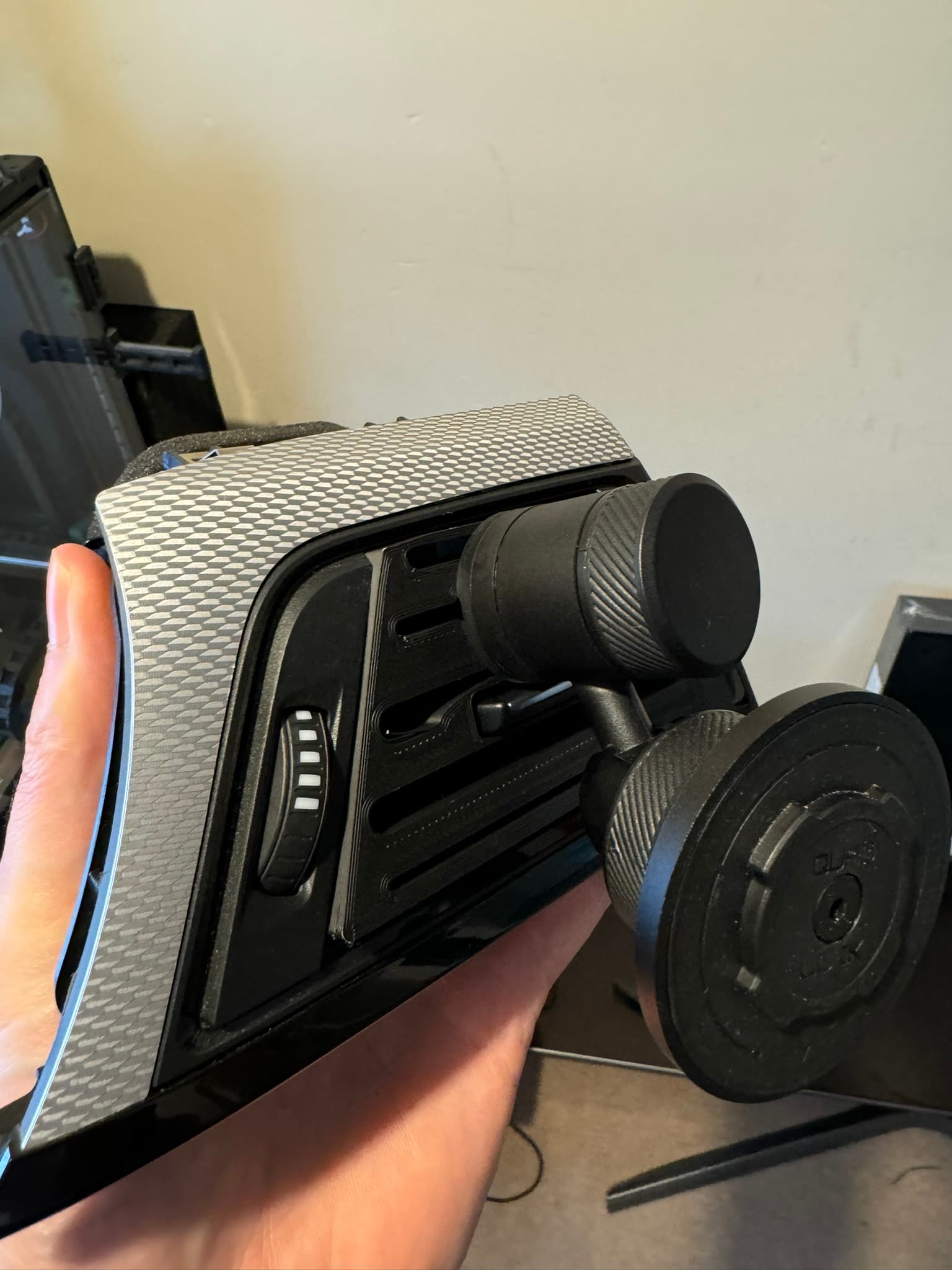

PLATE 01 / 02No caption recorded

Build sheet

MAN-1317

[01]bmw-vent.stlbmw-vent.stl.STL
[02]Bounding box107.977 × 64.436 × 19.500 mm
[03]Volume43,504.454 mm³

Field notes

BY VECT

Vent support for a Quad Lock phone interface, physically demonstrated on the right-hand-drive driver's-side center vent shared by the creator-listed BMW F30, F31 and F32. Fitment is limited to those bodies and RHD placement; F33/F36 and LHD fitment are not inferred. Use cabin-heat-resistant material, tighten without damaging the vent, and verify full vent, display, control and sightline clearance before driving.

View original source ↗
