Positive Battery Terminal Cap

ABS · PETG1 FILECC-BY-SAElectrical

PART RECORDREF 1255

PART: Positive Battery Terminal Cap
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1255QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-1255

[01]BMW_Plus_Terminal_3.stlBMW_Plus_Terminal_3.stl.STL

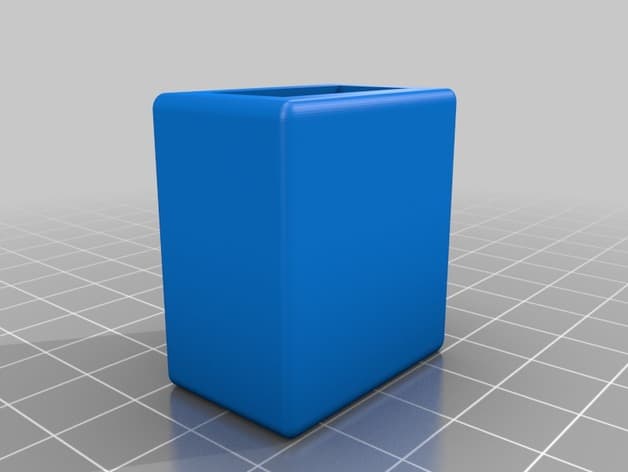

[02]Bounding box34.000 × 31.000 × 20.000 mm
[03]Volume13,753.328 mm³

Field notes

BY GREGORY YOUNG (GREGOR9)

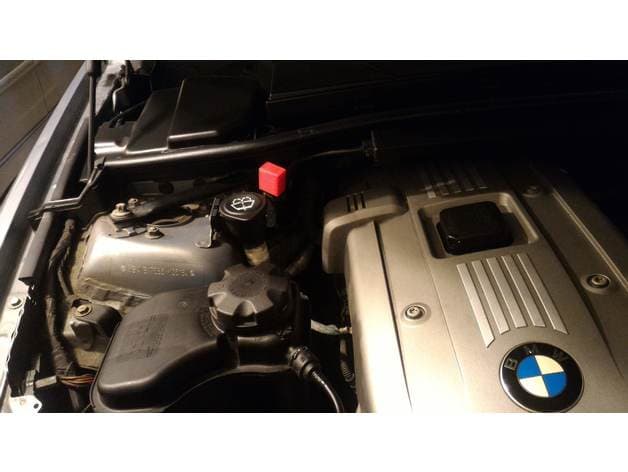

This is the cap for the positive battery terminal for a BMW E90. It should fit just about any BMW. Use automotive-rated wiring and connectors, retain fuse protection, insulate every terminal and verify unobstructed operation.
