PART №1095
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026

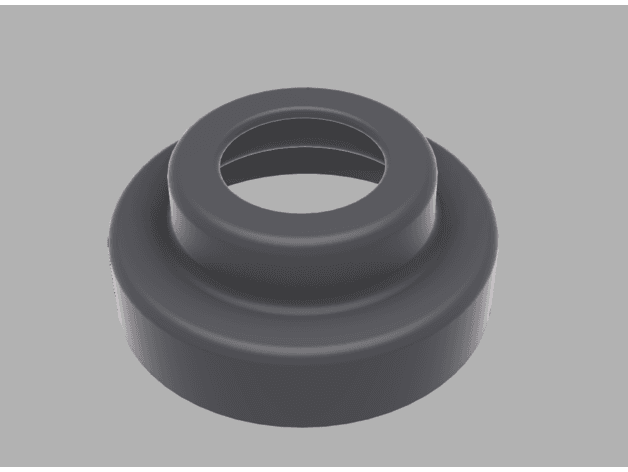

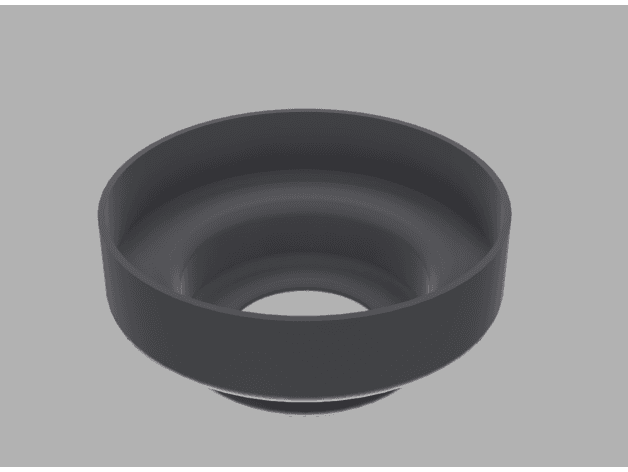

Passenger-Side Wiper-Arm Bushing
REPLACES OEM61611370387
PETG · TPU1 FILECC-BYWipers
- PART
- Passenger-Side Wiper-Arm Bushing
- OEM
- 61611370387
- FITS
- 3 Series E30
Loading 3D viewer...
PART ID · BIMMER-3D / 1095QTY 1 · STLHANDLE · NO SUPPORTS

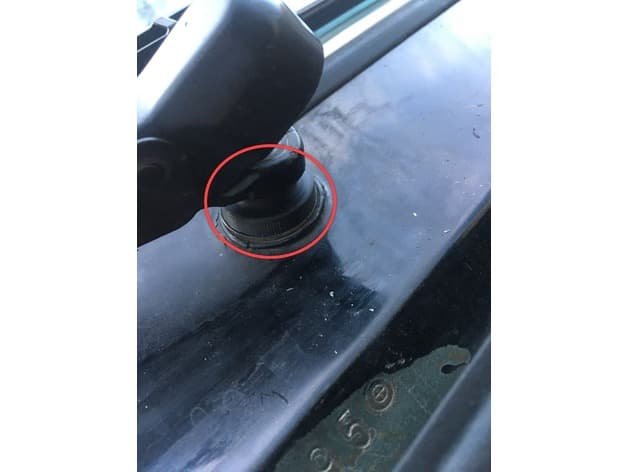

Field photographs
5 PLATES

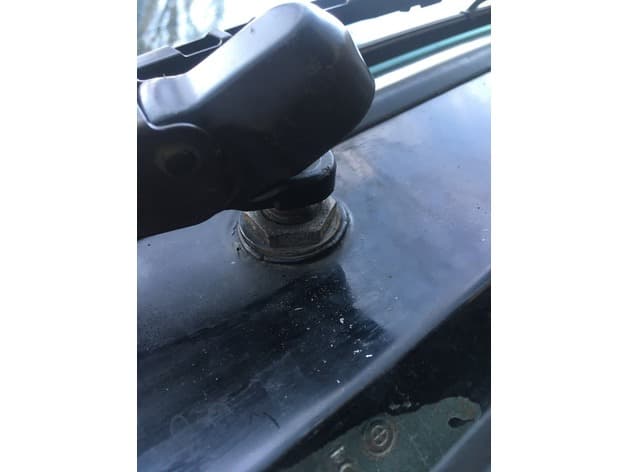

PLATE 01 / 05No caption recorded
Build sheet
MAN-1095- [01]BmwE30_wiperArmBushing_v3.stlBmwE30_wiperArmBushing_v3.stl.STL
- [02]Bounding box26.497 × 26.494 × 11.500 mm
- [03]Volume813.584 mm³
Field notes

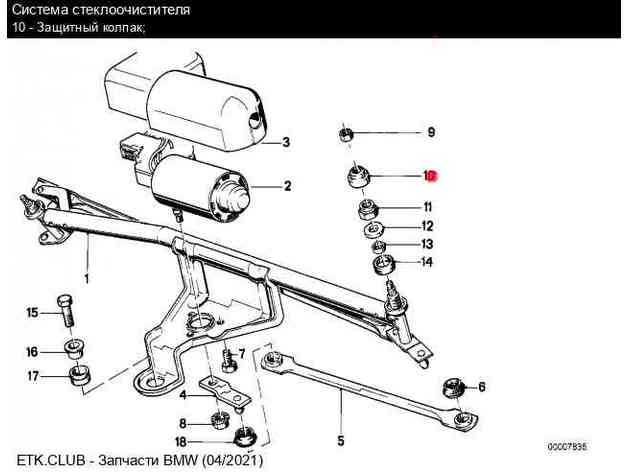

BY DMITRY WITHOUTLASTNAME (KOTYARKO_O)Replacement bushing for the E30 wiper-arm pivot on the passenger side of LHD cars or driver side of RHD cars. It is dimensioned for the standard M22×5.5 nut and physically fitted; BMWFans identifies 61611370387 as the corresponding covering cap.
