Parcel-Shelf Retaining Hook

ABS · Nylon · PETG2 FILESCC-BY-NC-SAInterior

PART RECORDREF 1064

PART: Parcel-Shelf Retaining Hook
OEM: —
FITS: 2 Series F45 / F46 Active / Gran Tourer

Loading 3D viewer...

PART ID · BIMMER-3D / 1064QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1064

[01]bmw_kofferraum_abdeckung_haken_komplett_v4.stlbmw_kofferraum_abdeckung_haken_komplett_v4.stl.STL
[02]bmw_kofferraum_abdeckung_haken_komplett_v3.fcstdbmw_kofferraum_abdeckung_haken_komplett_v3.fcstd.STL
[03]Bounding box70.000 × 38.500 × 23.286 mm
[04]Volume13,833.244 mm³

Field notes

BY DUCKY

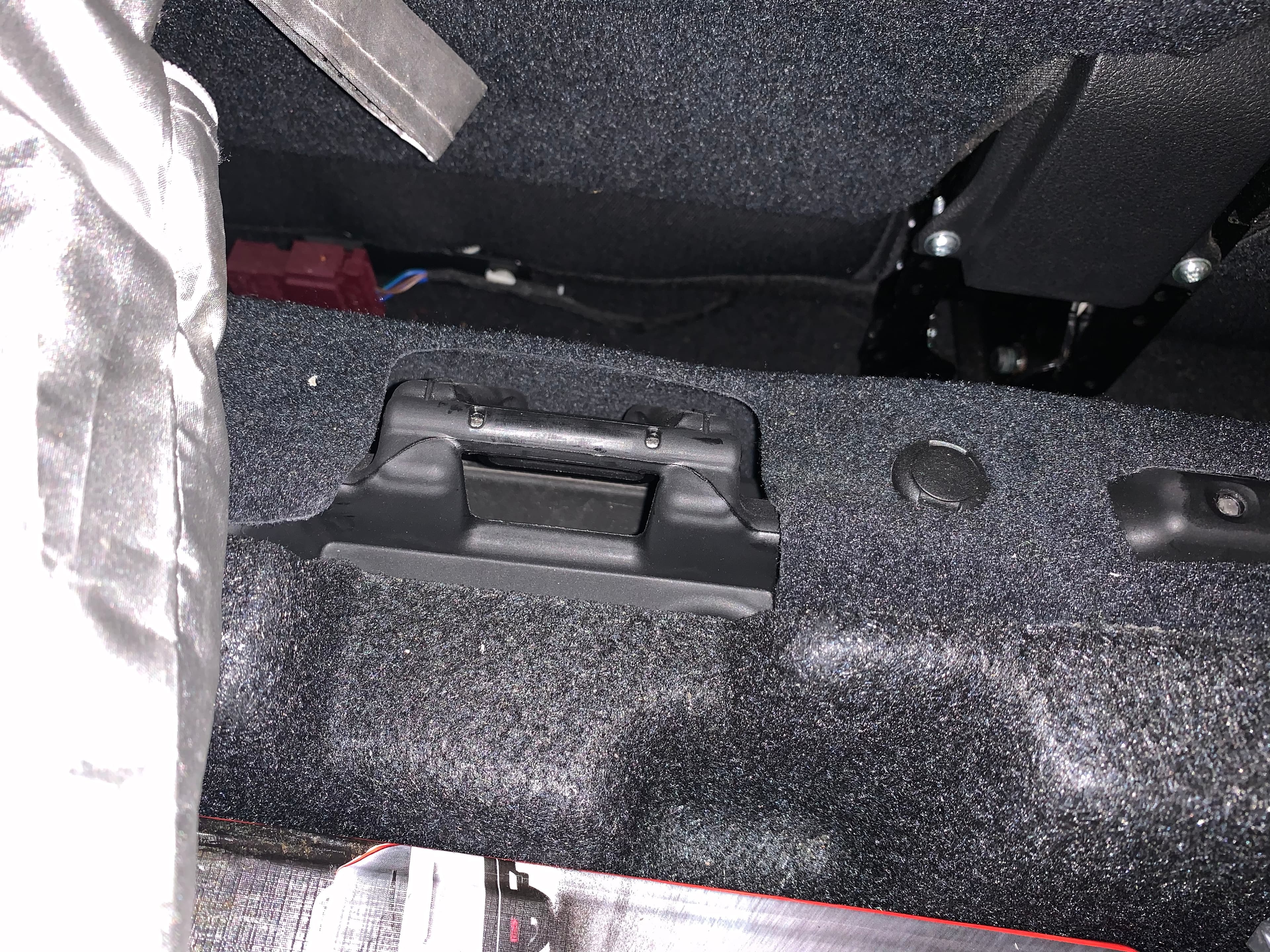

Replacement hook that retains the cargo cover in position on the BMW F45 2 Series Active Tourer. Creator photographs show the physical hook installed; compare mounting orientation and clearances before fitting.

View original source ↗
