New-Style Strut-Mount Dust Cap

ABS · PETG1 FILECC-BYMechanical

PART RECORDREF 1089

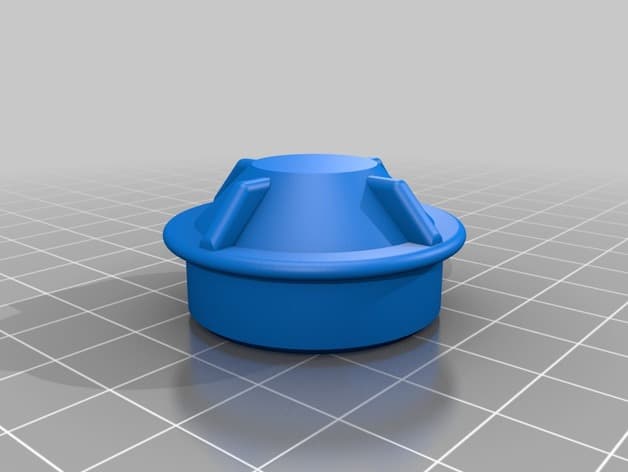

PART: New-Style Strut-Mount Dust Cap
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1089QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1089

[01]Strut_Mount_Cap.stlStrut_Mount_Cap.stl.STL
[02]Bounding box36.359 × 36.357 × 18.094 mm
[03]Volume3,514.564 mm³

Field notes

BY FINGER CHILI (FINGERCHILI)

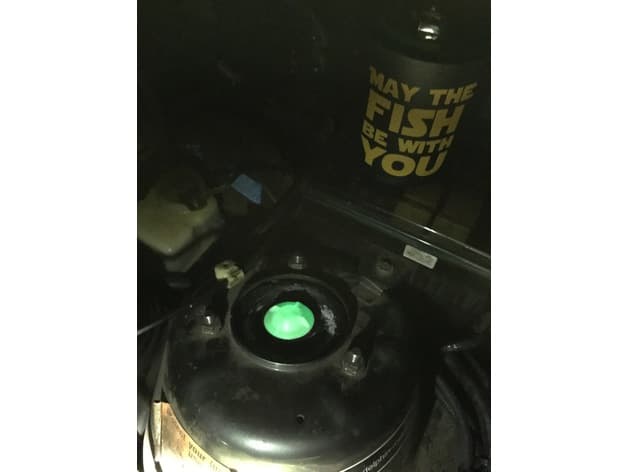

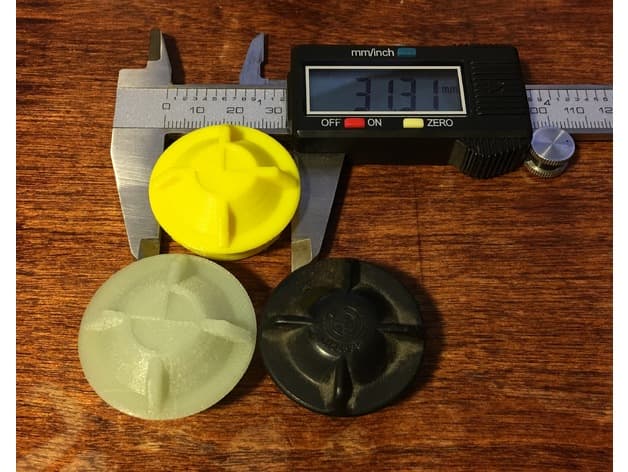

Dust cap for replacement-style E30 front strut mounts with an approximately 31.3–32 mm opening, where the original cap no longer fits. Test-print the retaining ring and adjust scale for the measured mount before making the full cap.
