PART: MotoMeter Instrument-Cluster Odometer Gear Kit
OEM: —
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1104QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-1104

[01]1.petit_engrenage.stl1.petit_engrenage.stl.STL
[02]2.grand_engrenage_rouge.stl2.grand_engrenage_rouge.stl.STL
[03]3.engrenage_moyen_bleu.stl3.engrenage_moyen_bleu.stl.STL
[04]4_.engrenage_noir_sous_le_bleu.stl4_.engrenage_noir_sous_le_bleu.stl.STL
[05]kit_complet_compteur_bmw_e30_Motometer.stlkit_complet_compteur_bmw_e30_Motometer.stl.STL
[06]Bounding box119.000 × 50.000 × 7.000 mm
[07]Volume5,577.481 mm³

Field notes

BY LAURENT LAVIER (LORENZO61183)

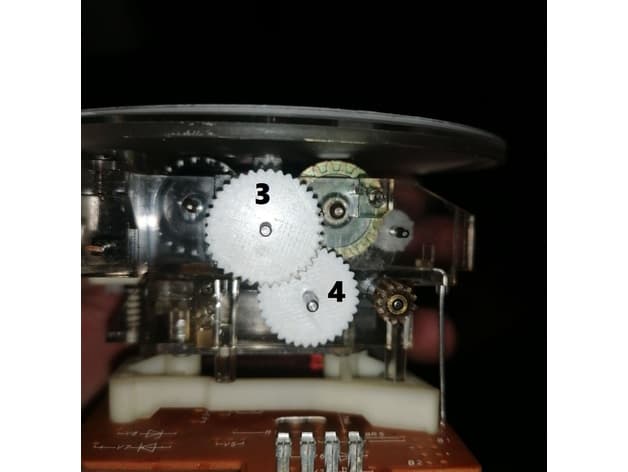

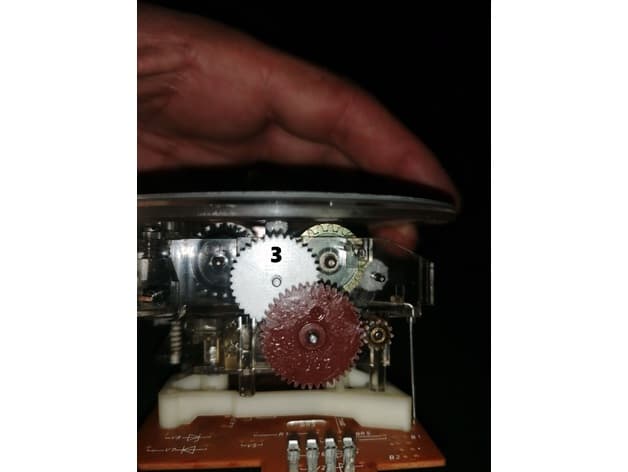

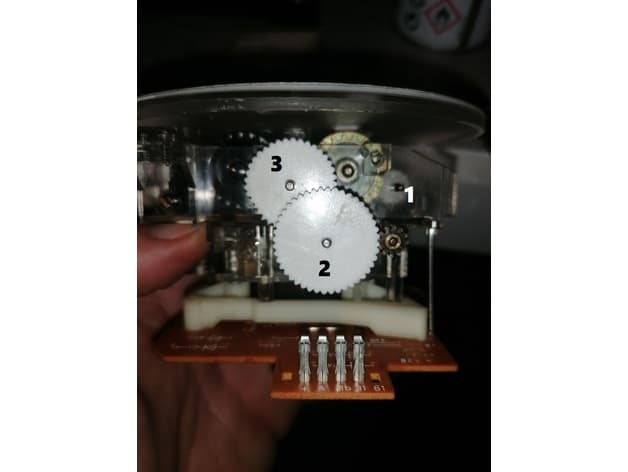

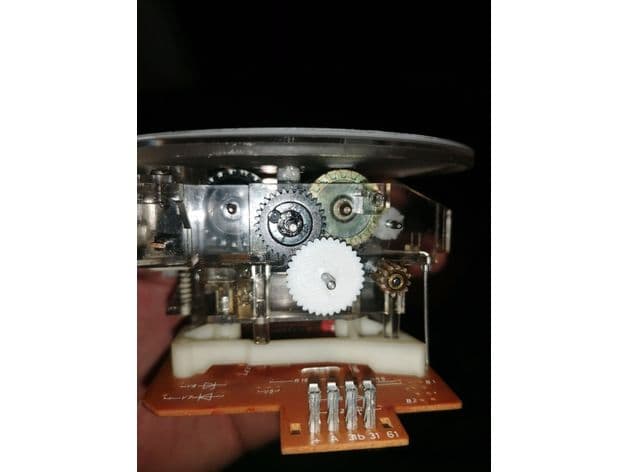

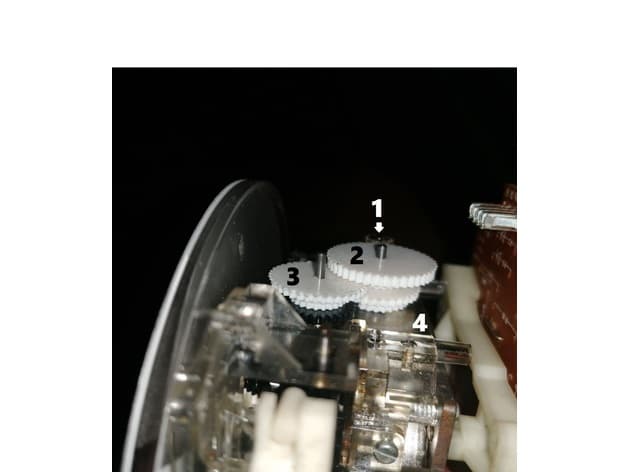

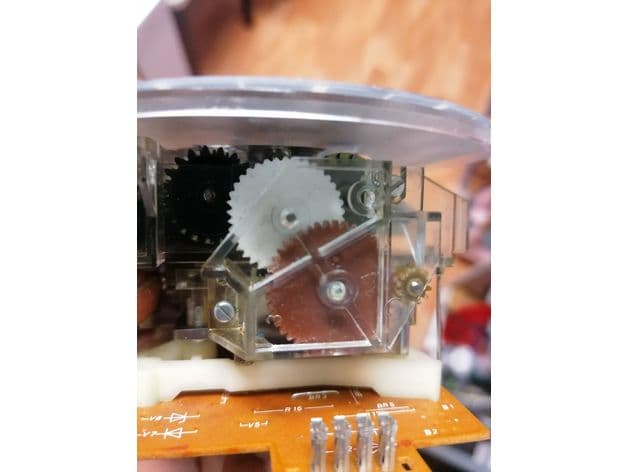

Replacement gear set for BMW E30 MotoMeter odometers, shown against and installed in a physical cluster. Gear numbers in the source are creator labels, not BMW component numbers.
