Luggage-Compartment Jack-Mount Cap

REPLACES OEM51711916269

ABS · PETG1 FILECC-BYInterior

PART RECORDREF 1113

Loading 3D viewer...

PART ID · BIMMER-3D / 1113QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

9 PLATES

PLATE 01 / 09No caption recorded

Build sheet

MAN-1113

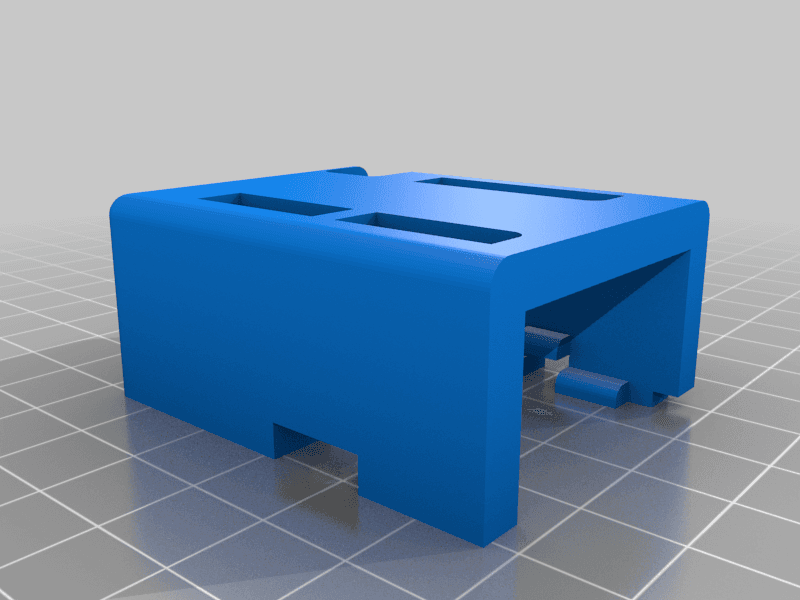

[01]BmwE30_trunkJackMountCap51_71_1_916_269_v6.stlBmwE30_trunkJackMountCap51_71_1_916_269_v6.stl.STL
[02]Bounding box54.000 × 42.000 × 24.000 mm
[03]Volume19,555.673 mm³

Field notes

BY DMITRY BALAGANSKY (KOTYARKO_O)

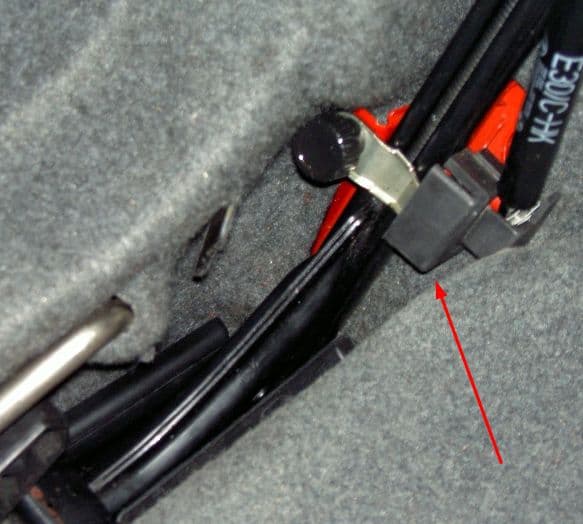

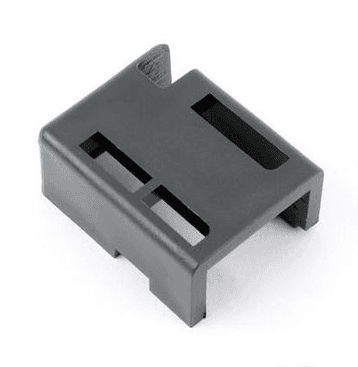

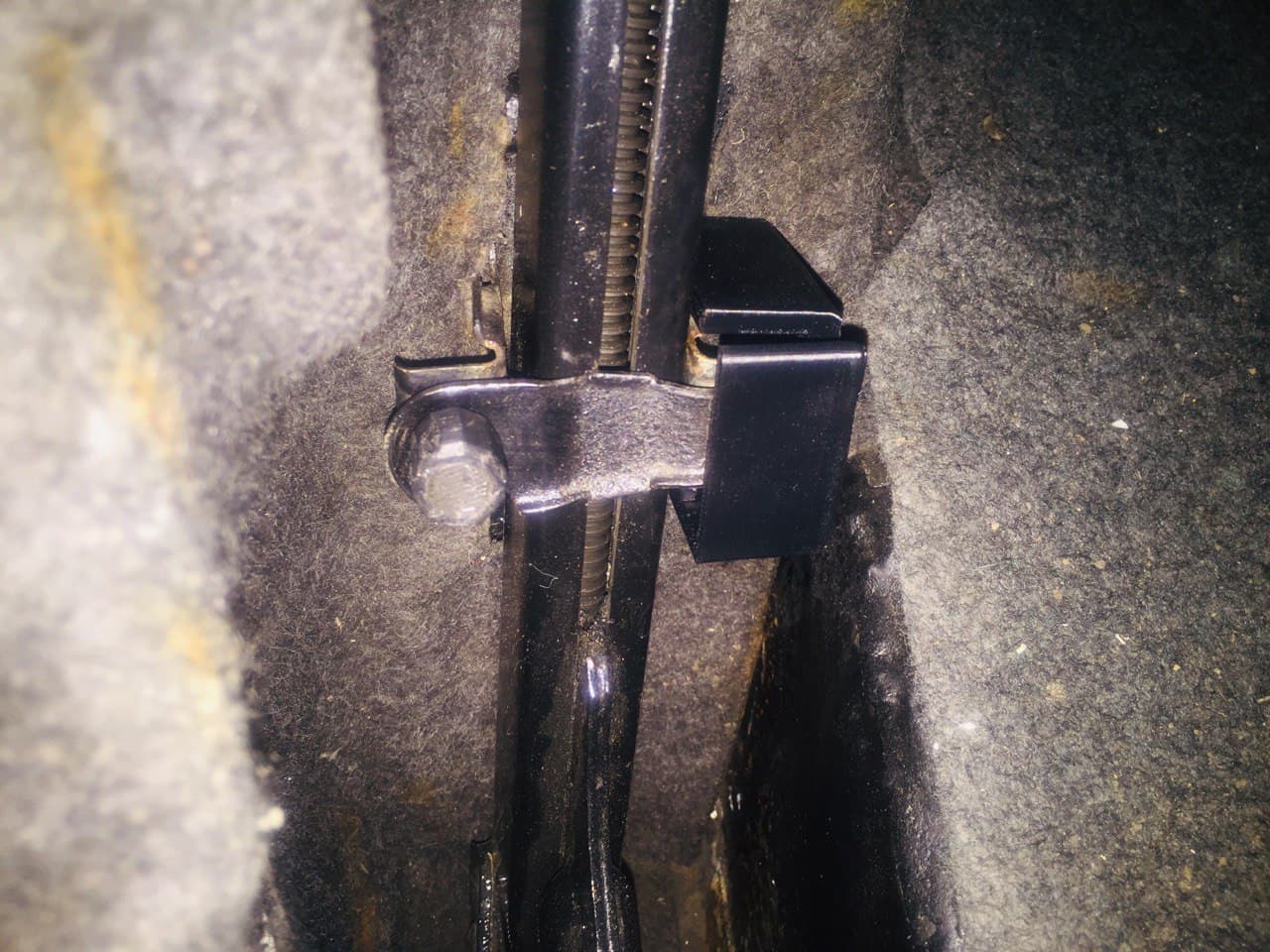

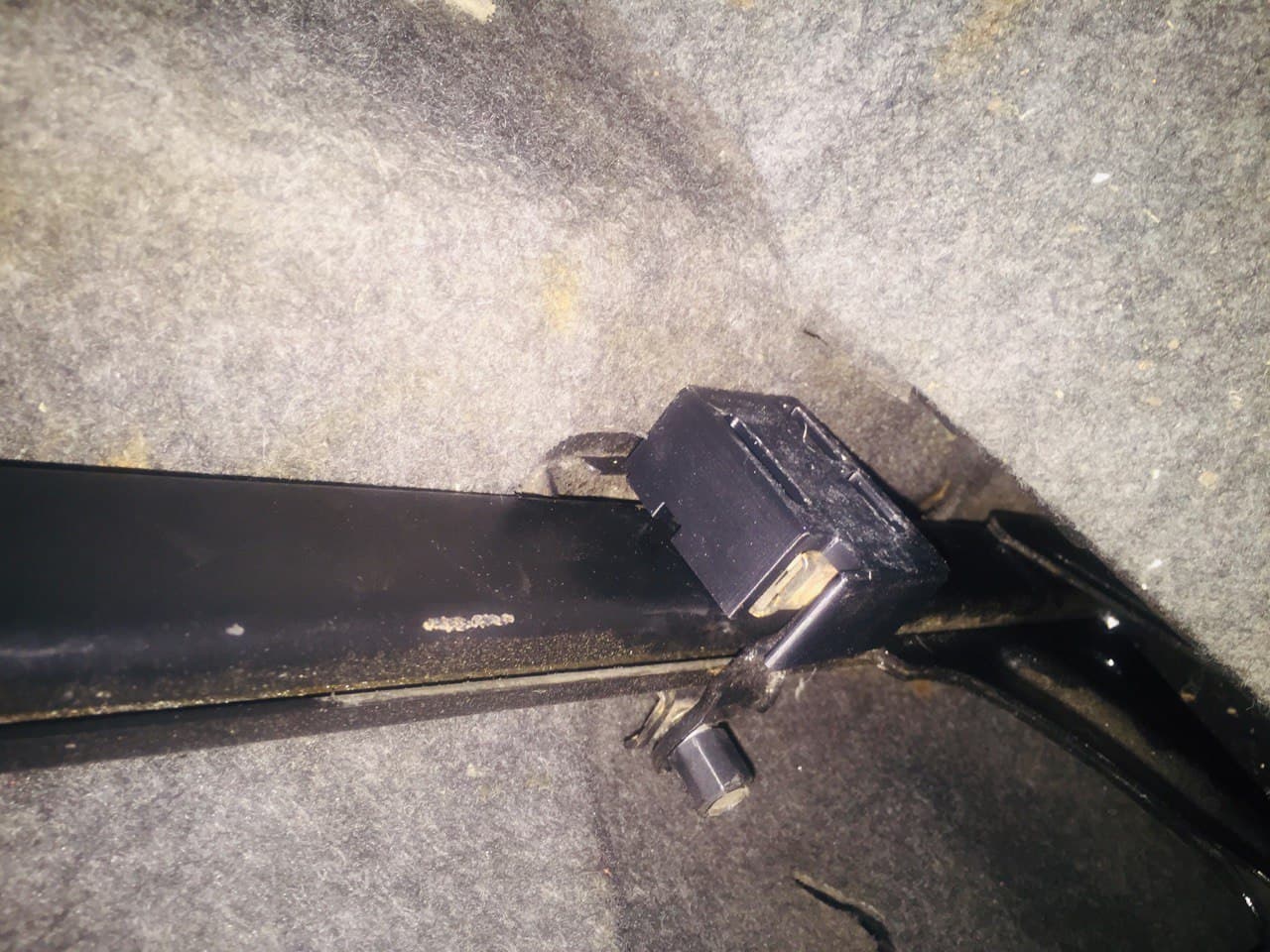

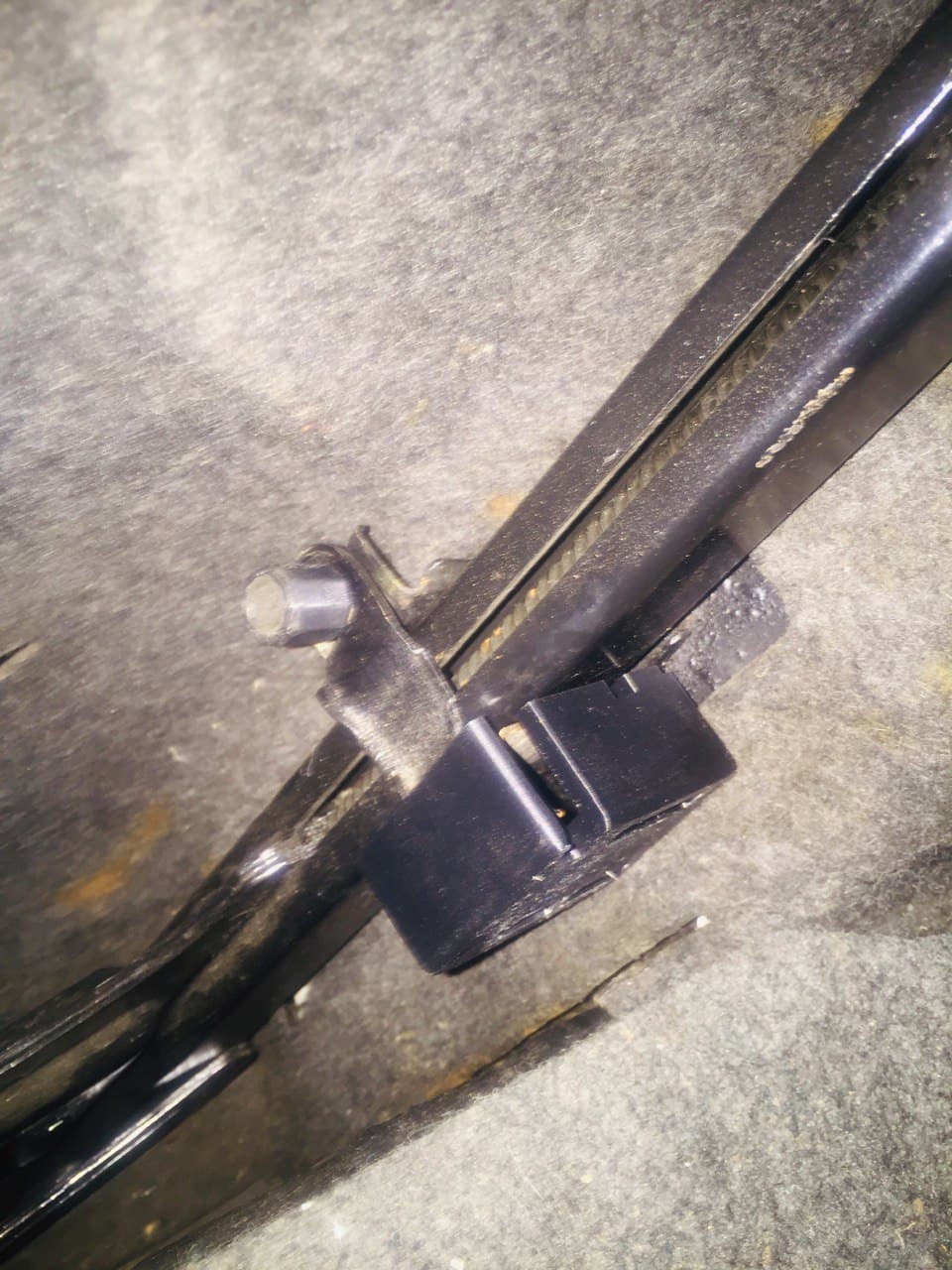

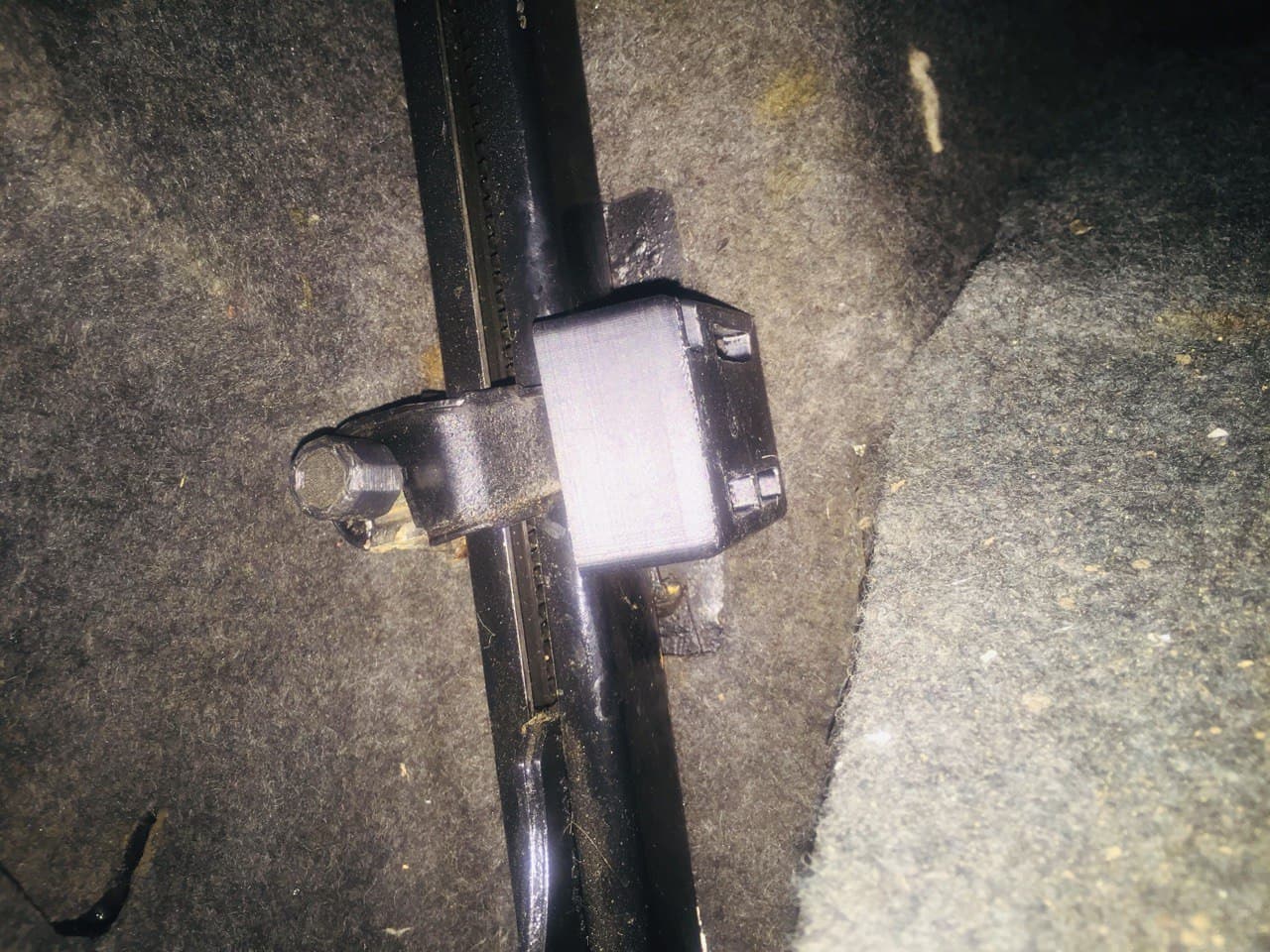

Replacement cap for the E30 luggage-compartment jack mount, copied from the original and physically installed. BMWFans confirms cover 51711916269.
