Late Steering-Column Lower Pad

TPU4 FILESCC-BYDashboard
PART RECORDREF 1451
PART
Late Steering-Column Lower Pad
OEM
FITS
02 Series Type 114 / E10
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1451QTY 4 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES
Plate 1 of 4
PLATE 01 / 04No caption recorded
Build sheet
MAN-1451
  • [01]pad3.3mf.STL
  • [02]pad3.stl.STL
  • [03]steering column pad 3 v4.f3d.STL
  • [04]steering column pad 3 v4.step.STL
  • [05]Bounding box190.710 × 180.556 × 43.574 mm
  • [06]Volume400,108.436 mm³
Field notes
BY GASTEPHENS

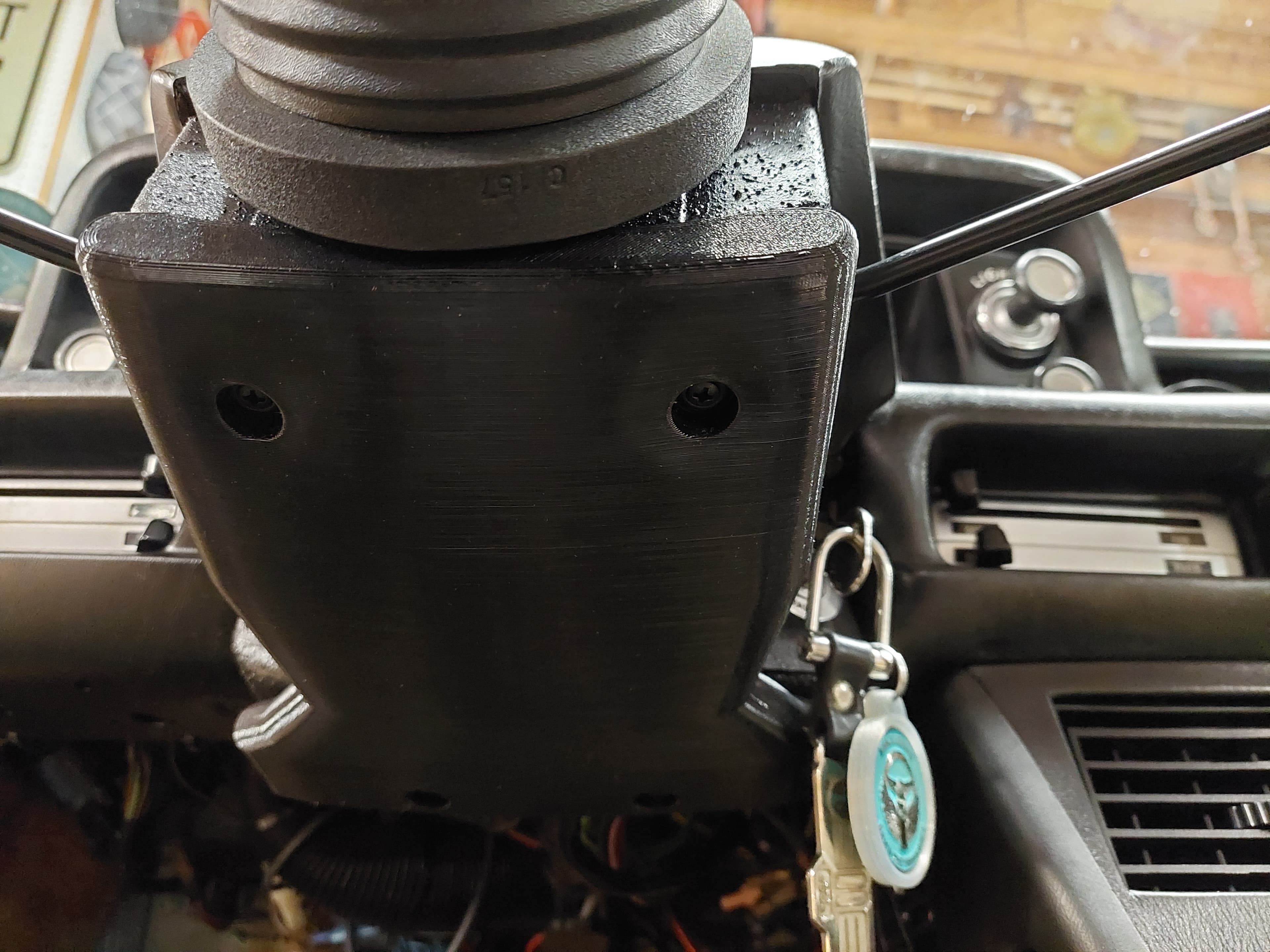

Redesigned flexible lower steering-column pad for later cars, physically shown installed using the original mounting points. The creator states that steering-column design changed during production and does not claim early-car fitment; compare the mounting points and column profile before printing. Print slowly in durable TPU with strong bed adhesion. Because this is deliberately not a duplicate of the original lower trim panel, catalog number 32311110912 is documented only as the corresponding late original panel and is not assigned to this custom part.
