Late-Model Lower Valance Grille

REPLACES OEM51711953609

ABS · Nylon1 FILEPublic DomainBody

PART RECORDREF 1141

PART: Late-Model Lower Valance Grille
OEM: 51711953609
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1141QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

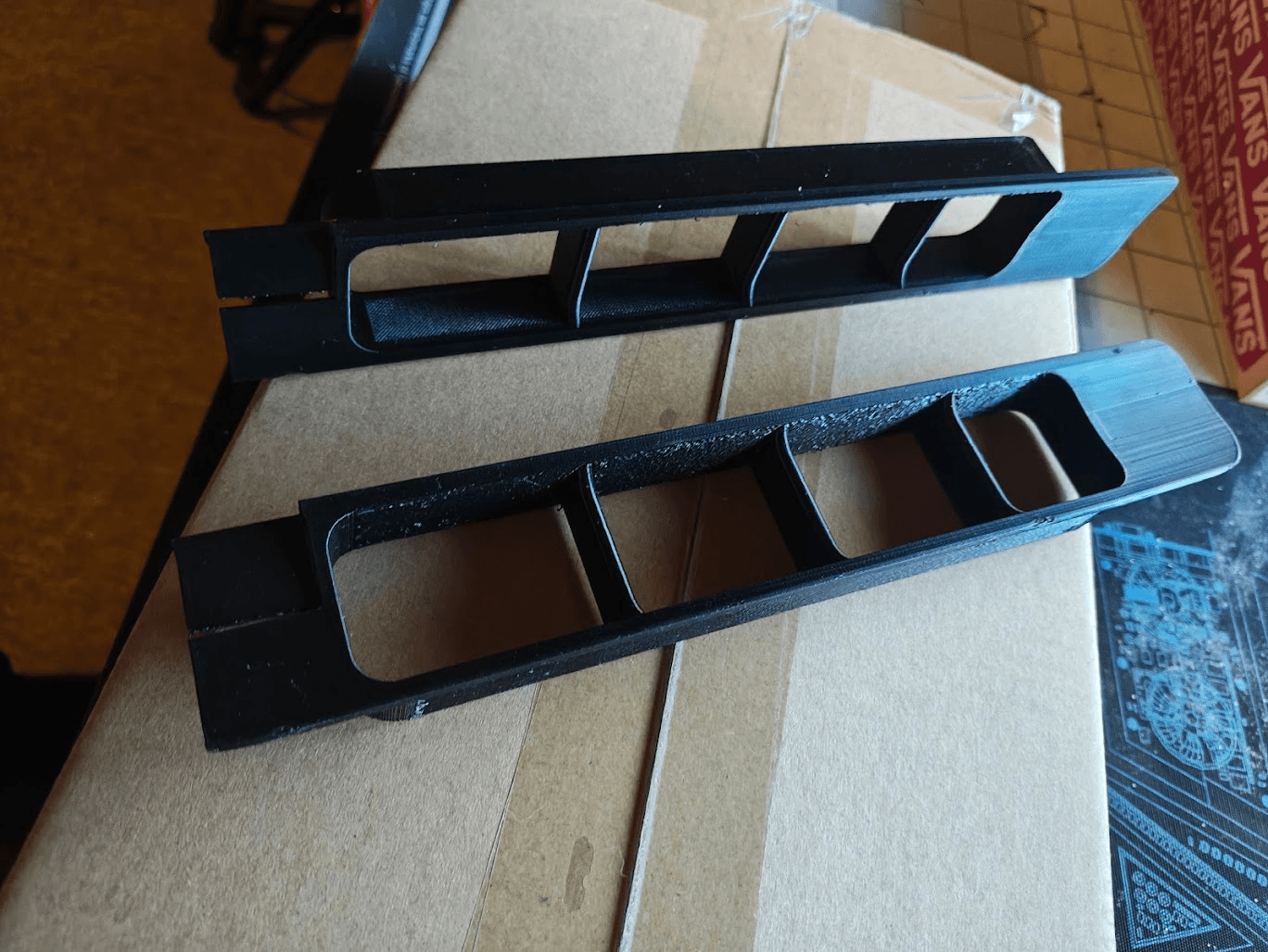

PLATE 01 / 03No caption recorded

Build sheet

MAN-1141

[01]splitter-vent-split-v2.stlsplitter-vent-split-v2.stl.STL
[02]Bounding box271.626 × 44.450 × 20.000 mm
[03]Volume41,004.762 mm³

Field notes

BY USC MTBR

Two-piece replacement lower valance grille for late-model E30, fitted in front of the oil cooler and physically installed. BMWFans confirms cover 51711953609. Bond the halves securely and verify airflow and road retention.

View original source ↗
