Late-Model Headlamp Adjusting-Screw Parts

REPLACES OEM63121385397

ABS · NylonMULTI-PART2 FILESCC-BYLights

PART RECORDREF 1109

PART: Late-Model Headlamp Adjusting-Screw Parts
OEM: 63121385397
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1109QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1109

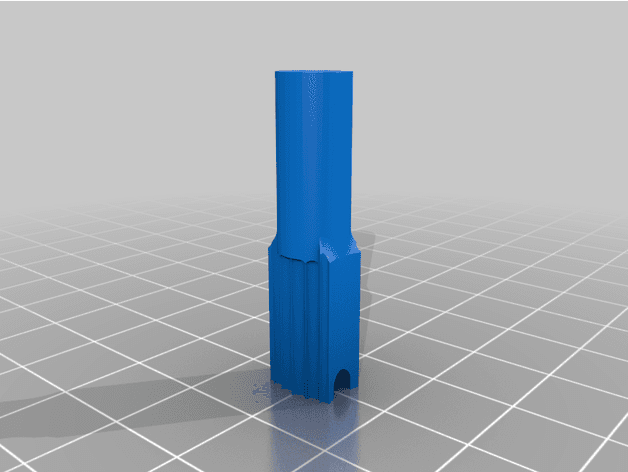

[01]handle_63_12_1_385_397.STLhandle_63_12_1_385_397.STL.STL

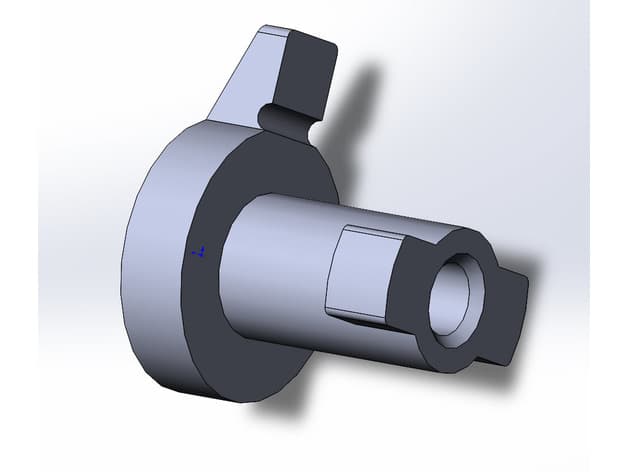

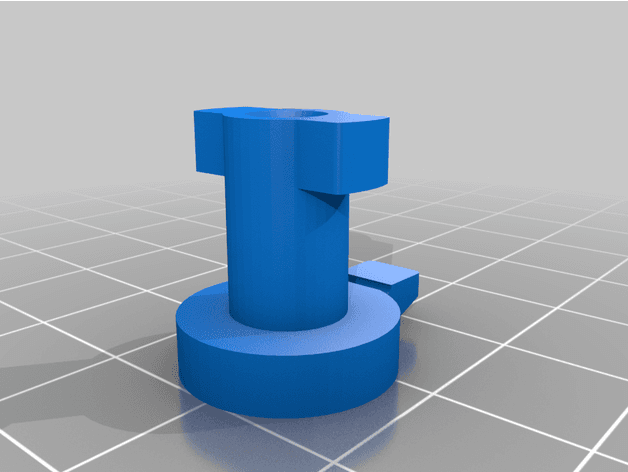

[02]nut_63_12_1_385_397.STLnut_63_12_1_385_397.STL.STL
[03]Bounding box35.000 × 25.834 × 14.998 mm
[04]Volume2,700.7 mm³

Field notes

BY DMITRY WITHOUTLASTNAME (KOTYARKO_O)

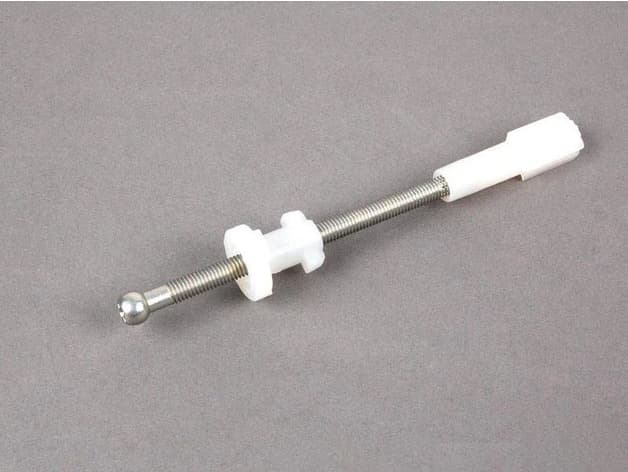

Two replacement plastic pieces for the late-model E30 headlamp adjusting screw, copied from the originals and shown assembled on the screw. BMWFans confirms adjusting screw 63121385397. Form threads carefully and verify beam adjustment and retention.

View original source ↗
