Late Front-Seat Rail Nut Cap

REPLACES OEM52101941999

ABS · PETG1 FILECC-BY-NC-SASeats

PART RECORDREF 1132

PART: Late Front-Seat Rail Nut Cap
OEM: 52101941999
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1132QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

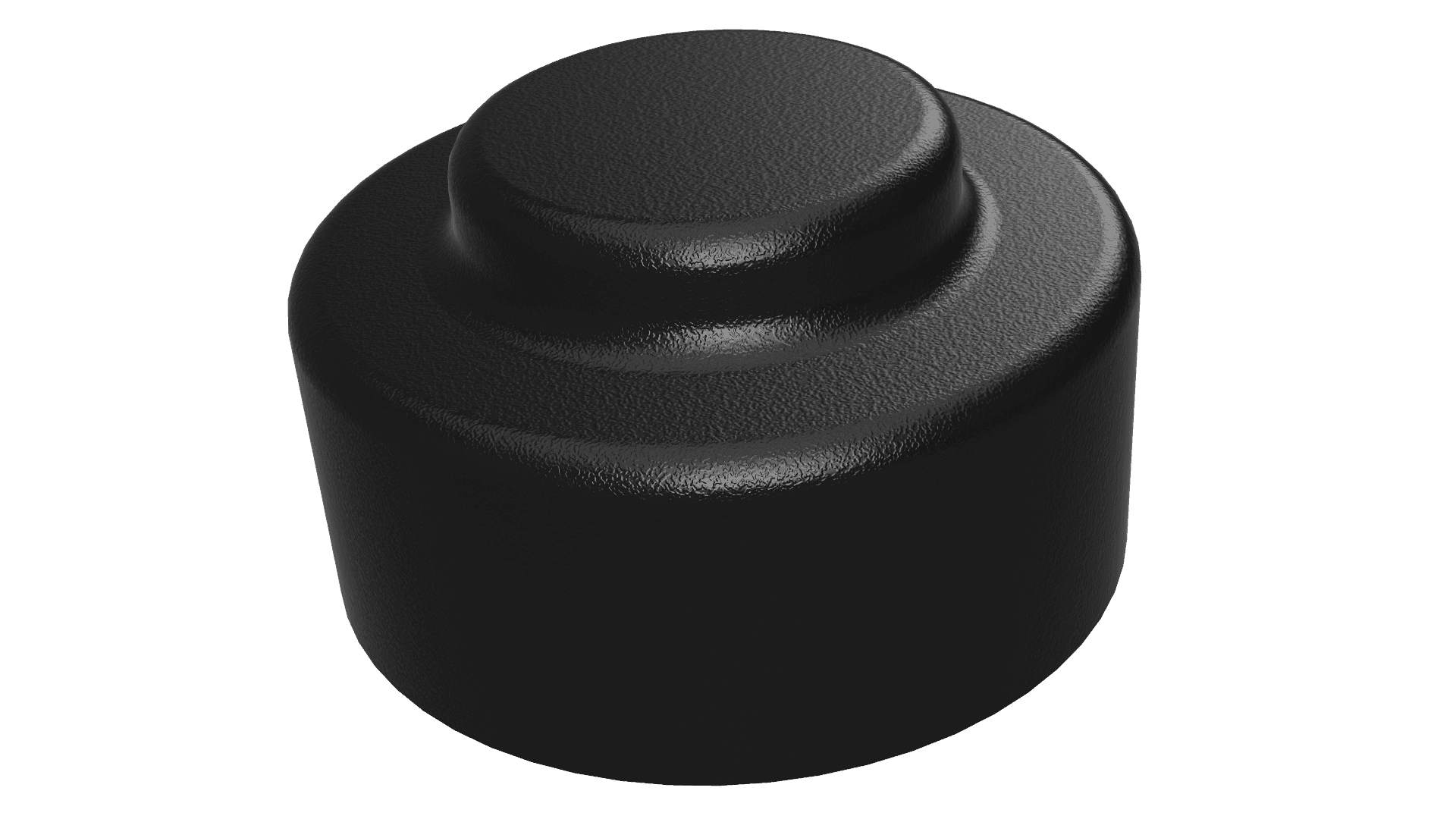

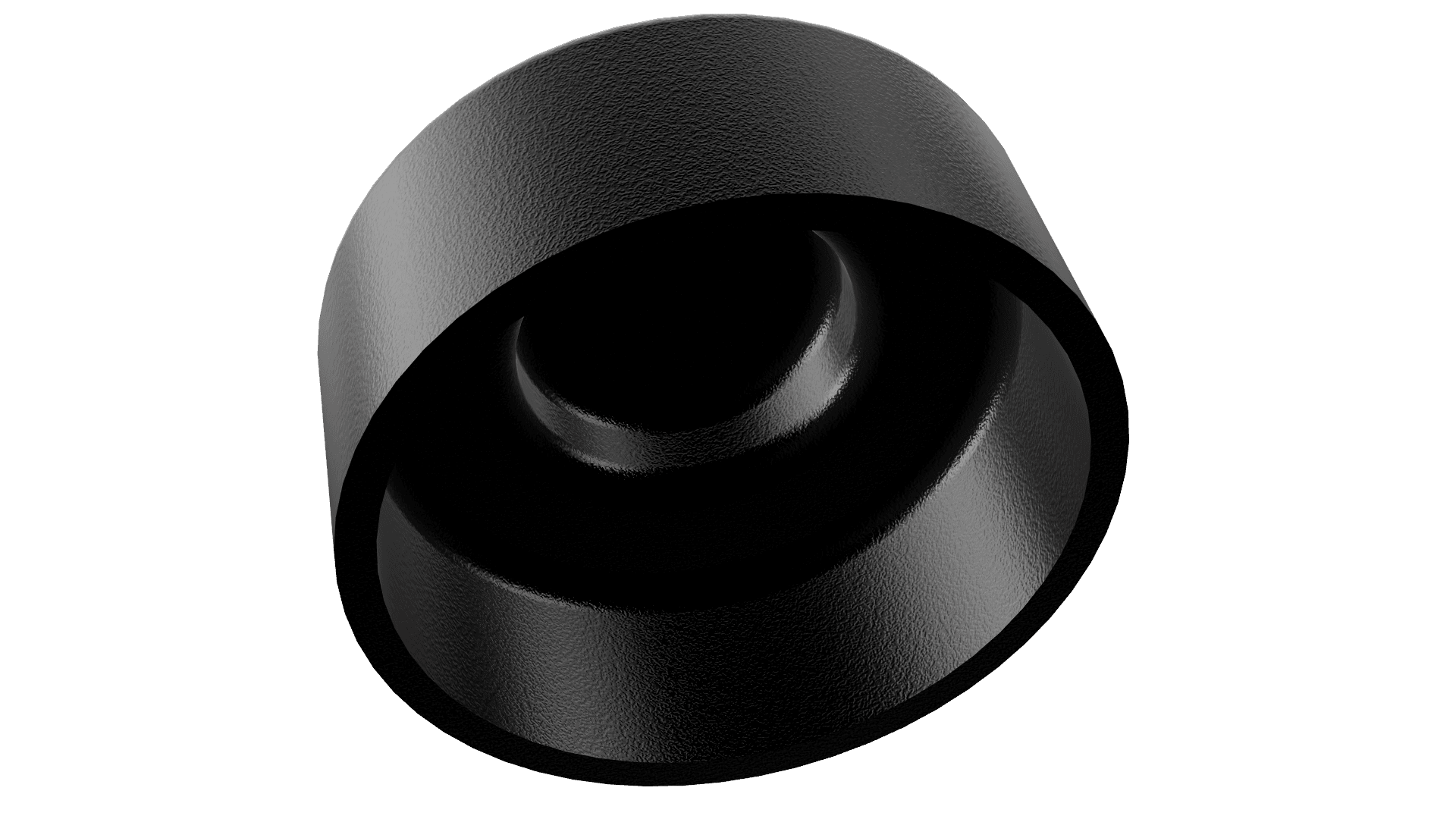

PLATE 01 / 04No caption recorded

Build sheet

MAN-1132

[01]bmwe30_frontseatsledsnutcover_late52-10-1-941-999-v6.stlbmwe30_frontseatsledsnutcover_late52-10-1-941-999-v6.stl.STL
[02]Bounding box21.500 × 21.490 × 12.000 mm
[03]Volume1,300.889 mm³

Field notes

BY KOTYARKO_O

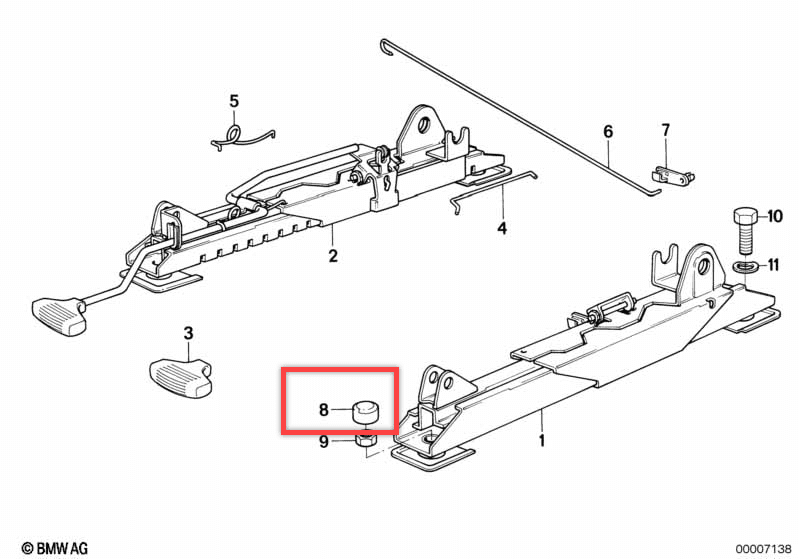

Replacement front-seat rail nut cap for early cars from September 1985 onward and late-model E30, copied from and physically compared with the original. BMWFans confirms covering cap 52101941999.

View original source ↗
