PART №1103
FROMBIMMER-3D-PARTSDESTWORKBENCH31 JUL 2026
High-Beam Headlamp Adjuster Spacer
REPLACES OEM63121362036
ABS · Nylon1 FILECC-BYLights
- PART
- High-Beam Headlamp Adjuster Spacer
- OEM
- 63121362036
- FITS
- 3 Series E30
Loading 3D viewer...
PART ID · BIMMER-3D / 1103QTY 1 · STLHANDLE · NO SUPPORTS
Field photographs
4 PLATES

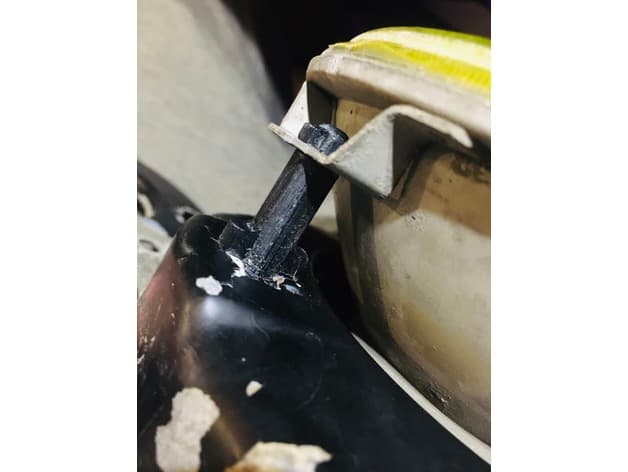

PLATE 01 / 04No caption recorded
Build sheet
MAN-1103- [01]BmwE30_headLampHighBeamSpacer63_12_1_362_036_v5.stlBmwE30_headLampHighBeamSpacer63_12_1_362_036_v5.stl.STL
- [02]Bounding box47.650 × 16.500 × 15.000 mm
- [03]Volume3,583.817 mm³
Field notes

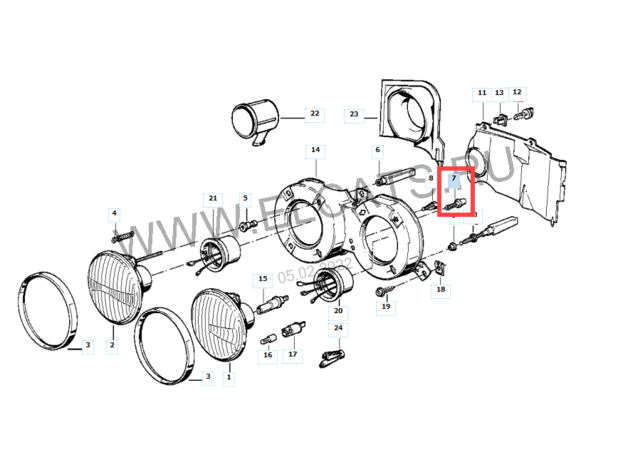

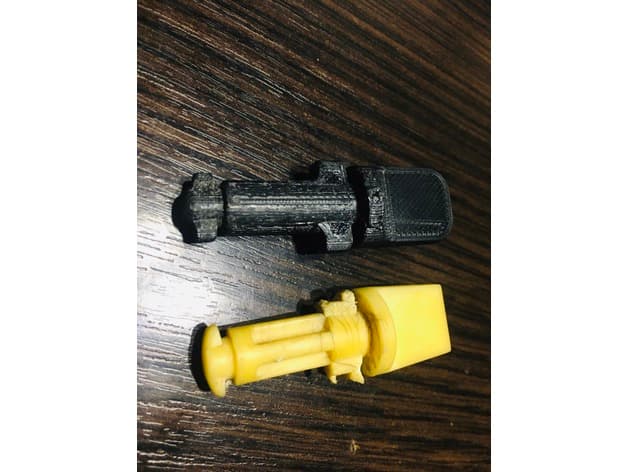

BY DMITRY WITHOUTLASTNAME (KOTYARKO_O)Replacement high-beam headlamp spacer for both Hella and Bosch E30 lamp frames, reproduced from the original and physically fitted. BMWFans confirms intermediate piece 63121362036.
Service log
0 entries · open logIncoming…
