Front-Wheel-Arch Headlight Access Cover

ABS · PETG1 FILECC-BYLights

PART RECORDREF 1253

PART: Front-Wheel-Arch Headlight Access Cover
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1253QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

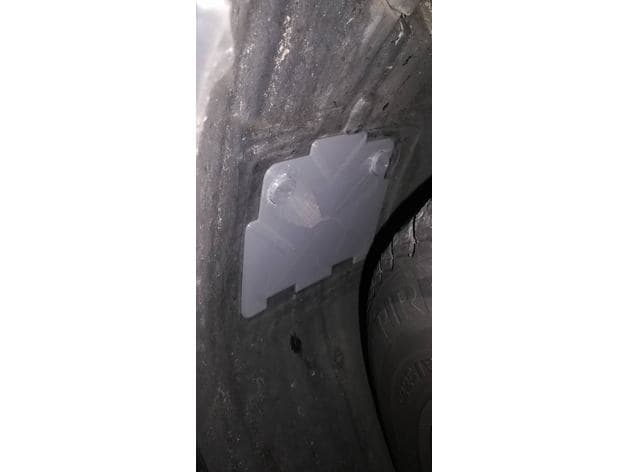

PLATE 01 / 03No caption recorded

Build sheet

MAN-1253

[01]bmw_peca.stlbmw_peca.stl.STL
[02]Bounding box160.000 × 140.000 × 7.700 mm
[03]Volume43,946.689 mm³

Field notes

BY FÁBIO JOSÉ TEIXEIRA (FJBT)

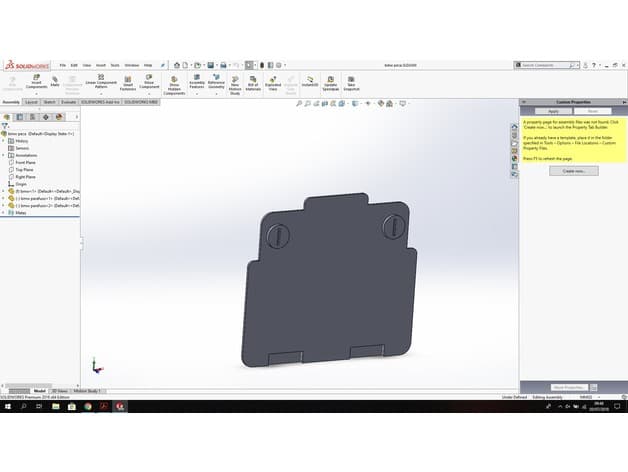

Here I leave the headlight cover, located on the mudguard of the front wheel, is a piece very easy to lose and so I leave here the model to be able to print the fleeces own covers. Mine is already 1 month and I have not lost it or left, my BMW is an E91, but I think it serves in all E90 series. I leave the files in solidworks if they want to improve. Good impressions !! Greetings BMW Confirm body and lamp variant, secure retention, weather sealing and legal lamp operation before driving.
