Front Strut-Tower Spacing Gauge

ABS · PETG1 FILECC-BYMechanical

PART RECORDREF 1448

PART: Front Strut-Tower Spacing Gauge
OEM: —
FITS: 02 Series Type 114 / E10

Loading 3D viewer...

PART ID · BIMMER-3D / 1448QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1448

[01]STRUT_TOWER_MEASUREMENT_TOOL.STLSTRUT_TOWER_MEASUREMENT_TOOL.STL.STL
[02]Bounding box136.196 × 136.196 × 10.000 mm
[03]Volume33,878.624 mm³

Field notes

BY 2002 UNDERGROUND (2002UNDERGROUND)

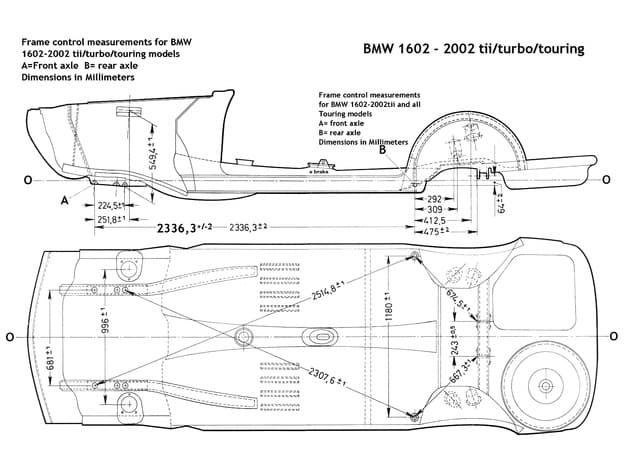

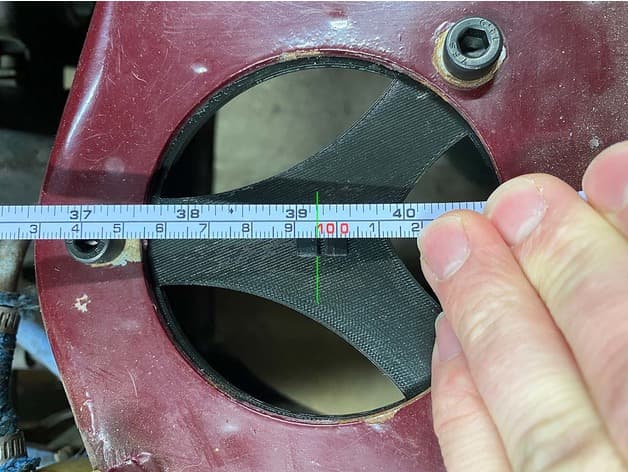

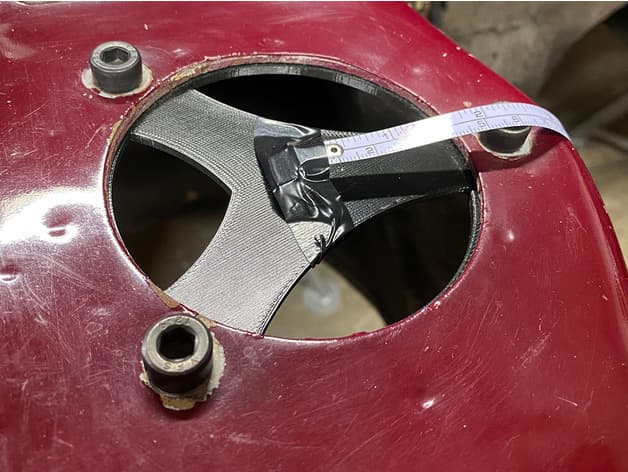

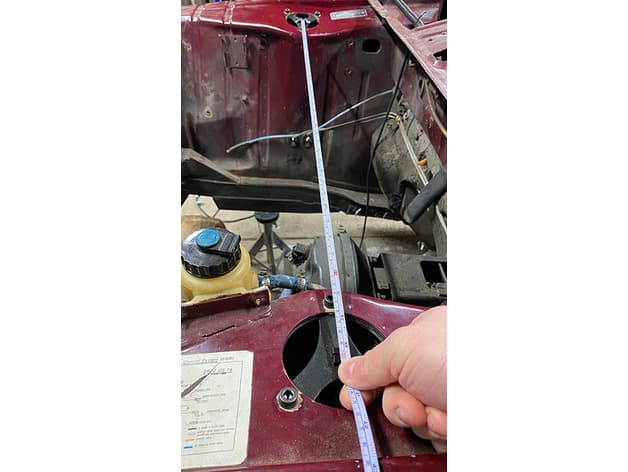

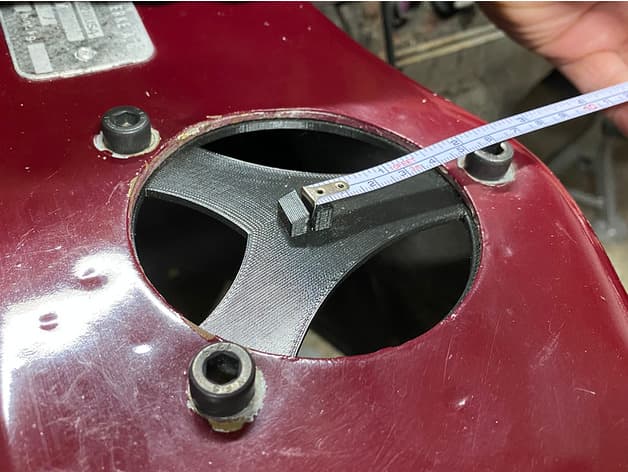

Workshop gauge for checking the center-to-center distance between the front strut towers on early 1966-1967 02-series bodies. The creator physically demonstrates the tool and cites a target of 996 ± 1 mm, measured from the indicated prism edge. This is a diagnostic aid, not a structural repair fixture or substitute for the BMW body-repair manual. Verify the specification against documentation for the exact body before acting on a reading; no vehicle component OEM number is applicable.
