Front Seat-Belt Bolt Cap

REPLACES OEM72111808464

ABS · PETG1 FILECC-BYSeats

PART RECORDREF 1116

PART: Front Seat-Belt Bolt Cap
OEM: 72111808464
FITS: 3 Series E30

Loading 3D viewer...

PART ID · BIMMER-3D / 1116QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-1116

[01]BmwE30_seatsSafetyBeltBoltCap_72_11_1_808_464_v13.stlBmwE30_seatsSafetyBeltBoltCap_72_11_1_808_464_v13.stl.STL
[02]Bounding box26.500 × 26.500 × 9.100 mm
[03]Volume1,724.901 mm³

Field notes

BY DMITRY BALAGANSKY (KOTYARKO_O)

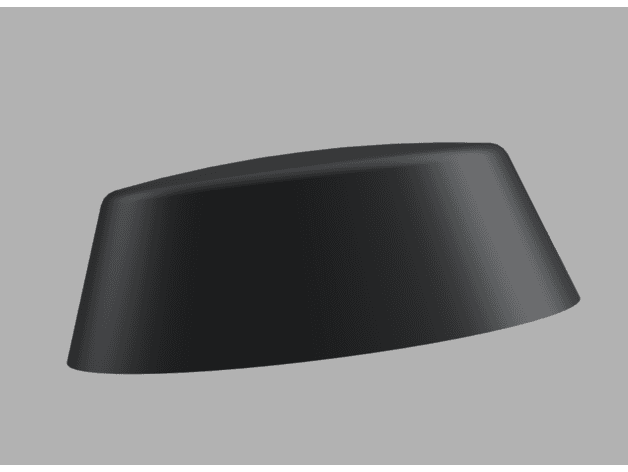

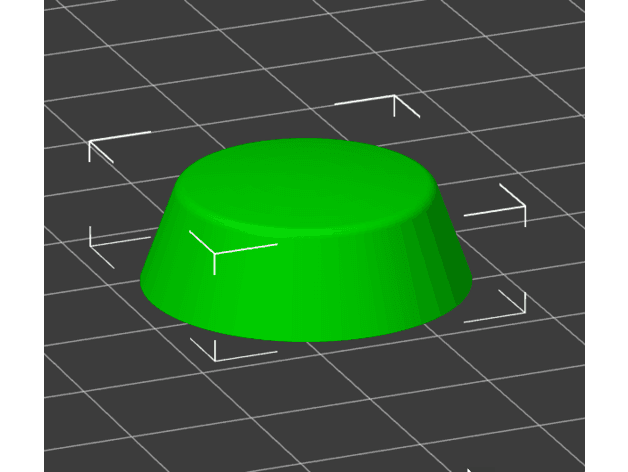

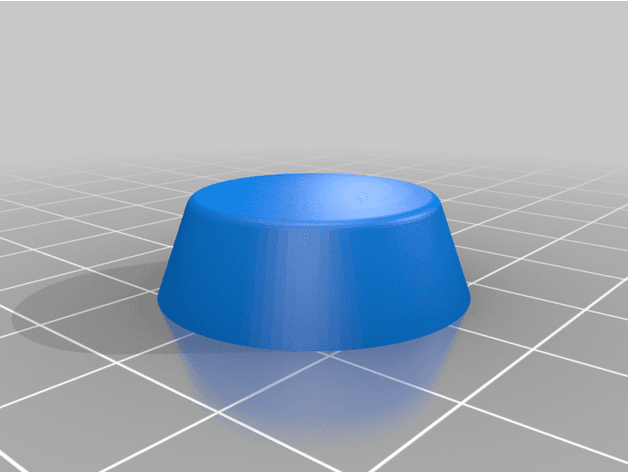

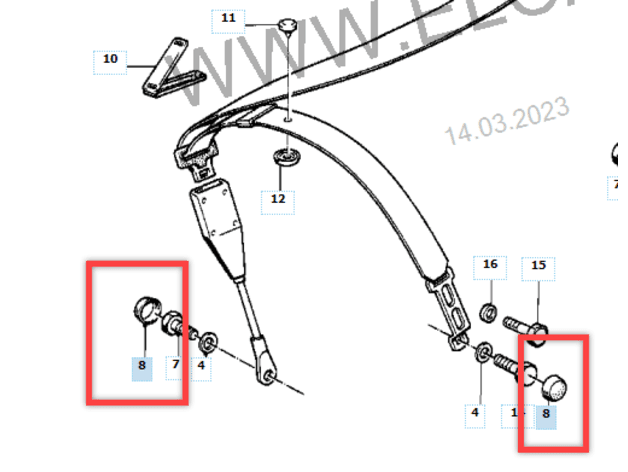

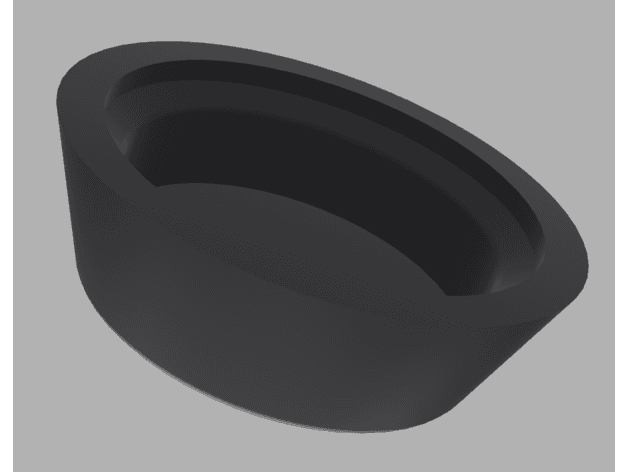

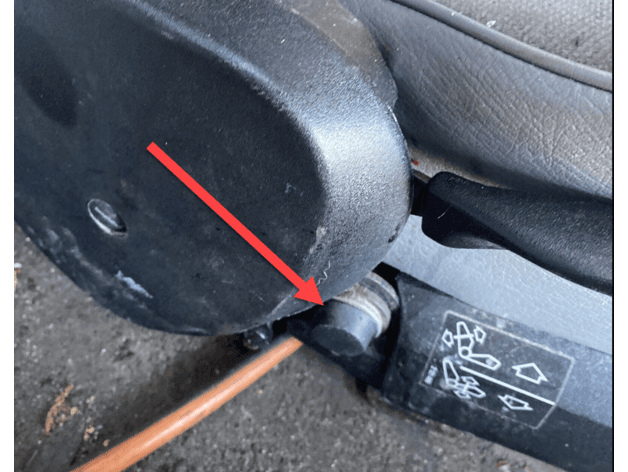

Replacement cap for E30 front seat-belt anchorage bolts, copied from the original and physically fitted on stock, sport and Recaro seats. BMWFans confirms covering cap 72111808464. Do not disturb or conceal a loose anchorage bolt.

View original source ↗
