Front Parking-Sensor Aperture Plug

ABS · PETG1 FILECC-BY-NCBody

PART RECORDREF 1258

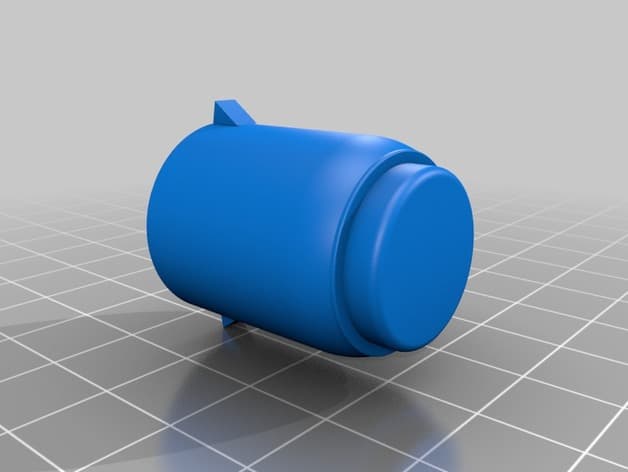

PART: Front Parking-Sensor Aperture Plug
OEM: —
FITS: 3 Series E90 / E91 / E92 / E93

Loading 3D viewer...

PART ID · BIMMER-3D / 1258QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1258

[01]pdc_v3.stlpdc_v3.stl.STL
[02]Bounding box28.500 × 26.949 × 22.000 mm
[03]Volume10,229.872 mm³

Field notes

BY KAROLIS JU (LM3915)

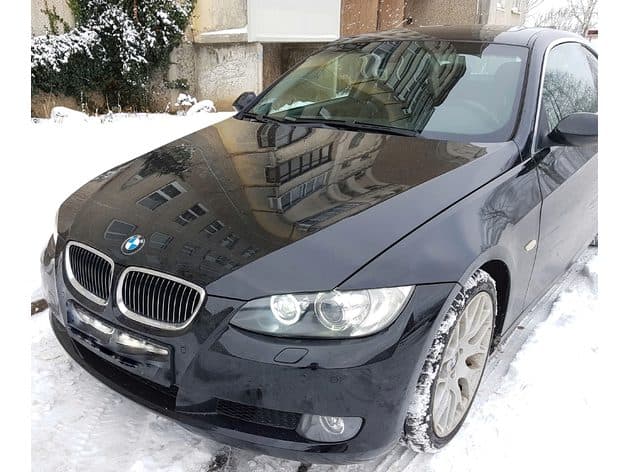

This is my first 3D design. I needed this to plug holes in my bumper without buying parking sensors. It fits nicely, although I used some epoxy glue to be sure it stays in. Use exterior-rated material and verify secure retention and adjacent-panel clearance.
