Gran Turismo Under-Seat Subwoofer Depth Adapter

ABS · PETGMULTI-PART2 FILESCC-BY-NC-SAElectrical

PART RECORDREF 1305

PART: Gran Turismo Under-Seat Subwoofer Depth Adapter
OEM: —
FITS: 3 Series F30 / F31 / F34 / F80

Loading 3D viewer...

PART ID · BIMMER-3D / 1305QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1305

[01]subwoofer-bmw-v9_45mm_prusa_i3mk.3mfsubwoofer-bmw-v9_45mm_prusa_i3mk.3mf.STL
[02]subwoofer-bmw-v13_f34-hifi.stepsubwoofer-bmw-v13_f34-hifi.step.STL

Field notes

BY MARTIN

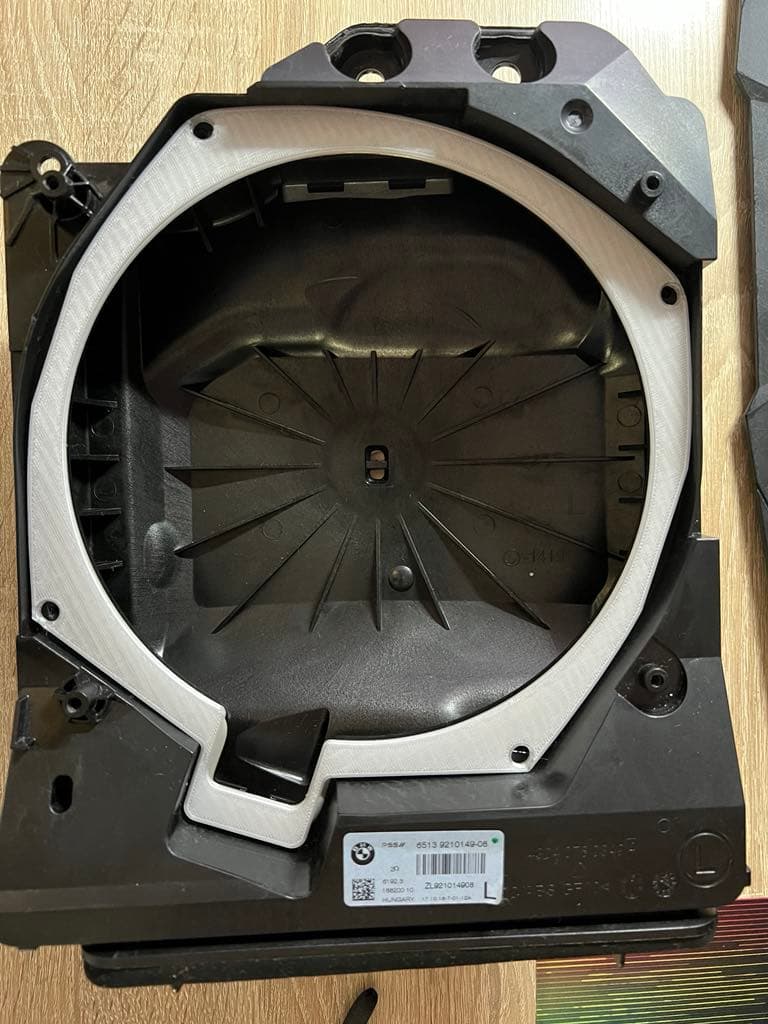

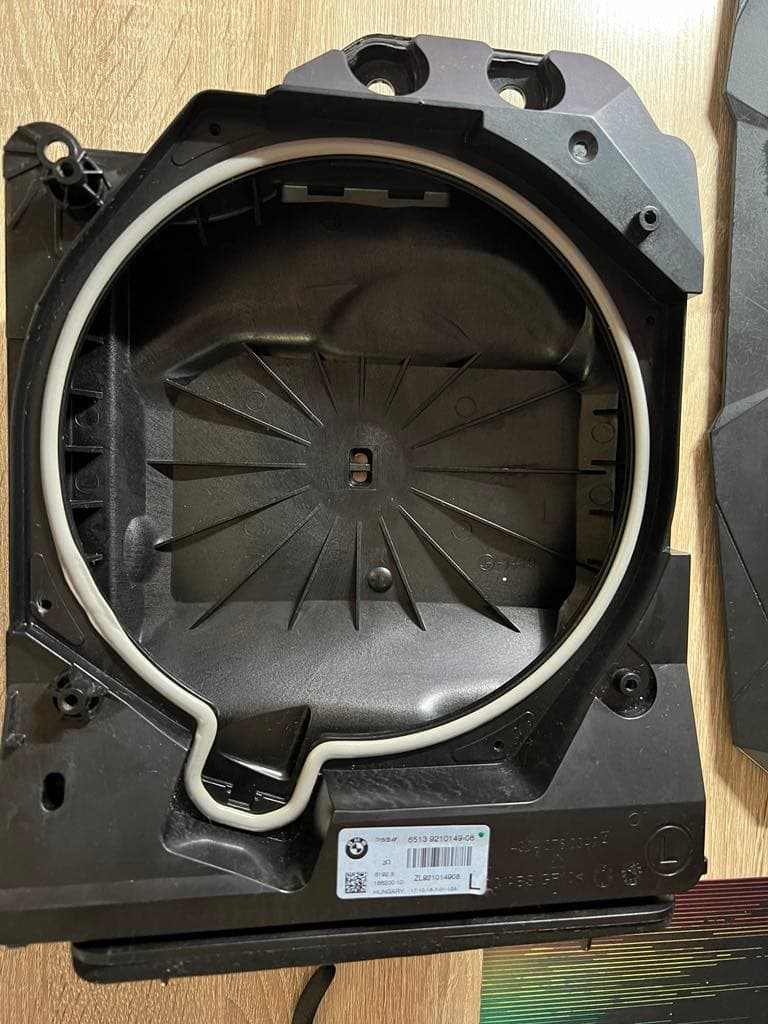

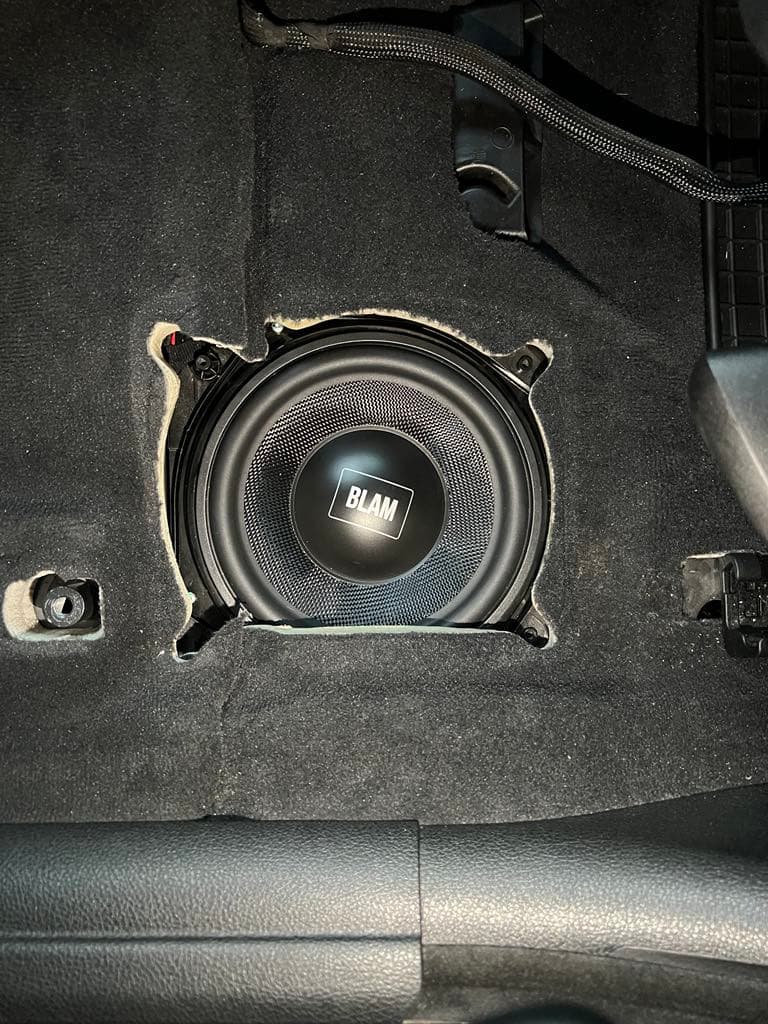

4.5 mm depth adapter for installing a BLAM BM200W 200 mm subwoofer in the original HiFi enclosure of a BMW F34 3 Series Gran Turismo. Use cabin-rated material, isolate wiring and connectors, and verify secure fit and unobstructed speaker operation.

View original source ↗
