Touring Boot-Lid Umbrella Mount

ABS · PETGMULTI-PART2 FILESPublic DomainInterior

PART RECORDREF 1304

PART: Touring Boot-Lid Umbrella Mount
OEM: —
FITS: 3 Series F30 / F31 / F34 / F80

Loading 3D viewer...

PART ID · BIMMER-3D / 1304QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1304

[01]bmw-trunk-umbrella-closed-loop.stlbmw-trunk-umbrella-closed-loop.stl.STL
[02]bmw-trunk-umbrella-open-loop.stlbmw-trunk-umbrella-open-loop.stl.STL
[03]Bounding box90.164 × 54.012 × 30.000 mm
[04]Volume42,985.325 mm³

Field notes

BY HELDER BARREIROS

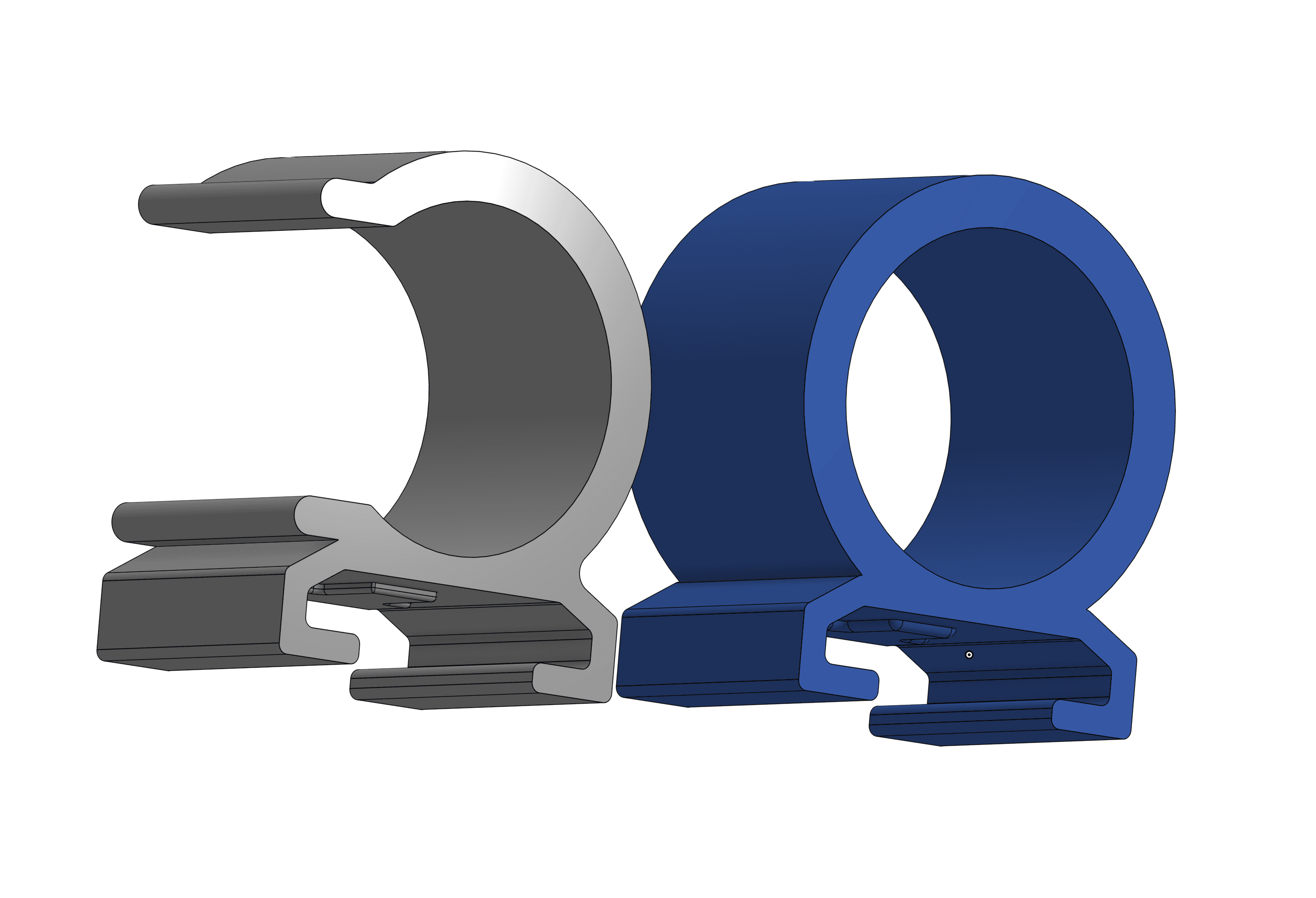

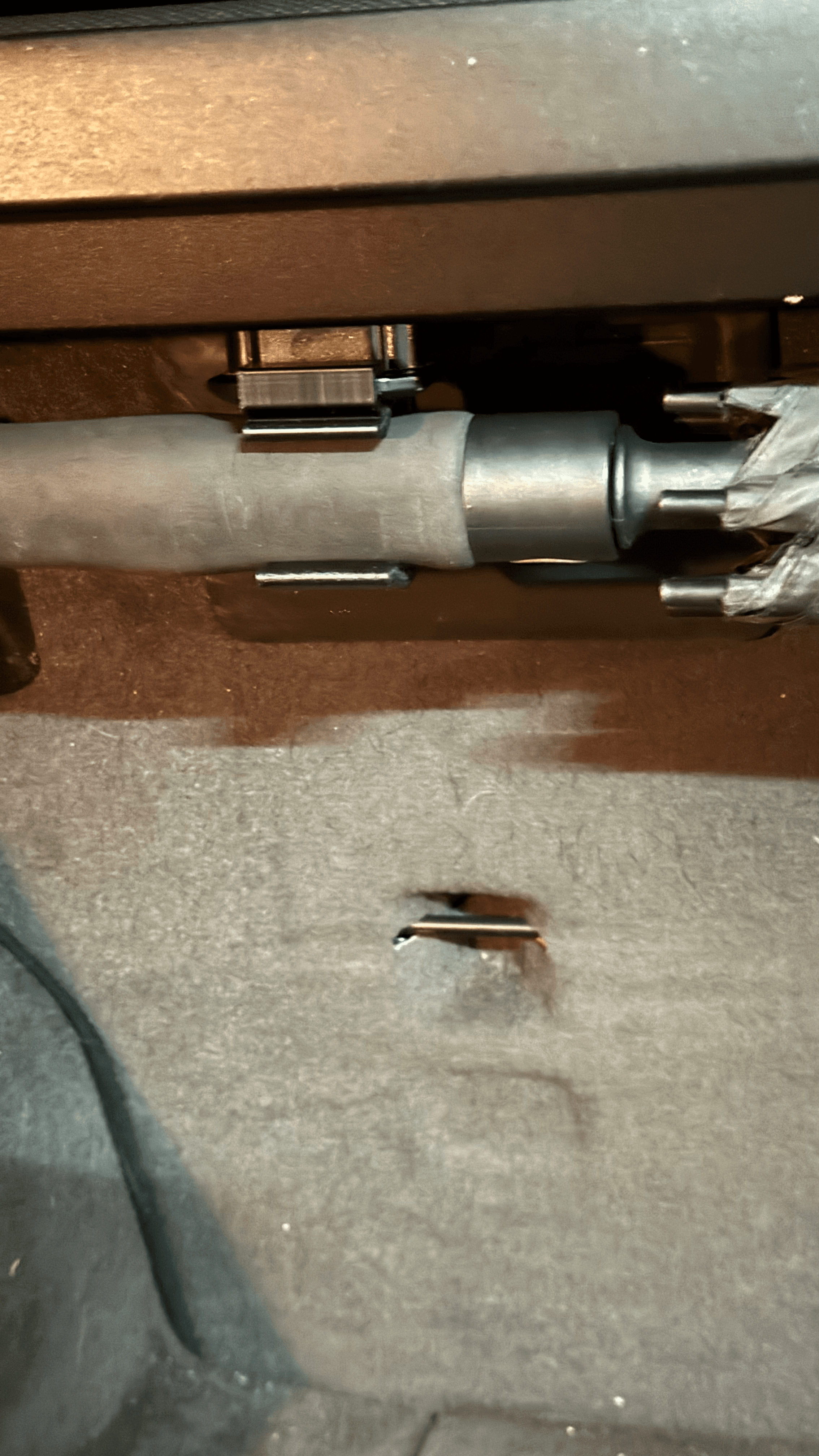

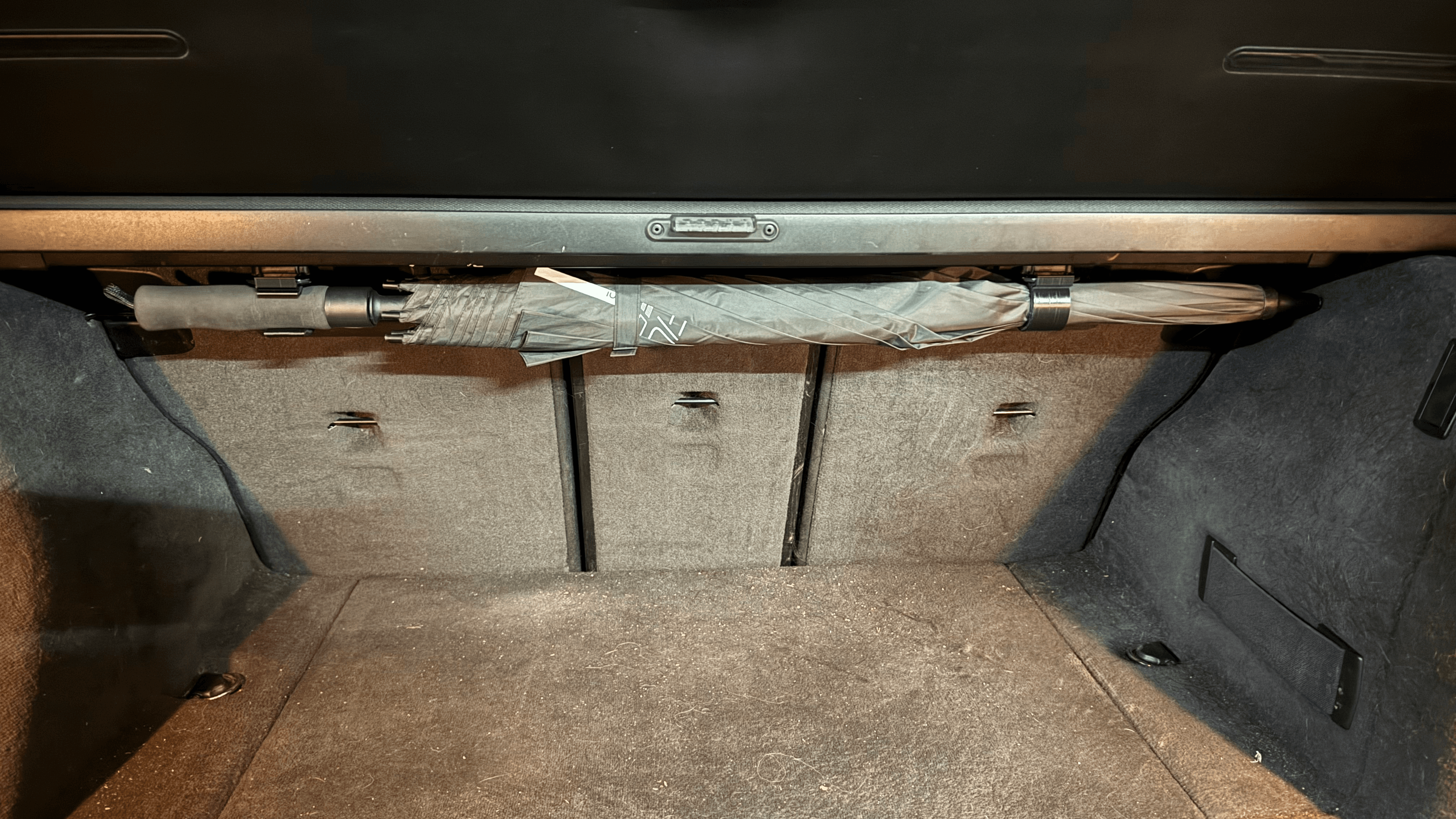

Two-piece open- or closed-loop umbrella mount demonstrated on the inside of an F31 Touring boot lid. Use cabin-heat-resistant material, dry-fit the part and verify secure retention and unobstructed vehicle operation.

View original source ↗
