Sedan/Touring Rear-Seat ISOFIX Cover

ABS · PETG2 FILESCC-BY-NC-SASeats
PART RECORDREF 1414
PART
Sedan/Touring Rear-Seat ISOFIX Cover
OEM
FITS
5 Series F07 / F10 / F11 / F18
BIMMER-3D · PART RECORDREV 2026

Loading 3D viewer...

PART ID · BIMMER-3D / 1414QTY 2 · STLHANDLE · NO SUPPORTS
Field photographs
9 PLATES
Plate 1 of 9
PLATE 01 / 09No caption recorded
Build sheet
MAN-1414
  • [01]isofix_231125.stl.STL
  • [02]isofix231125.3mf.STL
  • [03]Bounding box57.010 × 42.072 × 14.019 mm
  • [04]Volume7,239.321 mm³
Field notes
BY DANI10015

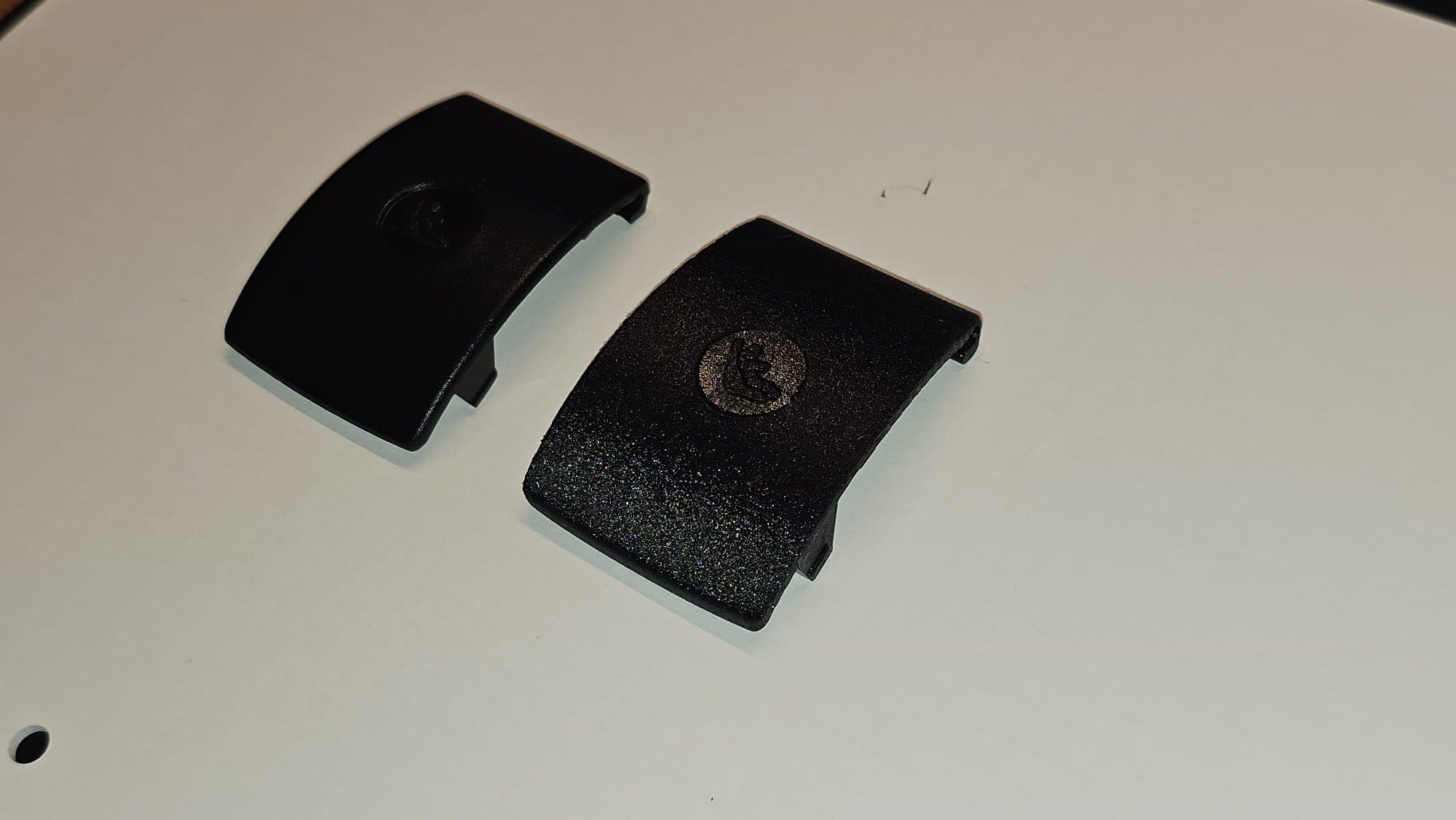

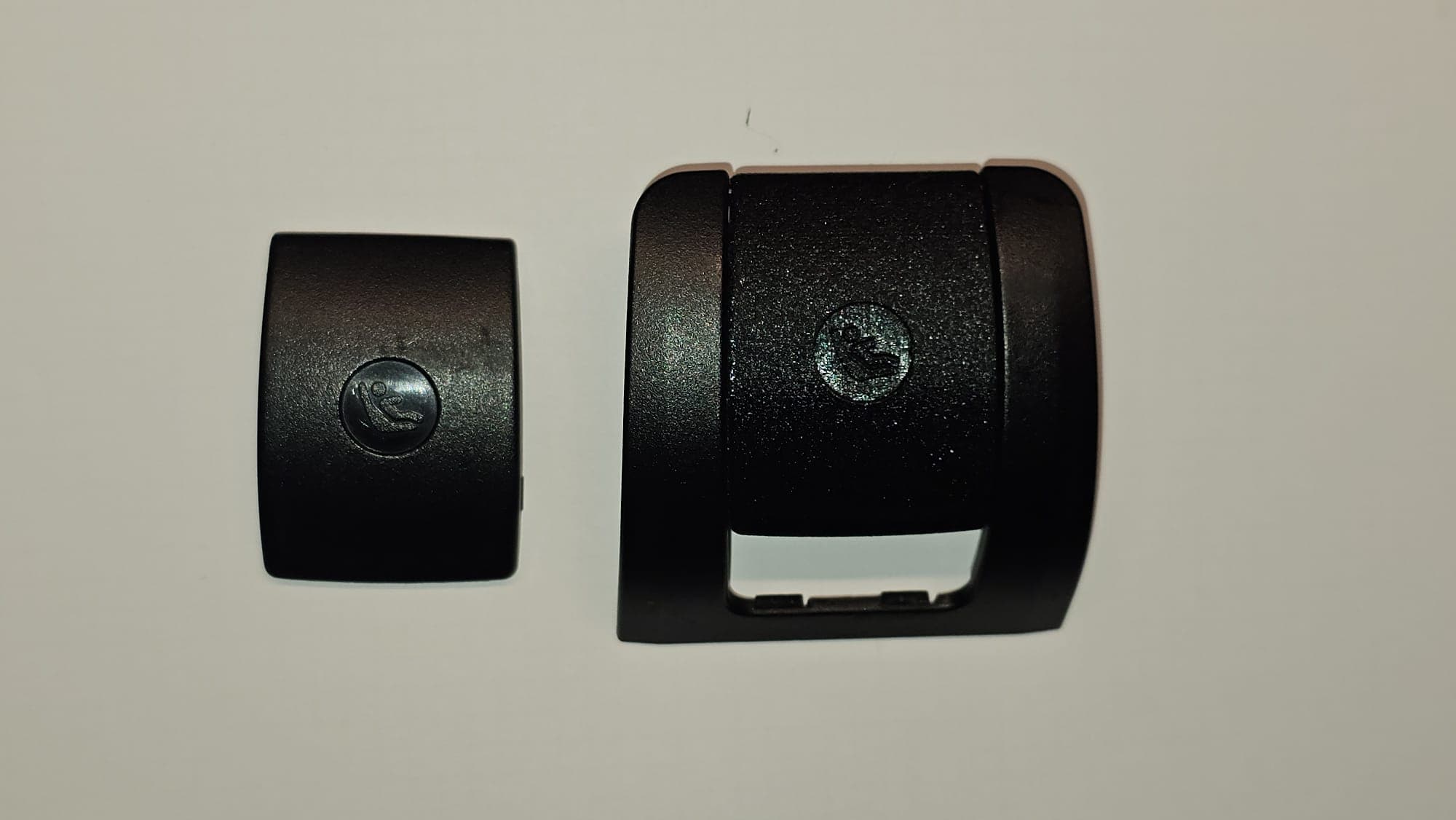

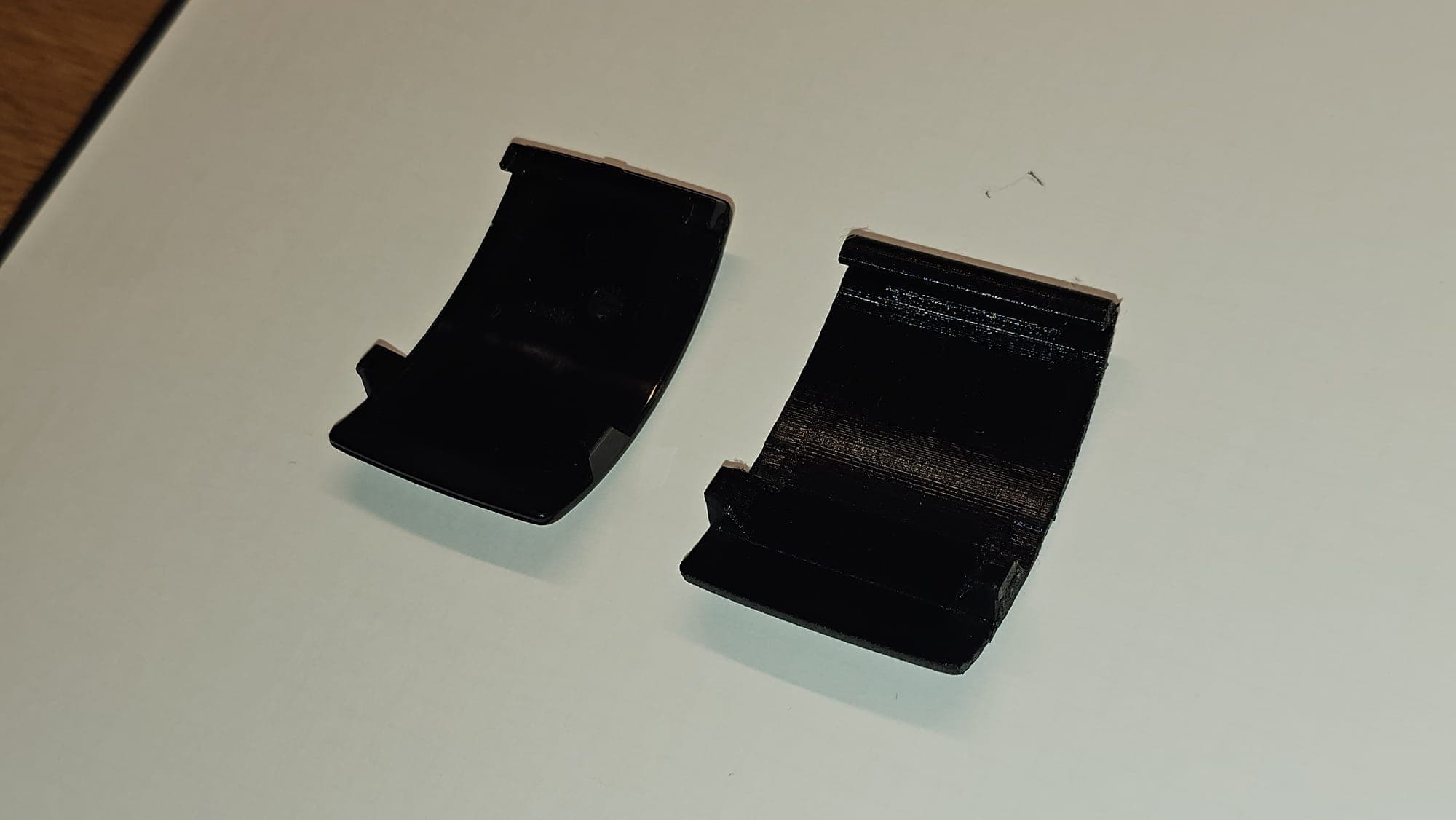

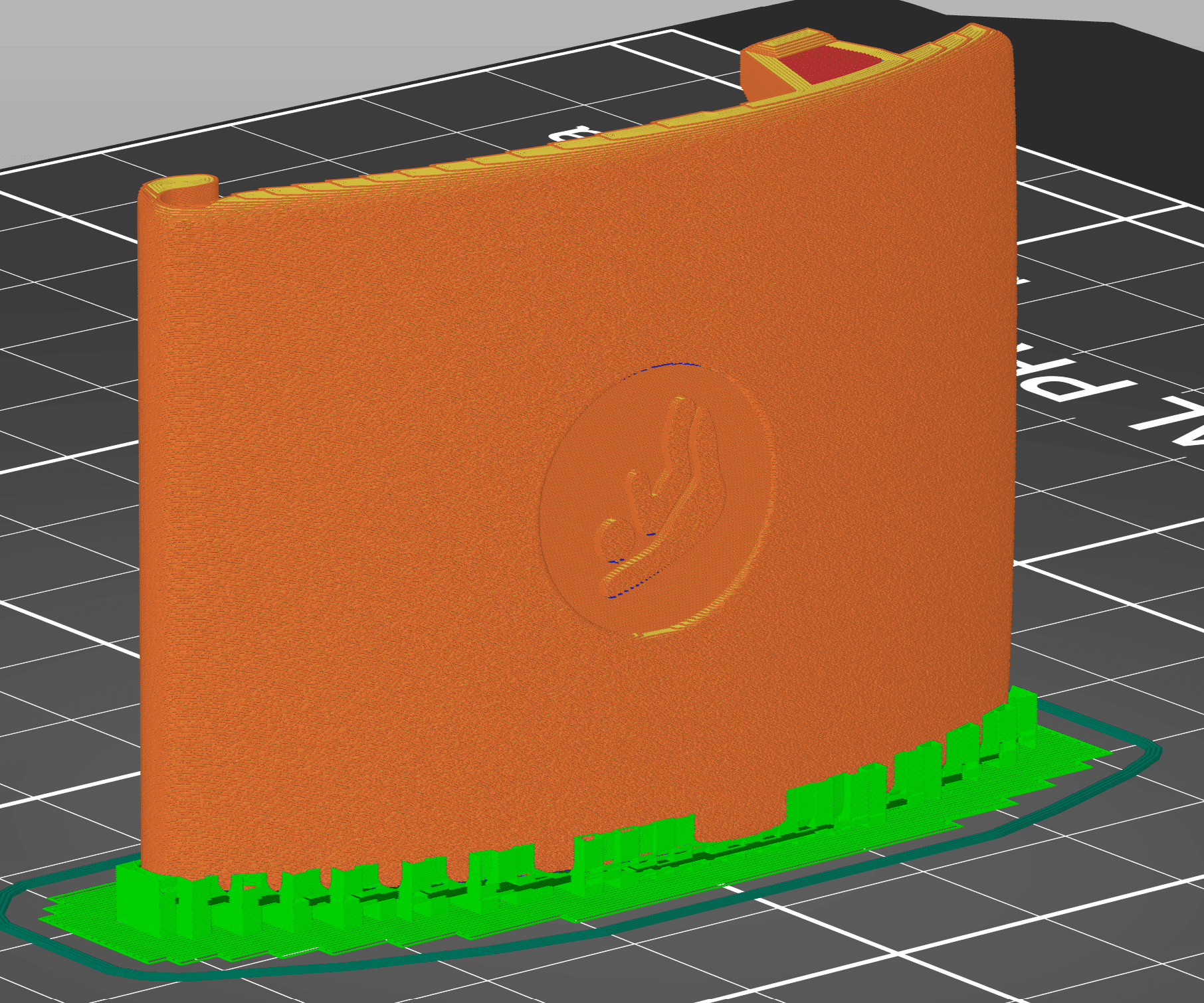

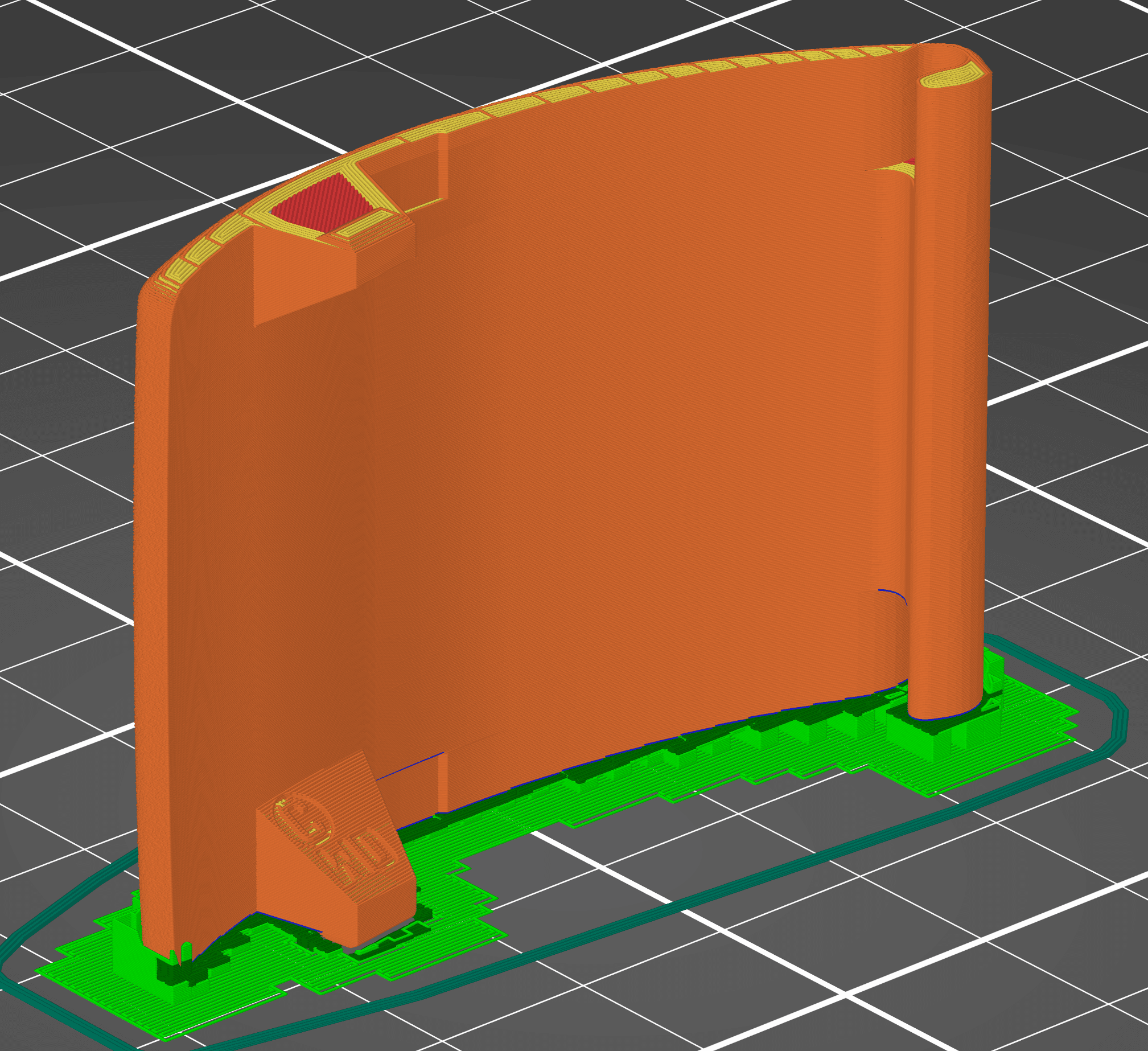

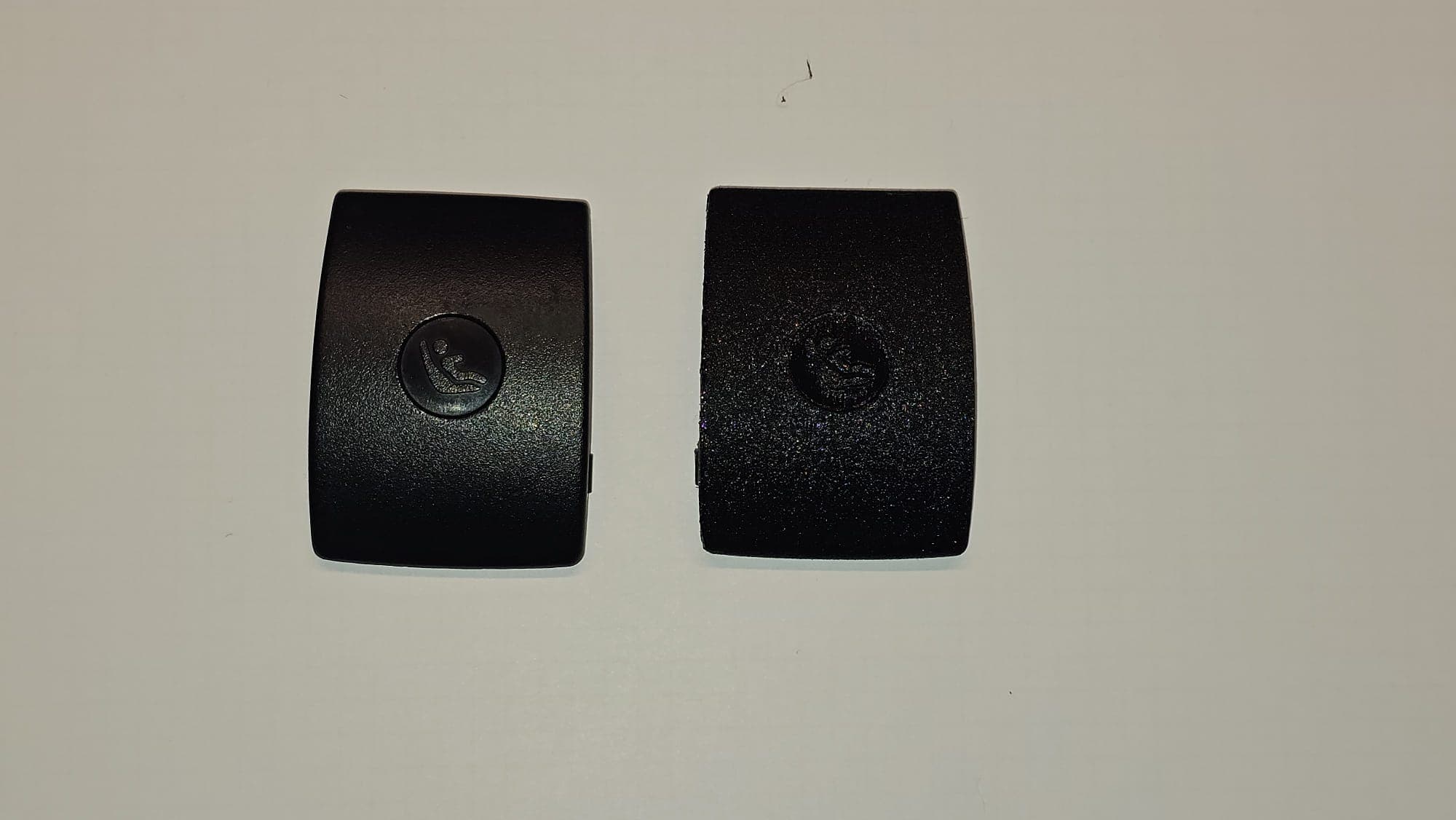

Since I lost two of my backseats isofix covers, I redraw them. Maybe someone else need them as well. I printed them with a 0,2mm nozzle, fuzzy skin at the frontside (strenght 0,04mm / distance 0,1mm), and forced support for the first layers…. The creator measured lost F10/F11 rear-seat covers and provides physical comparisons with the original. This is a cosmetic access cover only; confirm the ISOFIX anchorage remains fully accessible and unmodified. Verify dimensions against the original component and confirm full operation before regular use.
