Ashtray Storage Bin

ABS · PETG2 FILESCC-BY-SAInterior

PART RECORDREF 1412

PART: Ashtray Storage Bin
OEM: —
FITS: 5 Series F07 / F10 / F11 / F18

Loading 3D viewer...

PART ID · BIMMER-3D / 1412QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

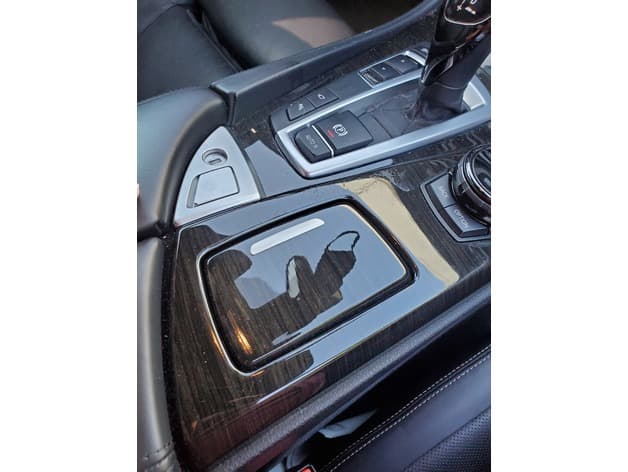

PLATE 01 / 03No caption recorded

Build sheet

MAN-1412

[01]f10_Ashtray_Final.stlf10_Ashtray_Final.stl.STL
[02]5.7Edge_deeper.stl5.7Edge_deeper.stl.STL
[03]Bounding box92.000 × 48.300 × 31.000 mm
[04]Volume32,532.663 mm³

Field notes

BY JOSH COHEN (JCTREE25)

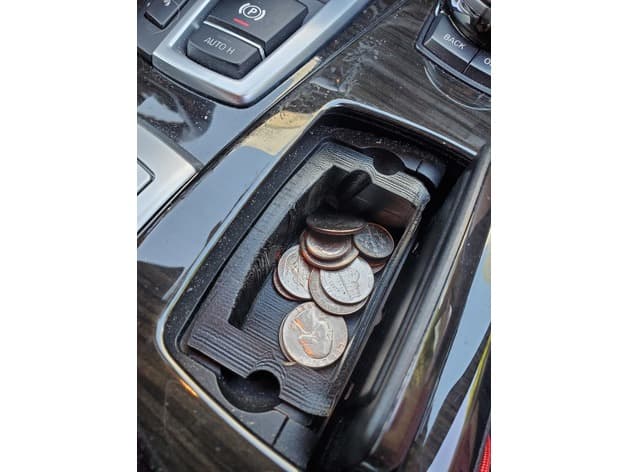

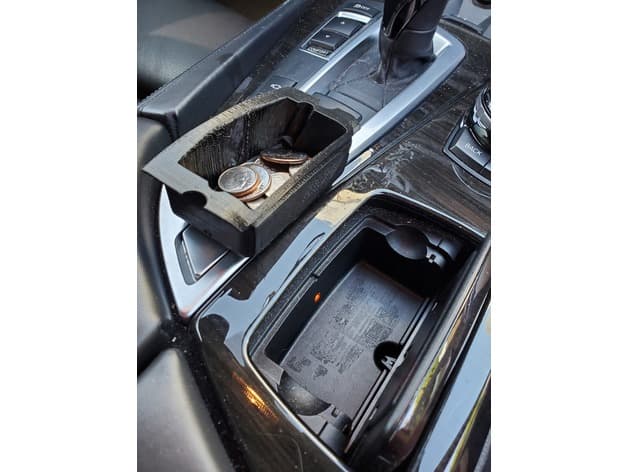

Replaces metal ashtray in 5 series BMW with a more useful box. Both creator-supplied depth variants are retained. Physical photographs show the insert installed in the F10 console; keep the sliding lid and nearby controls unobstructed. Verify dimensions against the original component and confirm full operation before regular use.

View original source ↗
