Trunk Toolbox Retaining Strap

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYBody

PART RECORDREF 1357

PART: Trunk Toolbox Retaining Strap
OEM: —
FITS: 5 Series E39

Loading 3D viewer...

PART ID · BIMMER-3D / 1357QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-1357

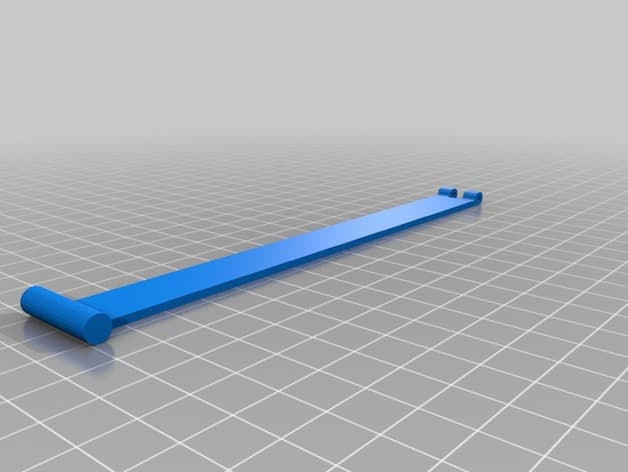

[01]BMW_Toolbox_strap_-_bottom.stlBMW_Toolbox_strap_-_bottom.stl.STL
[02]BMW_Toolbox_strap_-_top.stlBMW_Toolbox_strap_-_top.stl.STL
[03]Bounding box307.172 × 25.000 × 5.988 mm
[04]Volume10,286.279 mm³

Field notes

BY FEDERICO ESQUIVEL (ESQUIVEL)

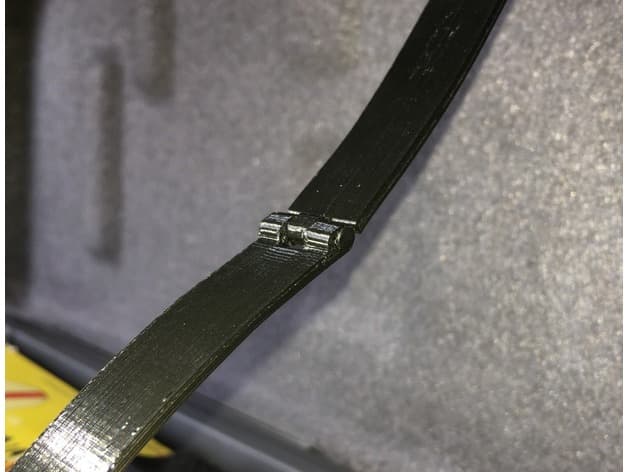

The toolbox holding strap on my car broke in the middle due to material stress over the years. Designed a new strap with with a hinge, to prevent this from happening in the future. Verify dimensions against the original part and confirm full operation before regular use.
