Trunk-Lid Travel Buffer

ABS · Nylon · PETG1 FILECC-BYBody

PART RECORDREF 1375

PART: Trunk-Lid Travel Buffer
OEM: —
FITS: 5 Series E39

Loading 3D viewer...

PART ID · BIMMER-3D / 1375QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-1375

[01]trunk_boot_buffer_rhs.stltrunk_boot_buffer_rhs.stl.STL
[02]Bounding box32.346 × 16.500 × 10.000 mm
[03]Volume2,751.947 mm³

Field notes

BY (STONEY)

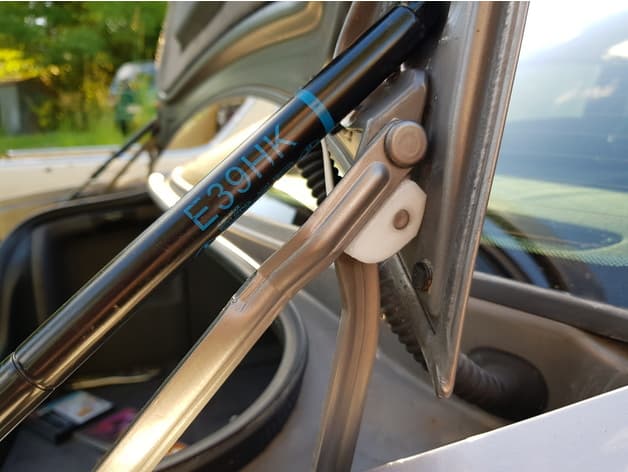

This is the buffer that the arm on the boot/trunk hits to stop it opening too far, if it cracks (which it will) then ultimately it tries to bend the gas struts. Photo shows a broken one and the print. This is for the RHS looking at the rear of the vehicle. The LHS is identical but mirror image. Print this so it stands on the long edge (hole and pin are horizontal) or the the arm will seperate the layers, there is a lot of force there. I used PETG at 100% infill. Verify dimensions against the original part and confirm full operation before regular use.
