Touring 165 mm Roof-Speaker Adapter

ABS · PETG1 FILECC-BYElectrical

PART RECORDREF 1373

PART: Touring 165 mm Roof-Speaker Adapter
OEM: —
FITS: 5 Series E39

Loading 3D viewer...

PART ID · BIMMER-3D / 1373QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

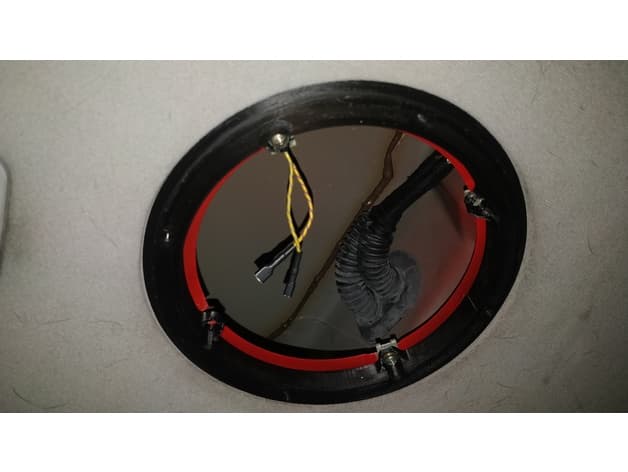

PLATE 01 / 03No caption recorded

Build sheet

MAN-1373

[01]E39_Touring_165cm_Roofadapter.STLE39_Touring_165cm_Roofadapter.STL.STL
[02]Bounding box175.000 × 175.000 × 13.000 mm
[03]Volume22,526.055 mm³

Field notes

BY BART VENNER (BART_VENNER)

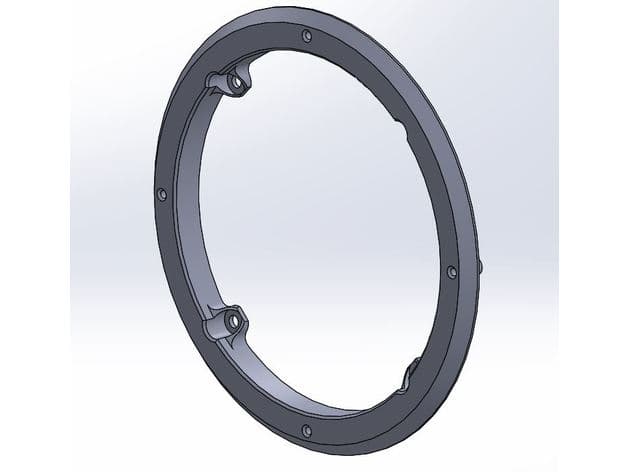

I wanted 16,5cm speakers in the roof of my e39 touring. So I designed an adapter, thought other would want to do the same The hole pattern in the roof is slightly nonsymmetric so you'll have to print a mirrored version as well Verify dimensions against the original part and confirm full operation before regular use.
